APC Smart-UPS VT 10kVA 208V w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
APC Smart-UPS VT, 8000 Watts / 10 kVA, Input 208V 3PH / Output 120V, 208V, 208V 3PH , Interface Port DB-9 RS-232, SmartSlot , Extended runtime model
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start-Up Service, User Manual
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Compact three phase power protection with excellent efficiency and hot scalable runtime for small data centers and other business critical applications
Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with Hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure® Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included start-up and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.
Features & Benefits:
| SUVTP10KF2B4S Features | |
| Parallel-capacity capable | Increases total power capacity by using multiple UPSs simultaneously. |
| Parallel-redundant capable | Power the connected equipment with multiple UPSs to increase system redundancy. |
| Availability | |
| Dual mains input | Increases availability by allowing the UPS to be connected to two separate power sources. |
| Scalable runtime | Allows additional run time to be quickly added as needed. |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Automatic internal bypass | Supplies utility power to the connected loads in the event of a UPS overload condition or fault. |
| Battery modules connected in parallel | Delivers higher availability through redundant batteries. |
| Serviceability | |
| Battery replacement without tools | Allows quick, easy battery replacement. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Shippable with modules installed | Enables pre-installation UPS staging and testing and faster installation. |
| Modular design | Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. |
| Manageability | |
| Network manageable | Provides remote management of the UPS over the network. |
| InfraStruXure Manager Compatible | Enables centralized management via the APC InfraStruXure Manager. |
| LCD display | Alpha-Numeric Display which displays system parameters and alarms. |
| Audible alarms | Provides notification of changing utility power and UPS conditions. |
| Programmable frequency | Ensures compatibility with different input frequencies. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| SmartSlot | Customize UPS capabilities with management cards. |
| Total Cost of Ownership | |
| Input power factor correction | Minimizes installation costs by enabling the use of smaller generators and cabling. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Manual maintenance bypass | Reduces installation costs by eliminating the need for an external mechanical bypass. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Safety | |
| Frequency and voltage regulation | Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
Product Views:

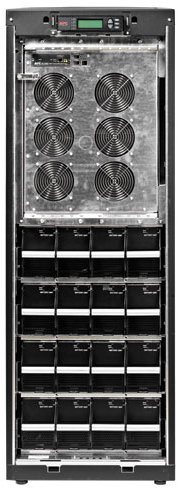

 Front Open View |

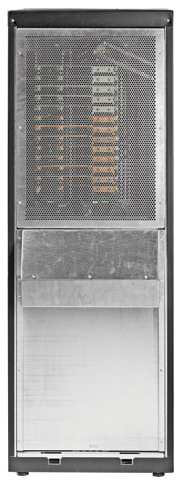

 Rear View |

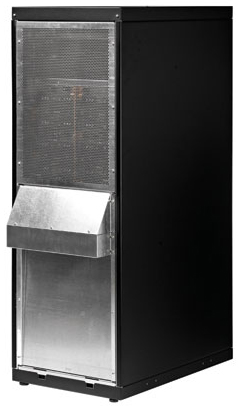

 Rear-Left Angle View |
 Miscellaneous |
Runtime Chart:
Click here to view the Smart-UPS VT Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 8000 Watts / 10 kVA |
| Max Configurable Power | 8000 Watts / 10 kVA |
| Nominal Output Voltage | 120V, 208V, 208V 3PH |
| Output Voltage Distortion | Configurable for 208 and 220V - 3 Phase |
| Efficiency at Full Load | 93.0% |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 57 - 63 Hz for 60 Hz nominal |
| Other Output Voltages | 220 |
| Crest Factor | Unlimited |
| Topology | Double Conversion Online |
| Waveform Type | Sine wave |
| Output Connections | (1) Hard Wire 4-wire (3PH + G) (1) Hard Wire 5-wire (3PH + N + G) (1) Screw Terminals |
| Bypass | Built-in Maintenance Bypass, Built-in Static Bypass |
| Input | |
| Nominal Input Voltage | 208V 3PH |
| Input Frequency | 40 - 70 Hz (auto sensing) |
| Input Connections | Hard Wire 5-wire (3PH + N + G) |
| Input voltage range for main operations | 165 - 240V |
| Other Input Voltages | 220 |
| Maximum Input Current | 27A |
| Input Breaker Capacity | 34.0 A |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 5 hour(s) |
| RBC™ Quantity | 2 |
| Nominal Battery Voltage | +/-192 V (split battery referenced to neutral) |
| End of Discharge Battery Voltage | +/-154 V |
| Extended Run Options | APC Smart-UPS VT 10kVA 208V w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, SmartSlot |
| Pre-Installed SmartSlot™ Cards | AP9631 |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Audible and visible alarms : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Physical | |
| Maximum Height | 59.00 inches (1499 mm) |
| Maximum Width | 20.60 inches (523 mm) |
| Maximum Depth | 32.01 inches (813 mm) |
| Net Weight | 1115.00 lbs. (506.82 kg) |
| Shipping Weight | 1183.00 lbs. (537.73 kg) |
| Shipping Height | 64.70 inches (1643 mm) |
| Shipping Width | 25.60 inches (650 mm) |
| Shipping Depth | 41.80 inches (1062 mm) |
| Color | Black |
| Units per Pallet | 1 |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-3333 feet (0-999.9 meters) |
| Storage Temperature | -58 - 104 °F (-50 - 40 °C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 54.00 dBA |
| Online Thermal Dissipation | 2047.00 BTU/hr |
| Protection Class | NEMA 1 |
| Conformance | |
| Standard Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
Documentation:
Download the APC Smart-UPS VT Data Sheet (PDF).
