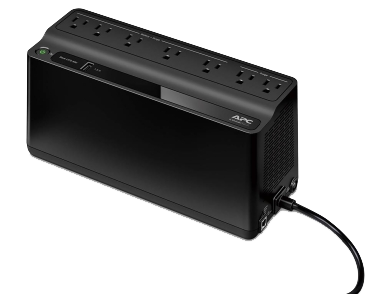

APC Back-UPS Series
Battery Backup & Surge Protector for Electronics and Computers

Peace of mind from the world's most trusted UPS.

The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.

Features & Benefits:

Features:
Battery failure notification	Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Battery-protected and surge-only outlets	Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable	Provides temporary battery power when the utility power is out.
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Dataline Surge Protection	Provides protection of connected equipment from power surges on the data lines.
Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Audible alarms	Provides notification of changing utility power and UPS conditions.
User-replaceable batteries	Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Transformer-block spaced outlets	Protect equipment with input transformer blocks without blocking access to other receptacles.
Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Lifetime data recovery warranty	Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
Battery replacement without tools	Allows quick, easy battery replacement.
LED status indicators	Quickly understand unit and power status with visual indicators.

Runtime Chart:

120V
Watts	50	100	200	300	400	500	600	700	800	Full	Half
VA~	80	160	320	480	640	800	960	1120	1280	Load	Load

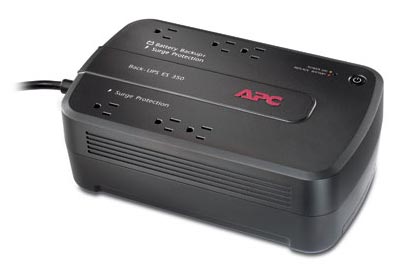

BE350G	24 min	10 min	2 min	-	-	-	-	-	-	2 min (100 Watts)	9 min (200 Watts)

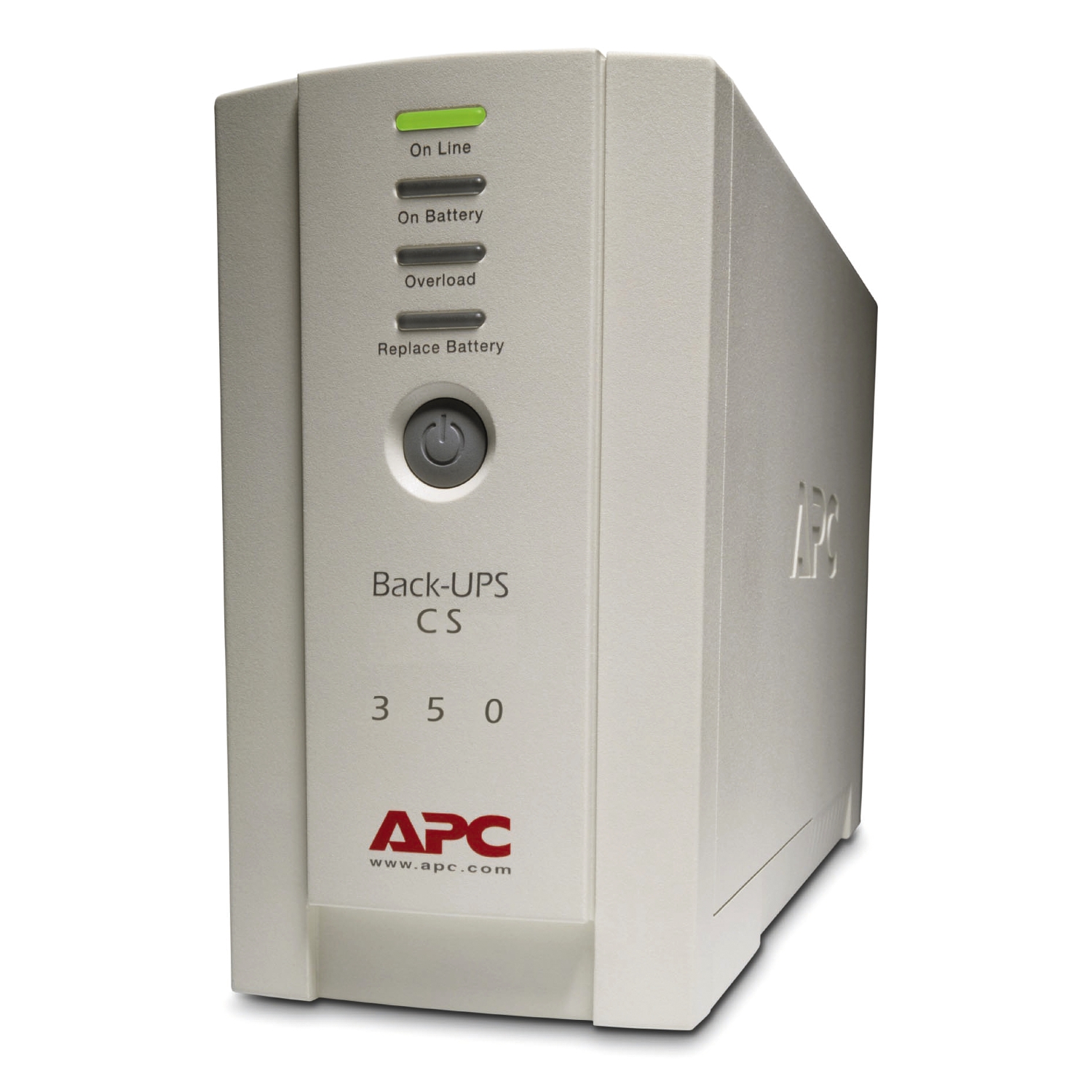

BK350	47 min	19 min	5 min	-	-	-	-	-	-	5 min (210 Watts)	18 min (105 Watts)
BK500	1 hrs 2 mins	26 min	8 min	2 min	-	-	-	-	-	2 min (300 Watts)	14 min (150 Watts)
BK500BLK	1 hrs 2 mins	26 min	8 min	2 min	-	-	-	-	-	2 min (300 Watts)	14 min (150 Watts)
BE550G	1 hrs 5 mins	28 min	10 min	4 min	-	-	-	-	-	3 min (330 Watts)	13 min (165 Watts)
BE650G	1 hrs 27 mins	38 min	15 min	7 min	-	-	-	-	-	4 min (390 Watts)	15 min (195 Watts)
BE750G	1 hrs 25 mins	36 min	14 min	7 min	3 min	-	-	-	-	2 min (450 Watts)	11 min (225 Watts)

---

Legacy Products

• APC Back-UPS HS BH500NET
