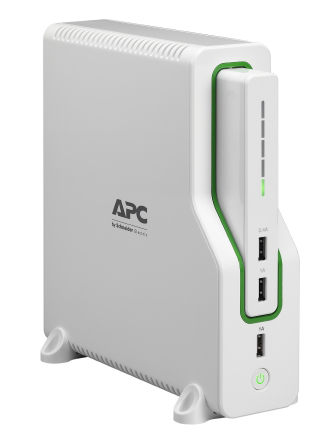

APC Back-UPS Connect 50, 120V, Lithium Ion, Network Backup and Mobile Power Pack
APC Back-UPS Connect, 50 Watts /84 VA, Input 120V /Output 120V

Extended Runtime UPS for Network Gateway Devices

Back-UPS Connect is an innovative UPS product family that is designed to power networking equipment for prolonged periods of time during blackouts. Run a router, modem and other low-power devices for 3 to 5 hours during a power outage. Access to the internet is a critical component of our personal and professional lives. Unfortunately, power outages break our lines of communication for business operations, news and weather updates, and restrict us from contacting friends and family. At APC by Schneider Electric, we understand the network is critical to your everyday life. Back-UPS Connect will keep your network running, even when the power goes out.

Power outages can happen quite often, ranging from brief interruptions to long-lasting storms. When the power is out, your network cannot connect to the internet. This makes it difficult to get in touch with the outside world for personal or work communication. The BGE50ML features a lithium-ion battery pack that provides hours of critical power to your network during outages.

• Get news updates
• Make phone/video calls
• Check email
• Update social media
• Maintain home automation and security systems
• Stream movies
• Continue gaming

The BGE50ML’s lithium ion battery is also a removable mobile power pack (M12USWH), so you can charge your mobile devices on the go. Stay connected throughout life’s journeys with the BackUPS Connect BGE50ML.

• 2+ hours of network backup power keeps you connected to the internet during storms and outages.
• Removable battery pack charges a smartphone five times before needing to recharge itself.
• Convenient mobile charging via three USB ports, including a smart charging port that recognizes connected devices to maximizes charging speed.
• Surge, spike and lightning protection ensures peace of mind.
• Flexible installation for any home or office setup. The BGE50ML includes rotating outlets and versatile feet for wall mounting.

Features & Benefits:

Features
Lithium-ion battery	Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
USB charging ports	Simultaneously charge mobile devices, including smartphones and tablets.
Mobile device compatible	Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.
Pass-through charging	Charge your mobile power pack and connected devices simultaneously.
Removable mobile power pack	Remove the power pack for convenient mobile charging when you're on the go. This compact, portable battery charges a smartphone five times from 0 to 100 percent before it needs to be recharged itself.
Rotating outlets	Flexible installation for any home or office setup.
Smart charging port	A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.
Fast recharge	The removable mobile power pack charges in under 2.5 hours when docked in the base unit, so you always have network or mobile power when you need it.
Adjustable voltage sensitivity	Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Protection
Battery backup and surge protection	Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Serviceability
Simple battery replacement	Increases UPS availability by allowing quick, easy battery replacement.
Resettable circuit breaker	Easy recovery from overloads; no need to replace a fuse.
Manageability
LED status display	Quickly understand unit and power status with visual indicators.

Technical Specifications:

Output
Output Power Capacity	50 Watts / 84 VA
Max Configurable Power	50 Watts / 84 VA
Nominal Output Voltage	120V
Output Frequency (sync to mains)	50/60Hz +/- 3 Hz
Topology	Square
Waveform Type	Stepped approximation to a sinewave

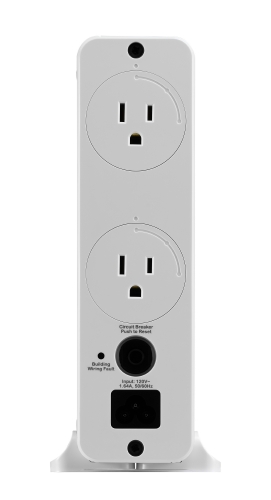

Output Connections	(2) NEMA 5-15R (Battery Backup)
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA 5-15P
Cord Length	5 feet (1.52 meters)
Input voltage range for main operations	92 - 139V
Maximum Input Current	2A
Input Breaker Capacity	4  A
Batteries & Runtime
Battery Type	Li-ion
Typical recharge time	2.50 hour(s)

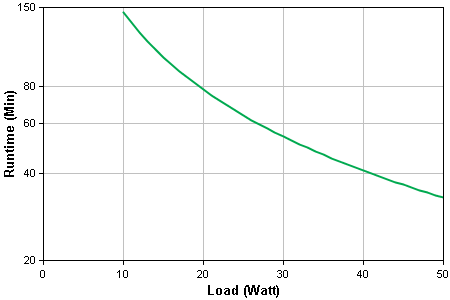

Runtime Graph	Hover over the line on the graph above to view the efficiency at any desired load Curve fit of data measured in accordance with the ENERGY STAR Program Requirements Product Specification for Uninterruptible Power Supplies (UPSs) - Eligibility Criteria Version 1.0. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Control Panel	LED Status display with On Line : On Battery
Surge Protection and Filtering
Surge Energy Rating	340 Joules
Physical
Maximum Height	2.13 inches (54 mm)
Maximum Width	7.72 inches (196 mm)
Maximum Depth	7.01 inches (178 mm)
Net Weight	2.87 lbs. (1.30 kg)
Shipping Weight	3.97 lbs. (1.80 kg)
Shipping Height	2.57 inches (65 mm)
Shipping Width	13.43 inches (341 mm)
Shipping Depth	9.19 inches (233 mm)
Master Carton Weight	8.62 lbs. (3.91 kg)
Color	White
SCC Codes	1073130431409 4
Units per Pallet	80.00
# of Layers per Pallet	4
# of Units per Layer per Pallet	20
Pallet Weight	66.14 lbs. (30.00 kg)
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	32.00 dBA
Conformance
Regulatory Approvals	California (CEC) Battery Charger, cTUVus, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-8, EN61000-4-2, EN61000-4-3, FCC Part 15 Class B, ICES-003, UN 38.3
Standard Warranty	3 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Contains No SVHCs
Battery Directive	Compliant

**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.

Documentation:

Download the APC BGE50ML Datasheet (.PDF)
