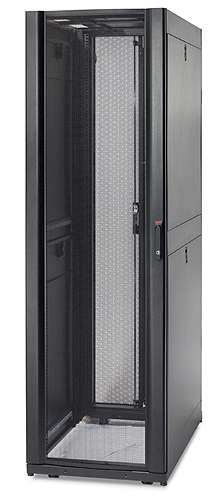

APC NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure
Feature-rich IT enclosures optimized for cable management, power distribution, and airflow management

Overview:

World's most versatile rack enclosure for demanding IT environments

The APC NetShelter SX is the next generation rack enclosure solution influenced by 10 years of customer feedback and addresses current IT market trends for high-density server and networking applications. With a strong focus on cooling, power distribution, cable management and environmental monitoring, the NetShelter SX provides a reliable rack-mounting environment for mission-critical equipment.

Standard enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways.

AR3100SP2: Additional shock packaging for shipping equipment weighing up to 2000lbs/909kg.

Features & Benefits:

Compatibility
Integrated with APC InfraStruXure products	APC cooling, power distribution, and cable management products work seamlessly with the enclosures to provide a complete IT infrastructure support system.
Guaranteed compatibility	Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.
Convenience
Cable Access	Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.
Simple Selection	No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers.
Ventilated	Perforated front and rear doors provide ample ventilation for servers and networking equipment.
Quick release doors	Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
Half-height side panels	Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.
Agility
Rear Cable Management channels	Integrated and adjustable rear channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers.
Adjustable mounting rails	The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. U positions are numbered front and back for rapid installation of equipment.
Split rear doors	Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.
Adjustable leveling feet	Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Enclosures are shipped standard with both leveling feet and castors.
Overhead cable management	Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
Safety
Structural Stability	A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3000 lb (1364 kg) static and 2250 lb (1023 kg) dynamic load ratings.
Integrated electrical grounding	The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Product Views:

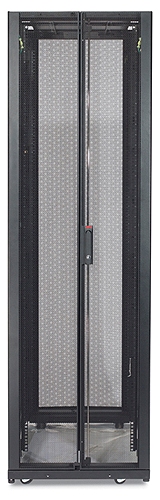

Front Door Open	Rear Door Open
Left Side Open	Both Sides Open
Top View
Top Open
Two NetShelter SX

Technical Specifications:

Physical
Maximum Height	78.39 inches (1991 mm)
Maximum Width	23.62 inches (600 mm)
Maximum Depth	42.13 inches (1070 mm)
Net Weight	275.20 lbs. (125.09 kg)
Net Depth with Stabilizing Feet	50.30 inches (1278 mm)
Shipping Weight	AR3100: 305.20 lbs. (138.72 kg) AR3100SP2: 365.20 lbs. (166.00 kg)
Shipping Height	83.40 inches (2118 mm)
Shipping Width	35.38 inches (899 mm)
Shipping Depth	48.00 inches (1219 mm)
Weight Capacity (static load)	3000.00 lbs. (1363.64 kg)
Weight Capacity (dynamic load)	2250.00 lbs. (1022.73 kg)
Minimum Mounting Depth	7.52 inches (191 mm)
Maximum Mounting Depth	36.02 inches (915 mm)
Rack Height	42U
Color	Black
Units per Pallet	1.00
Vertical Posts	16 gauge
Front Door	16 gauge
Rear Door	18 gauge
Roof	18 gauge
EIA Mounting Rails	14 gauge
Side Panels	18 gauge
Conformance
Regulatory Approvals	EIA-310-D
Standard Warranty	5 years repair or replace
Standards	UL 60950
Environmental Compliance	RoHS
