APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/2 batt mod. exp. to 5, w/PDU & startup
APC Smart-UPS VT, 16 kW / 20 kVA, Input 208V 3PH / Output 120V, 208V, 208V 3PH, Interface Port SmartSlot, Extended runtime model
Includes: Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Compact three phase power protection with excellent efficiency and hot scalable runtime for small data centers and other business critical applications
Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with Hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure® Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included start-up and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.
Features & Benefits:
| SUVTRT20KF2B5S Features | |
| Resettable circuit breakers | Enables a quick recovery from overload events. |
| Field-replaceable power distribution panel | Ensures compatibility with equipment that has different plug types. |
| Multiple cable-entry points | Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks. |
| Locking cabinet | Prevents unauthorized access to the UPS. |
| Availability | |
| Dual mains input | Increases availability by allowing the UPS to be connected to two separate power sources. |
| Scalable runtime | Allows additional run time to be quickly added as needed. |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Automatic internal bypass | Supplies utility power to the connected loads in the event of a UPS overload condition or fault. |
| Battery modules connected in parallel | Delivers higher availability through redundant batteries. |
| Serviceability | |
| Battery replacement without tools | Allows quick, easy battery replacement. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Shippable with modules installed | Enables pre-installation UPS staging and testing and faster installation. |
| Modular design | Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. |
| Manageability | |
| Network manageable | Provides remote management of the UPS over the network. |
| InfraStruXure Manager Compatible | Enables centralized management via the APC InfraStruXure Manager. |
| LCD display | Alpha-Numeric Display which displays system parameters and alarms. |
| Audible alarms | Provides notification of changing utility power and UPS conditions. |
| Programmable frequency | Ensures compatibility with different input frequencies. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| SmartSlot | Customize UPS capabilities with management cards. |
| Total Cost of Ownership | |
| Input power factor correction | Minimizes installation costs by enabling the use of smaller generators and cabling. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Manual maintenance bypass | Reduces installation costs by eliminating the need for an external mechanical bypass. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Safety | |
| Frequency and voltage regulation | Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
Runtime Chart:
Click here to view the Smart-UPS VT Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |||||||||||||
| Output Power Capacity | 16 kW / 20 kVA | ||||||||||||
| Max Configurable Power | 16 kW / 20 kVA | ||||||||||||
| Nominal Output Voltage | 120V, 208V, 208V 3PH | ||||||||||||
| Output Voltage Note | Configurable for 200 : 208 or 220V 3 Phase nominal output voltage | ||||||||||||
| Efficiency at Full Load | 93.0% | ||||||||||||
| Output Voltage Distortion | Less than 5% at full load | ||||||||||||
| Output Frequency (sync to mains) | 57 - 63 Hz for 60 Hz nominal | ||||||||||||
| Other Output Voltages | 220 | ||||||||||||
| Crest Factor | Unlimited | ||||||||||||
| Topology | Double Conversion Online | ||||||||||||
| Waveform Type | Sine wave | ||||||||||||
| Output Connections | (1) Hard Wire 5-wire (3PH + N + G) (5) NEMA L21-20 |
||||||||||||
| Bypass | Built-in Maintenance Bypass, Built-in Static Bypass | ||||||||||||
| Input | |||||||||||||
| Nominal Input Voltage | 208V 3PH | ||||||||||||
| Input Frequency | 40 - 70 Hz (auto sensing) | ||||||||||||
| Input Connections | Hard Wire 5-wire (3PH + N + G) | ||||||||||||
| Input voltage range for main operations | 177 - 239 (208V)V | ||||||||||||
| Other Input Voltages | 220 | ||||||||||||
| Batteries & Runtime | |||||||||||||
| Battery Type | VRLA | ||||||||||||
| Included Battery Modules | 2 | ||||||||||||
| Available Battery Slots | 2 | ||||||||||||
| Replacement Battery | SYBT4 | ||||||||||||
| RBC™ Quantity | 2 | ||||||||||||
| Extended Run Options | APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/2 batt mod. exp. to 5, w/PDU & startup | ||||||||||||
| Energy Use/Efficiency | |||||||||||||

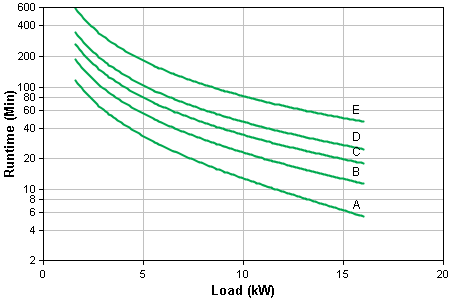

Runtime Graph
|
 Hover over the line on the graph above to view the runtime at any desired load Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output. |
||||||||||||
| Communications & Management | |||||||||||||
| Interface Port(s) | SmartSlot | ||||||||||||
| Pre-Installed SmartSlot™ Cards | AP9631 | ||||||||||||
| Control panel | Multi-function LCD status and control console | ||||||||||||
| Audible Alarm | Audible and visible alarms : configurable delays | ||||||||||||
| Emergency Power Off (EPO) | Optional | ||||||||||||
| Physical | |||||||||||||
| Maximum Height | 78.54 inches (1995 mm) | ||||||||||||
| Maximum Width | 23.62 inches (600 mm) | ||||||||||||
| Maximum Depth | 42.32 inches (1075 mm) | ||||||||||||
| Net Weight | 1690.00 lbs. (768.18 kg) | ||||||||||||
| Shipping Weight | 1767.00 lbs. (803.18 kg) | ||||||||||||
| Shipping Height | 78.54 inches (1995 mm) | ||||||||||||
| Shipping Width | 23.62 inches (600 mm) | ||||||||||||
| Shipping Depth | 42.32 inches (1075 mm) | ||||||||||||
| Color | Black | ||||||||||||
| Units per Pallet | 1 | ||||||||||||
| Environmental | |||||||||||||
| Operating Environment | 32 - 104°F (0 - 40°C) | ||||||||||||
| Operating Relative Humidity | 0 - 95% | ||||||||||||
| Operating Elevation | 0-3333 feet (0-999.9 meters) | ||||||||||||
| Storage Temperature | -58 - 104 °F (-50 - 40 °C) | ||||||||||||
| Storage Relative Humidity | 0 - 95% | ||||||||||||
| Storage Elevation | 0-50000 feet (0-15000 meters) | ||||||||||||
| Audible noise at 1 meter from surface of unit | 58.00 dBA | ||||||||||||
| Online Thermal Dissipation | 4238.00 BTU/hr | ||||||||||||
| Protection Class | NEMA 1 | ||||||||||||
| Conformance | |||||||||||||
| Regulatory Approvals | cUL Listed, ISO 14001, ISO 9001, UL 1778 | ||||||||||||
| Standard Warranty | 1 year repair or replace | ||||||||||||
Documentation:
Download the APC Smart-UPS VT Data Sheet (PDF).
