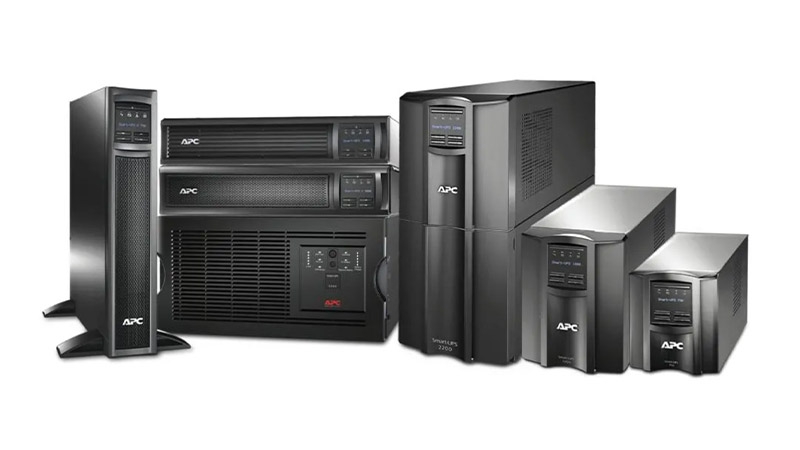

APC Smart-UPS Series
750-5000VA Tower, 750-5000VA Rack Mount 1U-5U
Performance power protection for servers, and voice and data networks.
Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
| Smart-UPS Series - 120V Output / 120V Input | |||
| SMT750 - APC Smart-UPS 750VA LCD 120V
|
SMT1500C - APC Smart-UPS 1500VA LCD 120V with SmartConnect
|
||
| Smart-UPS Series - 120V Output / 120V Input - Rackmount | |||
| SMT750RM2U - APC Smart-ups 750VA LCD RM 2U 120V
|
SMT750R2-NMC - APC Smart-UPS 750VA LCD RM 120V with Network Management Card
|
SMT2200RM2U - APC Smart-UPS 2200VA RM 2U LCD 120V
|
|
| SMT3000RM2U - APC Smart-UPS 3000VA RM 2U LCD 120V
|
SUA750RM1U - APC Smart-UPS 750VA USB & Serial RM 1U 120V
|
|
|
| Smart-UPS Series -208V Input 120/120V Output | |||
| SUA5000R5TXFMR - APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
|
|||
| Smart-UPS Series - 208V Output / 208V Input | |||
| SMT3000RM2TU - APC Smart-UPS, 2700 Watts / 3000 VA, Input 208V / Output 208V , Interface Port USB , Rack Height 2 U
|
SUA5000RMT5U - APC Smart-UPS, 4000 Watts / 5000 VA,Input 208V / Output 208V, Interface Port DB-9 RS-232, SmartSlot, Rack Height 5 U
|
||
Features & Benefits:
| Availability | |
| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Manageability | |
| Network manageable | Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA). |
| SmartSlot | Customize UPS capabilities with management cards. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Enables quick understanding and response to visual indicators showing UPS status. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Adjustable voltage-transfer points | Saves battery power and helps extend battery life. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here to view the Smart-UPS Runtime Chart 2200 Models and Below. (pop-up window)
Click here to view the Smart-UPS Runtime Chart 3000 Models and Above. (pop-up window)
