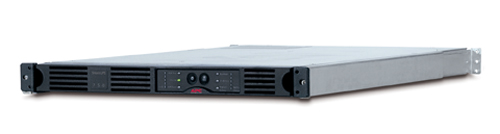

APC Smart-UPS 750VA USB & Serial RM 1U 120V
APC Smart-UPS, 750VA/480W, Input 120V/Output 120V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 1U

Over 20 million units sold - the UPS you can trust

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Features & Benefits:

Runtime Chart:

Click here to view the Smart-UPS Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity	480 Watts / 750 VA
Max Configurable Power	480 Watts / 750 VA
Nominal Output Voltage	120V
Output Voltage Distortion	Less than 5% at full load
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor	up to 5 : 1
Waveform Type	Sine wave
Output Connections	(4) NEMA 5-15R
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA L5-30P
Cord Length	8 feet (2.44 meters)
Input voltage range for main operations	82 - 144V
Input voltage adjustable range for mains operation	75 - 154V
Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	2 hour(s)
Replacement battery cartridge	RBC34
RBC™ Quantity	1
Typical Backup Time at Half Load	23.6 minutes (240 Watts)
Typical Backup Time at Full Load	7.1 minutes (480 Watts)
Runtime Chart	Smart-UPS
Communications & Management
Interface Port(s)	DB-9 RS-232, SmartSlot, USB
Available SmartSlot™ Interface Quantity	1
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional
Surge Protection and Filtering
Surge Energy Rating	480 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	1.72 inches (44 mm)
Maximum Width	17.00 inches (432 mm)
Maximum Depth	26.00 inches (660 mm)
Net Weight	48.00 lbs. (21.82 kg)
Shipping Weight	56.00 lbs. (25.45 kg)
Shipping Height	7.50 inches (191 mm)
Shipping Width	22.00 inches (559 mm)
Shipping Depth	30.50 inches (775 mm)
Color	Black
Units per Pallet	10.00
Rack Height	1U
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	130.00 BTU/hr
Conformance
Regulatory Approvals	FCC Part 15 Class A,UL 1778
Standard Warranty	2 years repair or replace
Equipment protection policy	Lifetime: $150,000

Documentation:

Download the APC SUA750RM1U Data Sheet (PDF).
