APC Smart-UPS VT 15kVA 208V w/2 Batt Mod. , Start-Up 5X8, Int Maint Bypass, Parallel Capable
APC Smart-UPS VT, 12 kW / 15 kVA, Input 208V 3PH / Output 120V, 208V, 208V 3PH , Interface Port DB-9 RS-232, Smart-Slot , Extended runtime model

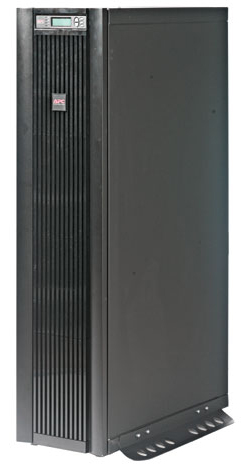

APC Smart-UPS VT 15kVA 208V Tower

Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual

Sorry, this product is no longer available, please contact us for a replacement.


Compact three phase power protection with excellent efficiency and hot scalable runtime for small data centers and other business critical applications

Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with Hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure® Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included start-up and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.

Features & Benefits:

SUVTP15KF2B2S Features
Parallel-capacity capable Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable Power the connected equipment with multiple UPSs to increase system redundancy.
Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime Allows additional run time to be quickly added as needed.
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel Delivers higher availability through redundant batteries.
Battery replacement without tools Allows quick, easy battery replacement.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Shippable with modules installed Enables pre-installation UPS staging and testing and faster installation.
Modular design Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Network manageable Provides remote management of the UPS over the network.
InfraStruXure Manager Compatible Enables centralized management via the APC InfraStruXure Manager.
LCD display Alpha-Numeric Display which displays system parameters and alarms.
Audible alarms Provides notification of changing utility power and UPS conditions.
Programmable frequency Ensures compatibility with different input frequencies.
LED status indicators Quickly understand unit and power status with visual indicators.
SmartSlot Customize UPS capabilities with management cards.
Total Cost of Ownership
Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Manual maintenance bypass Reduces installation costs by eliminating the need for an external mechanical bypass.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Cold-start capable Provides temporary battery power when the utility power is out.

Product Views:

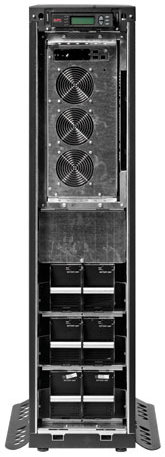

Front Open View
Front Open View

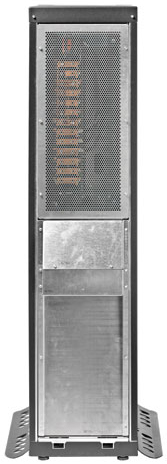

Rear View
Rear View

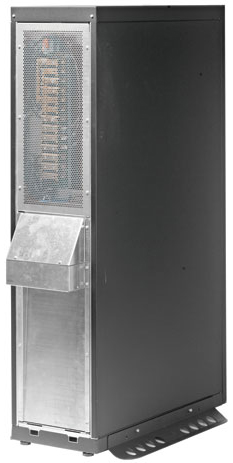

Rear-Left Angle View
Rear-Left Angle View

Technical Specifications:

Output Power Capacity 12 kW / 15 kVA
Max Configurable Power 12 kW / 15 kVA
Nominal Output Voltage 120V, 208V, 208V 3PH
Output Voltage Distortion Configurable for 208 and 220V - 3 Phase
Efficiency at Full Load 93.0%
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal
Other Output Voltages 220
Crest Factor Unlimited
Topology Double Conversion Online
Waveform Type Sine wave
Output Connections (1) Hard Wire 5-wire (3PH + N + G)
(1) Screw Terminals
Bypass Built-in Maintenance Bypass, Built-in Static Bypass
Nominal Input Voltage 208V 3PH
Input Frequency 40 - 70 Hz (auto sensing)
Input Connections Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations 165 - 240V
Other Input Voltages 220
Maximum Input Current 40A
Input Breaker Capacity 60.0  A
Batteries & Runtime
Battery Type VRLA
Included Battery Modules 2
Typical recharge time 5 hour(s)
RBC™ Quantity 2
Nominal Battery Voltage +/-192 V (split battery referenced to neutral)
End of Discharge Battery Voltage +/-154 V
Extended Run Options APC Smart-UPS VT 15kVA 208V w/2 Batt Mod. , Start-Up 5X8, Int Maint Bypass, Parallel Capable

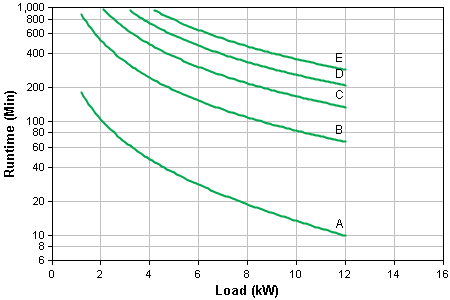

Runtime Graph
Curve Part Number(s)
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load

Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output.

Communications & Management
Interface Port(s) DB-9 RS-232, SmartSlot
Pre-Installed SmartSlot™ Cards AP9631
Control panel Multi-function LCD status and control console
Audible Alarm Audible and visible alarms : configurable delays
Emergency Power Off (EPO) Yes
Maximum Height 59.00 inches (1499 mm)
Maximum Width 14.00 inches (356 mm)
Maximum Depth 32.01 inches (813 mm)
Net Weight 873.00 lbs. (396.82 kg)
Shipping Weight 942.00 lbs. (428.18 kg)
Shipping Height 64.70 inches (1643 mm)
Shipping Width 25.60 inches (650 mm)
Shipping Depth 41.80 inches (1062 mm)
Color Black
Units per Pallet 1
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-3333 feet (0-999.9 meters)
Storage Temperature -58 - 104 °F (-50 - 40 °C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 54.00 dBA
Online Thermal Dissipation 3276.00 BTU/hr
Protection Class NEMA 1
Regulatory Approvals cUL Recognized, ISO 14001, ISO 9001, UL 1778
Standard Warranty 1 year repair or replace, Start-Up Service
