APC Smart-UPS XL 1500VA Rack/Tower LCD 120V
APC Smart-UPS, 1200 Watts / 1500 VA,Input 120V / Output 120V, Extended runtime model, Rack Height 2U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Sorry, this product is no longer available, please contact us for a replacement.
Over 10 million currently installed - the one you can trust
APC Smart-UPS® XL protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. Customers can configure up to 10 matching battery packs for runtimes exceeding 24 hours, if needed. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance performance. . Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.
Features & Benefits:
| Availability | |
| Boost and Trim Automatic Voltage Regulation (AVR) | Provides protection of connected equipment from power surges on the data lines. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Manageability | |
| Network manageable | Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA). |
| SmartSlot | Customize UPS capabilities with management cards. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Enables quick understanding and response to visual indicators showing UPS status. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Plug-and-Play external batteries | Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. |
| Adjustable voltage-transfer points | Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here for APC Smart-Ups XL Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 1200 Watts / 1500 VA |
| Nominal Output Voltage | 120V |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (sync to mains) | 47 - 63 Hz |
| Crest Factor | 3 : 1 |
| Waveform Type | Sine wave |
| Output Connections |  (8) NEMA 5-15R |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections |  NEMA 5-15P |
| Cord Length | 8 feet (2.44 meters) |
| Input voltage range for main operations | 82 - 143V |
| Input voltage adjustable range for mains operation | 75 - 154V |
| Maximum Input Current | 12A |
| Input Breaker Capacity | 20A |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3 hour(s) |
| RBC™ Quantity | 1 |

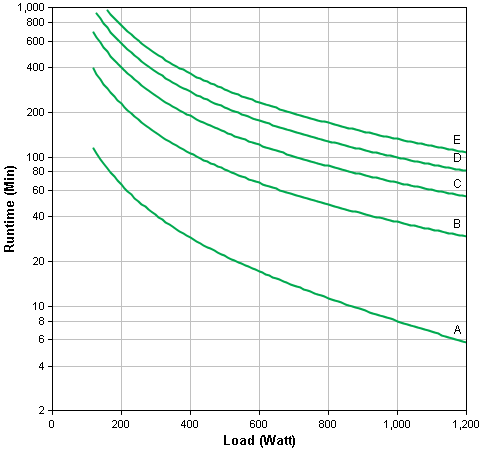

| Runtime Graph
A: SMX1500RM2U |
Hover over the line on the graph above to view the runtime at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |

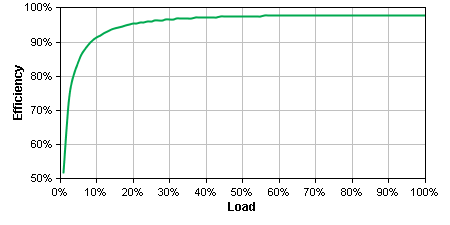

| Energy Use/Efficiency | |
Hover over the line on the graph above to view the efficiency at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
|
| Communications & Management | |
| Available SmartSlot™ Interface Quantity | 1 |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
| Surge Energy Rating | 600 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 3.50 inches (89 mm) |
| Maximum Width | 17.00 inches (432 mm) |
| Maximum Depth | 19.80 inches (503 mm) |
| Net Weight | 54.60 lbs. (24.82 kg) |
| Shipping Weight | 66.00 lbs. (30.00 kg) |
| Shipping Height | 9.70 inches (246 mm) |
| Shipping Width | 23.20 inches (589 mm) |
| Shipping Depth | 24.40 inches (620 mm) |
| Color | Black |
| Units per Pallet | 16.00 |
| Rack Height | 2U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 40.00 dBA |
| Online Thermal Dissipation | 133.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | cUL Listed, UL 1778 |
| Standard Warranty | 3 years repair or replace (excluding battery) and 2 year for battery |
| Equipment protection policy | Lifetime: $150,000 |
| Environmental Compliance | RoHS 7b Exemption, REACH: Contains No SVHCs |
