APC InfraStruXure® Central Standard
InfraStruXure Central Standard scales up to 2,025 devices and 125 surveillance cameras.

Features & Benefits:

AP9470 Features:

Features:
Encrypted communications	128 Bit, SSL encrypted communications between client and server, as well as encrypted user IDs and passwords stored on the server to help protect your resources
Custom mapping	Custom backgrounds, unique user-assignable icons, and drag-and-drop device placement make it easy to identify problem devices at a glance, minimizing downtime, errors, and cost.
Capacity Manager add-on application	Planning and optimizing actual power, cooling and rack capacities via shared data center model, enabling efficient equipment provisioning and right-sizing of your data center.
Integrated data storage	InfraStruXure Central ships with internal storage for data and video collection. Additional storage can easily be made available using the built-in Network Attached Storage server support for long-term storage and archiving.
Centralized Management	Simplify management of the physical infrastructure using a centralized repository accessible from anywhere on the network through a powerful and easy-to-use console application.
Change Manager add-on application	Easily track and execute moves, adds and changes of equipment in the data center via the shared data center model.
Custom reporting	Create, save and schedule user-defined reports for ease of data collection, distribution and analysis.
Alarm filters	Customize the user interface to display devices in critical, warning or normal device statuses.
Mass firmware update	Decrease set-up time and complexity of managed devices by simultaneously upgrading firmware for multiple APC devices.
Unified console	Customizable Windows and Linux client application enables instant access to InfraStruXure Central application from anywhere on the network.
Private networking	Reduce IP addresses needed on the public network to manage devices, by placing them on an isolated secure network.
Surveillance add-on application	Enhance visibility of your critical assets with physical threat management to monitor and record all activity in secured areas. A centralized repository allows the user to review, search and tag surveillance events for future needs.
Centralized Alert Repository	Access historical alerts from several appliances through one central database. Sort alerts by type, date, appliance, and/or device group.
Extendable architecture	Available node and application license keys extend the capabilities of the platform allowing it to grow to meet changing business needs.
Remote monitoring support	Web-based service that serves as a second set of eyes into the health of a company's physical infrastructure. Experienced professionals work non-stop to provide 24-hour monitoring and to help diagnose problems before they become critical.
Multi-vendor device support	Extensive multi-vendor support for monitoring networked SNMP devices. Enable visibility of existing SNMP devices through threshold alert notifications, data trending and reporting.
Customizable user access	Define user access and viewing capabilities to individual groups. Control access to devices by administrator-defined user accounts. Additional user access can be managed by using the built-in LDAP and Active Directory Support.
Fault notification	Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime. Receive alerts via mobile phones (SMS), Web applications (HTTP Post), and e-mail.
Auto-discovery	Reduces the time needed to install and deploy physical infrastructure devices by automatically detecting manageable devices on your network.
Graphical trending analysis	Access current and historic data for any device or group of devices. Plot and graph multiple data points in a logical correlation to visualize potential hazardous trends.
Free text search	Quickly locate devices and alerts through the free search field.
Real-time monitoring	Immediate visibility to your entire physical infrastructure through centralized, real-time device monitoring and notification enabling quick assessment of events as they occur.

InfraStruXure Central Features & Benefits:

Manageability:
Centralized Management	Simplify management of the physical infrastructure using a centralized repository accessible from anywhere on the network through a powerful and easy-to-use console application.
Real-time monitoring	Immediate visibility to your entire physical infrastructure through centralized, real-time device monitoring and notification enabling quick assessment of events as they occur.
Fault notification	Immediate visibility to your entire physical infrastructure through centralized, real-time device monitoring and notification enabling quick assessment of events as they occur.
Multi-vendor device support	Extensive multi-vendor support for monitoring networked SNMP devices. Enable visibility of existing SNMP devices through threshold alert notifications, data trending and reporting.
Unified console	Customizable Windows and Linux client application enables instant access to InfraStruXure Central application from anywhere on the network.
Free text search	Quickly locate devices and alerts through the free search field.
Alarm filters	Customize the user interface to display devices in critical, warning or normal device statuses.
Availability:
Graphical trending analysis	Access current and historic data for any device or group of devices. Plot and graph multiple data points in a logical correlation to visualize potential hazardous trends.
Custom reporting	Create, save and schedule user-defined reports for ease of data collection, distribution and analysis.
Centralized Alert Repository	Access historical alerts from several appliances through one central database. Sort alerts by type, date, appliance, and/or device group.
Integrated data storage	InfraStruXure Central ships with internal storage for data and video collection. Additional storage can easily be made available using the built-in Network Attached Storage server support for long-term storage and archiving.
Agility:
Auto-discovery	Reduces the time needed to install and deploy physical infrastructure devices by automatically detecting manageable devices on your network.
Custom mapping	Custom backgrounds, unique user-assignable icons, and drag-and-drop device placement make it easy to identify problem devices at a glance, minimizing downtime, errors, and cost.
Mass firmware update	Decrease set-up time and complexity of managed devices by simultaneously upgrading firmware for multiple APC devices.
Private networking	Reduce IP addresses needed on the public network to manage devices, by placing them on an isolated secure network.
Advanced device grouping	Define user access and viewing capabilities to individual groups. Control access to devices by administrator-defined user accounts. Additional user access can be managed by using the built-in LDAP and Active Directory Support.
Adaptability:
Extendable architecture	Available node and application license keys extend the capabilities of the platform allowing it to grow to meet changing business needs.
Change Manager add-on application	Easily track and execute moves, adds and changes of equipment in the data center via the shared data center model.
Capacity Manager add-on application	Planning and optimizing actual power, cooling and rack capacities via shared data center model, enabling efficient equipment provisioning and right-sizing of your data center.
Surveillance add-on application	Enhance visibility of your critical assets with physical threat management to monitor and record all activity in secured areas. A centralized repository allows the user to review, search and tag surveillance events for future needs.
Protection:
Customizable user access	Define user access and viewing capabilities to individual groups. Control access to devices by administrator-defined user accounts. Additional user access can be managed by using the built-in LDAP and Active Directory Support.
Encrypted communications	128 Bit, SSL encrypted communications between client and server, as well as encrypted user IDs and passwords stored on the server to help protect your resources
Remote monitoring support	Web-based service that serves as a second set of eyes into the health of a company's physical infrastructure. Experienced professionals work non-stop to provide 24-hour monitoring and to help diagnose problems before they become critical.

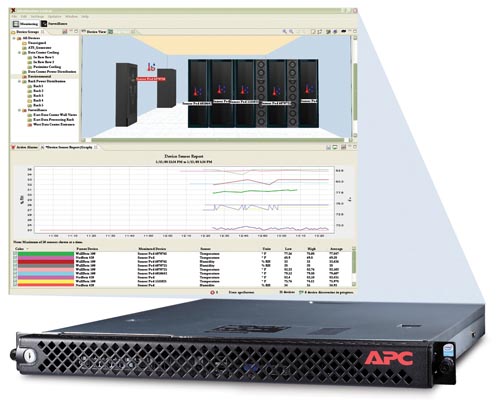

Product Views:

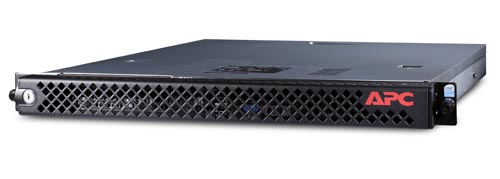

InfraStruXure Central Standard

InfraStruXure Central Standard v5.0 scales up to 2,025 devices and 125 surveillance cameras. It supports capacity management up to 100 racks and change management up to 5,000 IT assets.

Includes: 25-Node license key, CD with software, Installation guide, Server appliance, User Manual

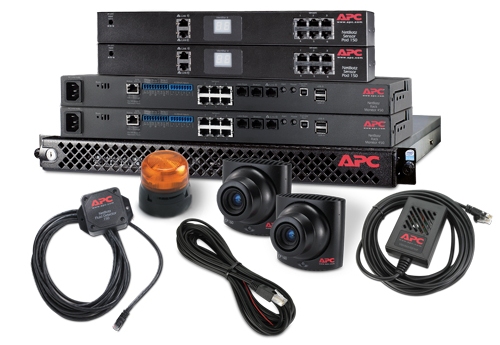

InfraStruXure Central Standard Management Pack:

InfraStruXure Central Standard Management Pack provides a complete, surveillance, environmental, and physical infrastructure monitoring solution.

Includes: 2 NetBotz Rack Monitor 450, 2 NetBotz Camera Pod 160, 2 NetBotz Rack Sensor Pod 150, 1 NetBotz Dry Contact Cable - 15 ft. , 1 NetBotz Vibration Sensor - 12 ft. , 1 Beacon, 1 InfraStruXure® Central Standard appliance with 25-Node License, 1 InfraStruXure® Central Standard Software Support Contract.

Technical Specifications:

General
Operating system	Red Hat Enterprise Linux 5.0,Windows 2000 Server
On-Board RAM and Data Storage	2GB / 250GB available for data storage
Communications & Management
Protocols	DNS, HTTP, HTTPS, SMS, SMTP, SSL, TCP/IP
Network Interface Connections	RJ-45 10/100/1000 Base-T
Physical
Net Weight	21 lbs. (9.55 kg)
Maximum Height	1.75 inches (44 mm)
Maximum Width	19 inches (483 mm)
Maximum Depth	19 inches (483 mm)
Environmental
Operating Environment	50 - 95°F (10 - 35°C)
Storage Temperature	-31 - 140°F (-35 - 60°C)
Operating Relative Humidity	5 - 90%
Storage Relative Humidity	5 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Elevation	0-30000 feet (0-9000 meters)

Compare Models:

Specification:	InfraStruXure Central Basic	InfraStruXure Central Standard
Device Support (1 node = 1 IP address)	Up to 525 devices	Up to 2,025 devices
NetBotz Appliance Surveillance Support	Up to 15 appliances	Up to 125 appliances
Capacity Manager Support	Up to 20 racks	Up to 100 racks
Change Manager Support	Up to 1,000 IT Assets	Up to 5,000 IT Assets
Multi-vendor SNMP Support	Yes	Yes
Product
Housing	Rack-Mount	Rack-Mount
Dimensions	1¾ “H / 17½ “W (19”W with Rack-Mounts) / 21 1/2”D	1¾ “H / 17½ “W (19”W with Rack-Mounts) / 21 1/2”D
Case Type	19” 1U Rack-Mount	19” 1U Rack-Mount
Power Supply	AC 100-240V 60/50Hz 4.0-2.5Amp 345W	AC 100-240V 60/50Hz 4.0-2.5Amp 345W
Client System & Web Brower Prerequisites
Operating System	Microsoft® Windows® 2000 SP4, XP SP2, Server 2003, Vista or Red Hat Enterprise Linux 5.x (32-bit platforms only)	Microsoft® Windows® 2000 SP4, XP SP2, Server 2003, Vista or Red Hat Enterprise Linux 5.x (32-bit platforms only)
CPU Speed	1 GHz or better AMD/Intel Processor	1 GHz or better AMD/Intel Processor
System Memory	512MB RAM	512MB RAM
Operational Environment	Operating Temperature 10° to 35° C (50° F to 95° F); Non-operating Temperature -40° to 70° C (-40° F to 158° F); Operating Relative Humidity 8% to 90% (non-condensing); Non-operating Relative Humidity 5% to 95% (non-condensing)	Operating Temperature 10° to 35° C (50° F to 95° F); Non-operating Temperature -40° to 70° C (-40° F to 158° F); Operating Relative Humidity 8% to 90% (non-condensing); Non-operating Relative Humidity 5% to 95% (non-condensing)
Screen Resolution	1024 x 768 recommended	1024 x 768 recommended
Browser Requirements	The browser must be JavaScript® enabled, Mozilla Firefox® version 1.5.0.6 or higher, Netscape Navigator version 8.2, Microsoft Internet Explorer® version 7.0	The browser must be JavaScript® enabled, Mozilla Firefox® version 1.5.0.6 or higher, Netscape Navigator version 8.2, Microsoft Internet Explorer® version 7.0
Communications & Storage
On-board RAM & Data Storage	1GB/160GB available for data storage	2GB/250GB available for data storage
Protocols	DNS, HTTP, HTTPS, SMS, SMTP, SSL, TCP/IP	DNS, HTTP, HTTPS, SMS, SMTP, SSL, TCP/IP
Network Interface Connections	RJ-45 10/100/1000 Base-T	RJ-45 10/100/1000 Base-T

Documentation:

Download the APC NetBotz InfraStruXure Central DataSheet (PDF).
