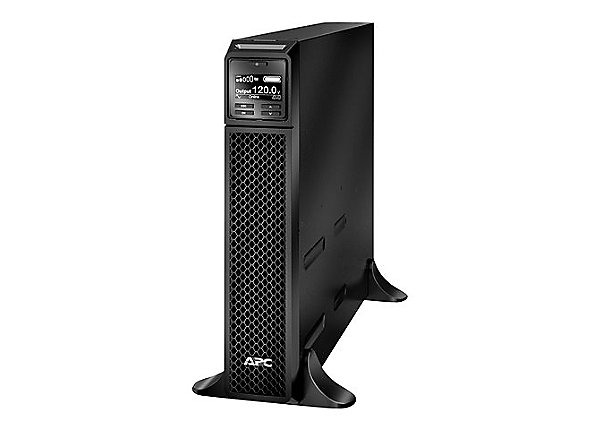

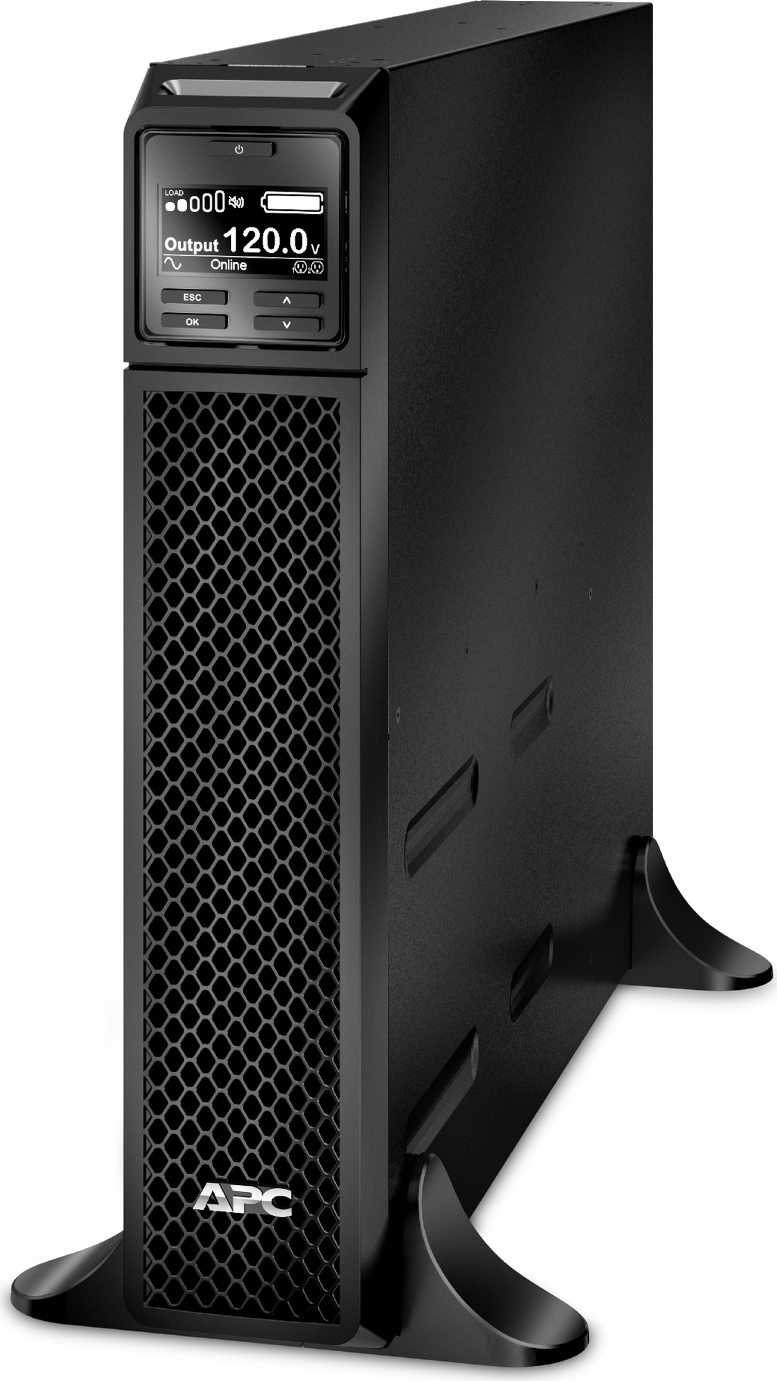

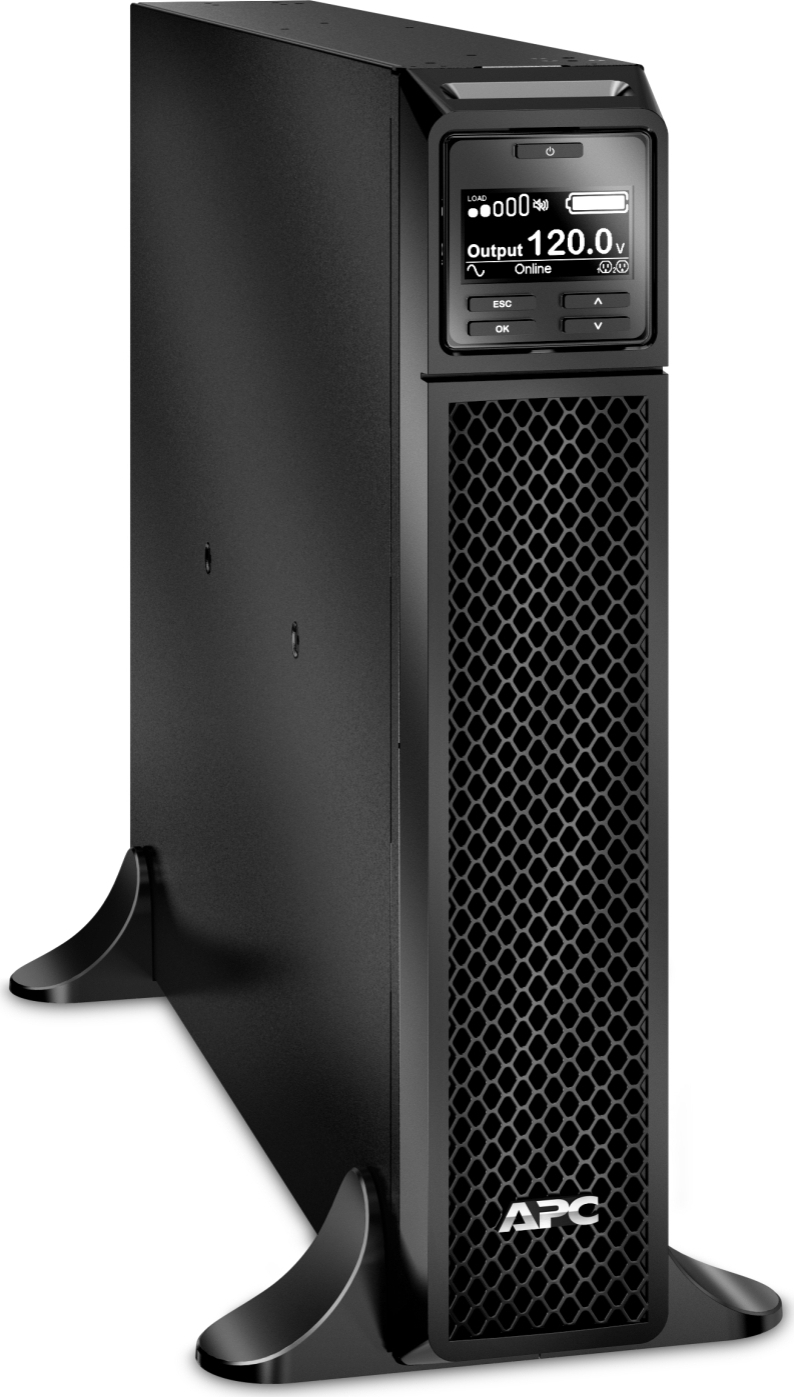

APC Smart-UPS SRT 2200VA 120V
High density, double-conversion on-line power protection with scalable runtime

APC Smart-UPS SRT 2200VA 120V

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Battery failure notification	Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode	Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

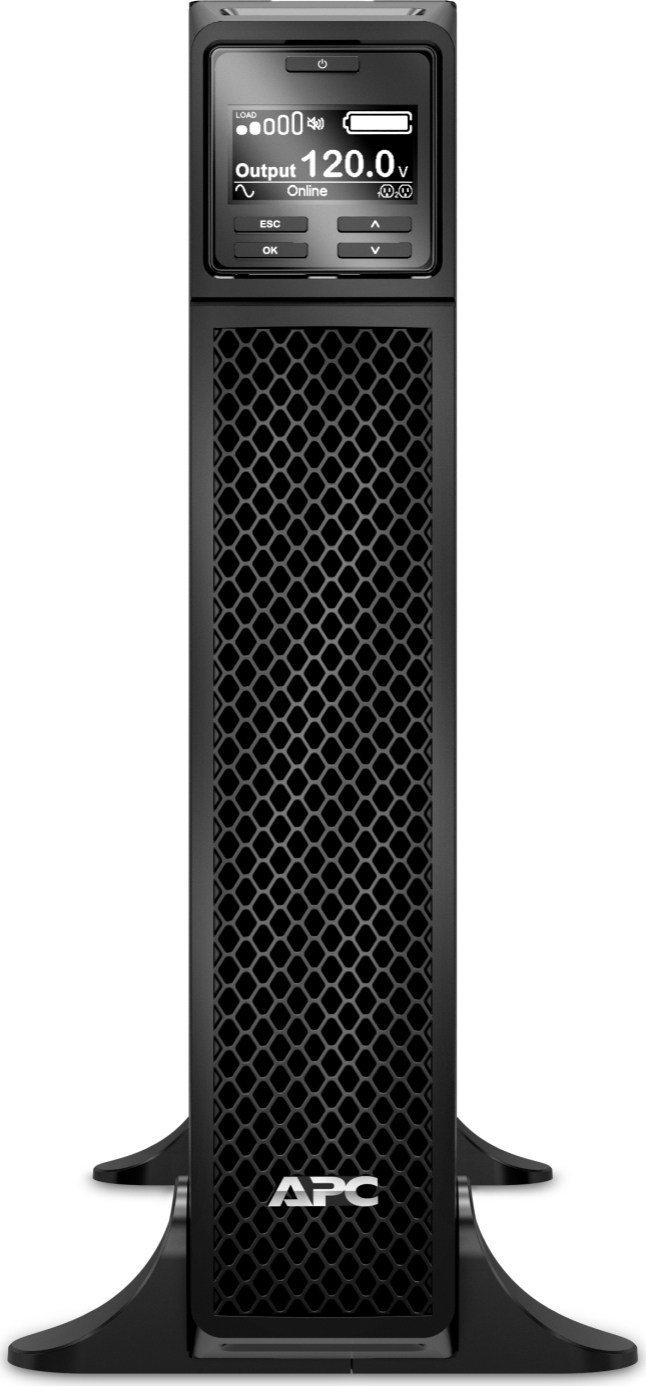

LCD graphics display	Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible	Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS TM On-Line provides high-density, double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 1 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

The included PowerChute TM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family helps to provide value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features & Benefits:

Marketing Features

Peace of mind that comes with full equipment compatibility and reliability of a leader	Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data protected and available.	Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management.	Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote accessibility.	Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Manageability

InfraStruXure Manager Compatible	Enables centralized management via the APC InfraStruXure Manager.
SmartSlot	Customize UPS capabilities with management cards.
Network manageable	Provides remote power management of the UPS over the network.
LED status indicators	Quickly understand unit and power status with visual indicators.
Serial connectivity	Provides management of the UPS via a serial port.

Availability

Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown	Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging	Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic internal bypass	Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime	Allows additional run time to be quickly added as needed.

Protection

Power conditioning	Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction	Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible	Ensures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capable	Provides temporary battery power when the utility power is out.
Resettable circuit breaker	Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Frequency and voltage regulation	Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Serviceability

Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
User-replaceable batteries	Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Predicitive failure notification	Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Audible alarms	Provides notification of changing utility power and UPS power conditions

Adaptability

Plug-and-Play external batteries	Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible	Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware	Install maintenance releases of firmware remotely using FTP.

Technical Specifications:

Output

• Output power capacity
  1.8 KWatts / 2.2 kVA
• Max Configurable Power (Watts)
  1.8 KWatts / 2.2 kVA
• Nominal Output Voltage
  120V
• Output Voltage Distortion
  Less than 2%
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave

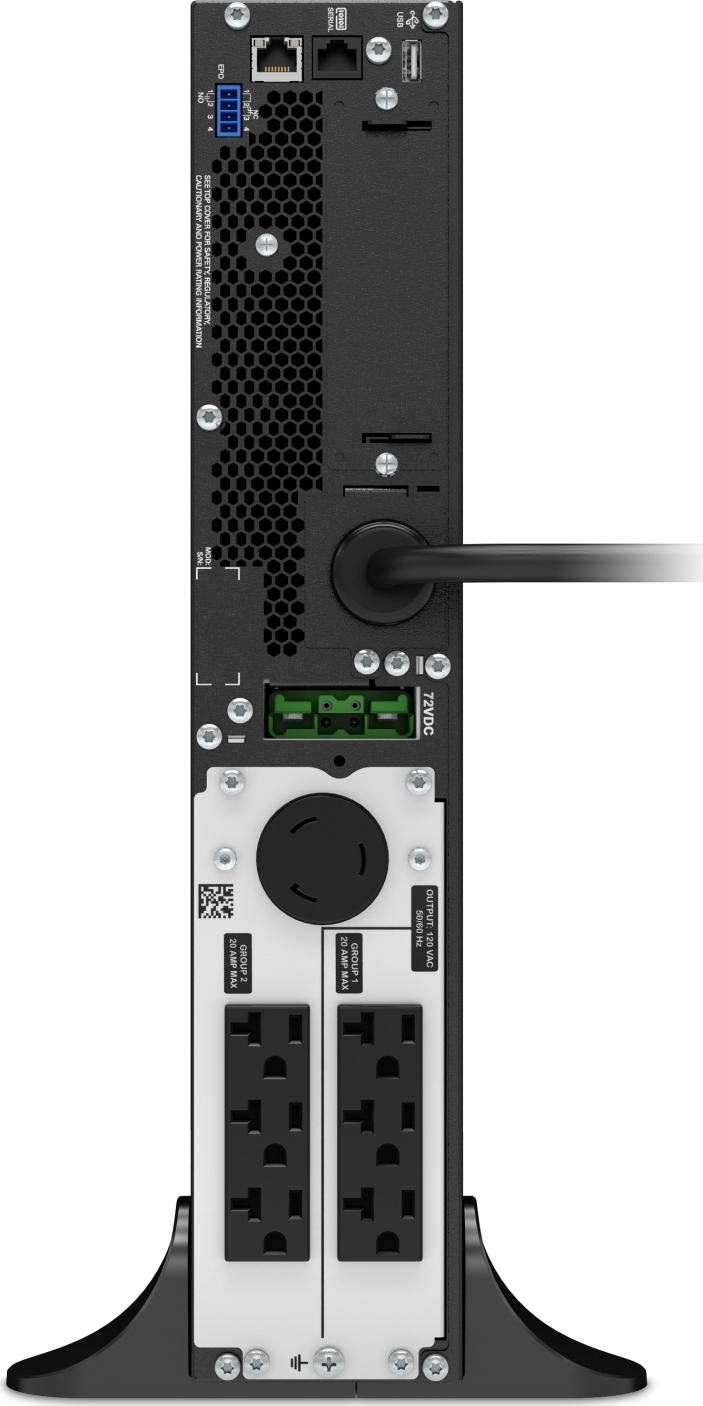

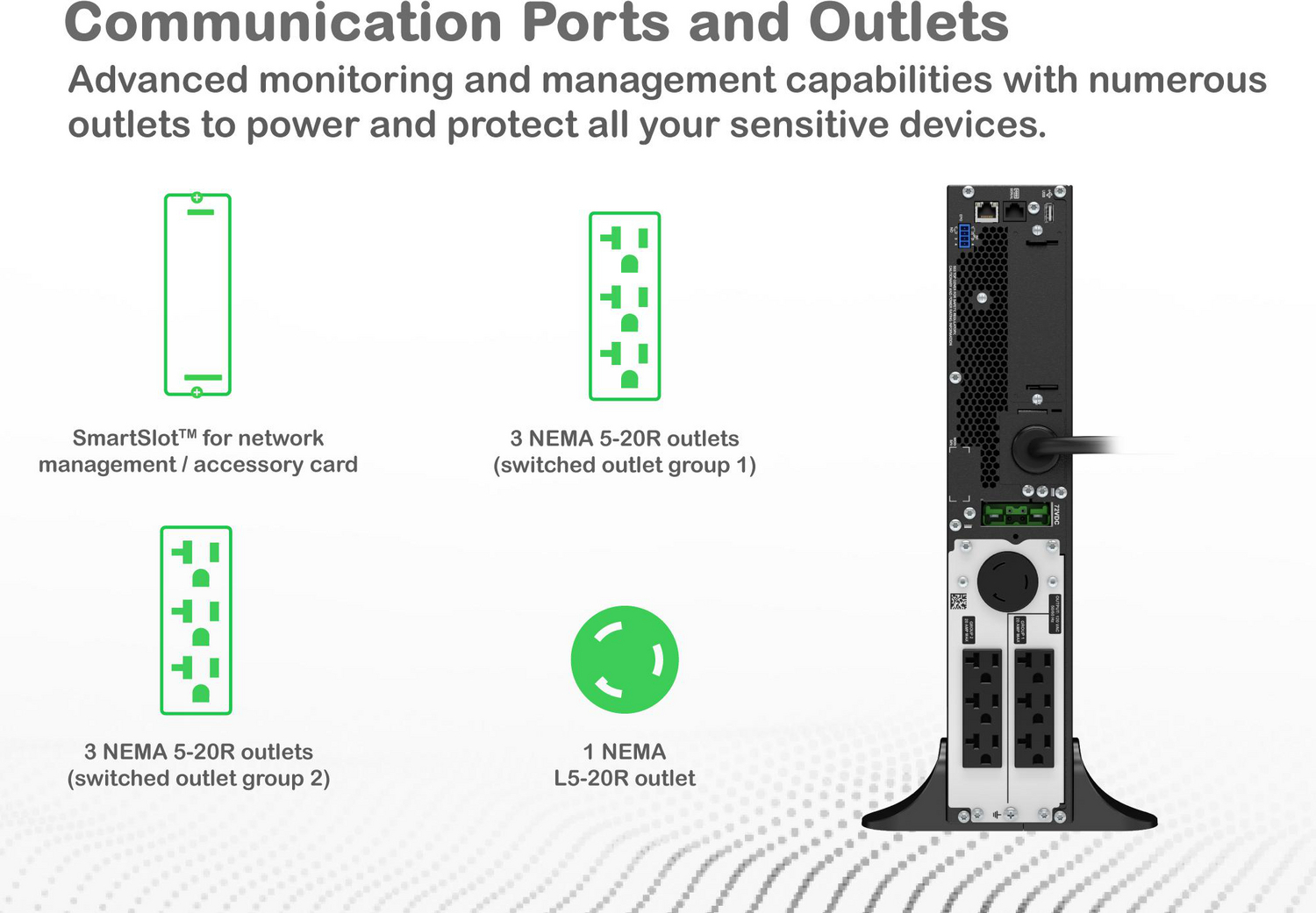

• Output Connections
  (6) NEMA 5-20R (Battery Backup)
  (1) NEMA L5-20R (Battery Backup)
  Bypass
  Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage
  120V
• Input frequency
  40 - 70 Hz (auto sensing)
• Input Connections
  NEMA 5-20P
• Cord Length
  6ft ( 1.83meters )
• Number of Power Cords
  1

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  1
• Typical recharge time
  3hour(s)
• Replacement Battery
  APCRBC141
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1
• Extendable Run Time
  1
• Extended Run Options
  APC-Smart-UPS-SRT-2200VA-120V
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph


Communications & Management

• Interface Port(s)
  RJ-45 Serial , Smart-Slot , USB
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  340Joules
• Filtering
  --

Physical

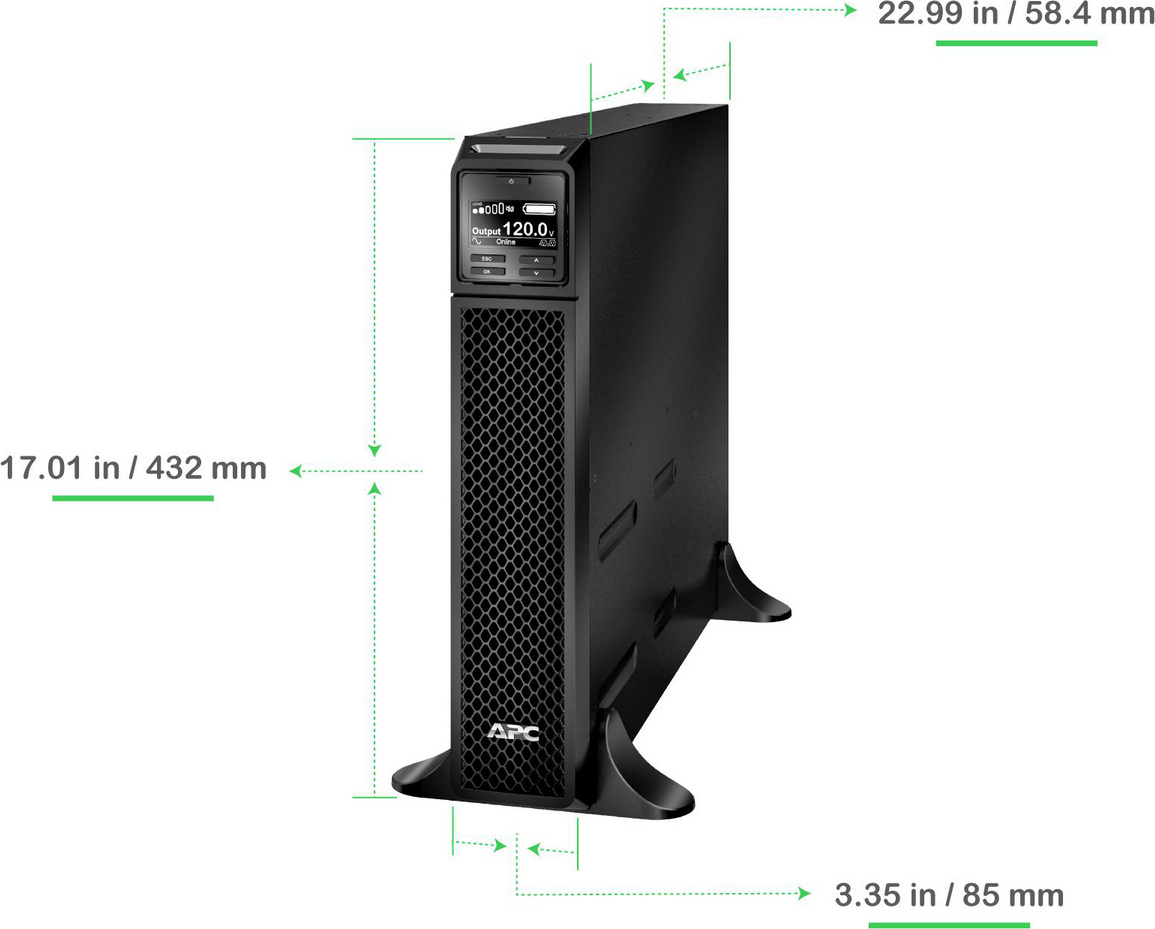

• Maximum Height
  17.0inches ( 432mm , 43.2cm )
• Maximum Width
  3.35inches ( 85mm , 8.5cm )
• Maximum Depth
  23.0inches ( 584mm , 58.4cm )
• Net Weight
  55.0lbs. ( 25.0kg )
• Shipping weight
  68.0lbs. ( 30.84kg )
• Shipping Height
  9.7inches ( 246mm , 24.6cm )
• Shipping Width
  23.6inches ( 599mm , 59.9cm )
• Shipping Depth
  31.9inches ( 810mm , 81.0cm )
• Color
  Black
• Units per Pallet
  12.0

Environmental

• Operating Environment
  32 - 104 °F ( 0 - 40 °C )
• Operating Relative Humidity
  0 - 95% non-condensing %
• Operating Elevation
  0-10000ft ( 0-3000meters )
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95% non-condensing %
• Storage Elevation
  0-50000ft ( 0-15000meters )
• Online thermal dissipation
  535.0BTU/hr
• Protection Class
  IP 20

Conformance

• Approvals
  CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
• Standard warranty
  3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs

Documentation:

Download the APC Smart-UPS On-Line 120/208 V Data Sheet (PDF).
