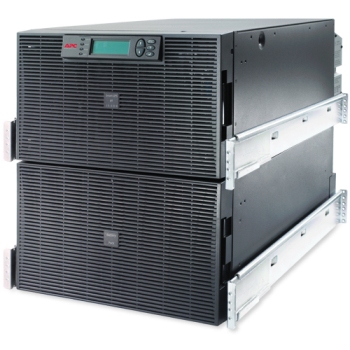

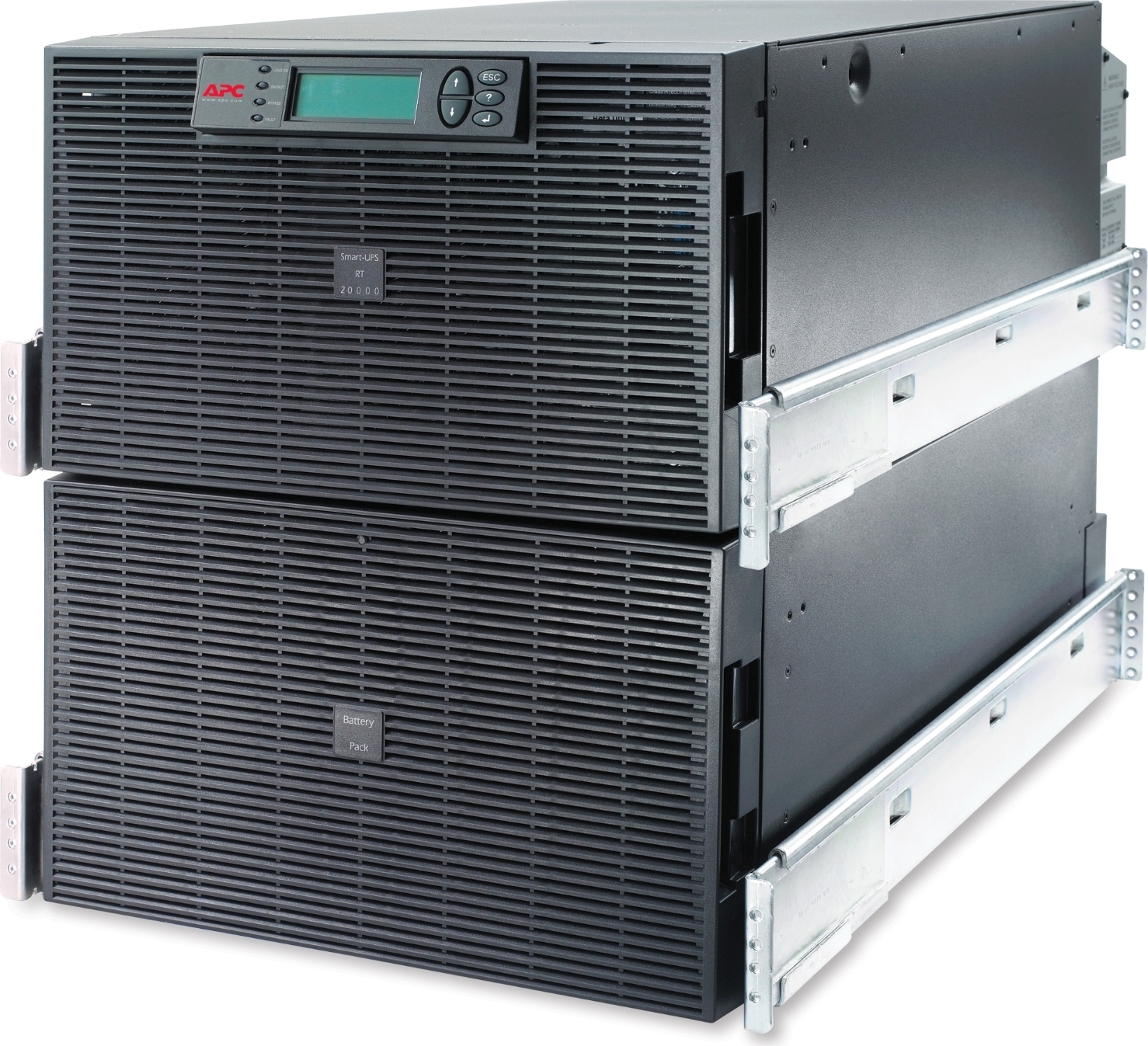

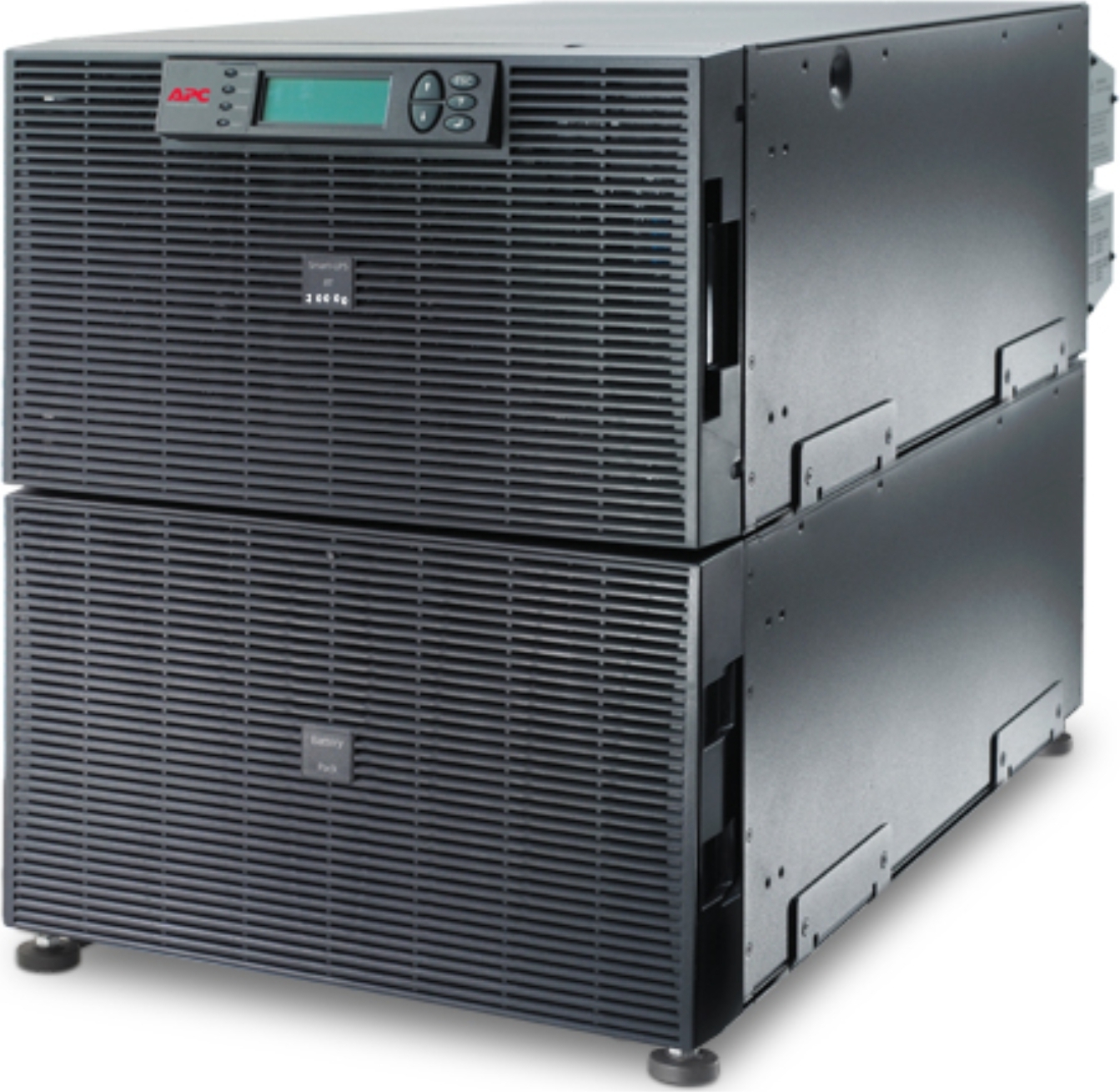

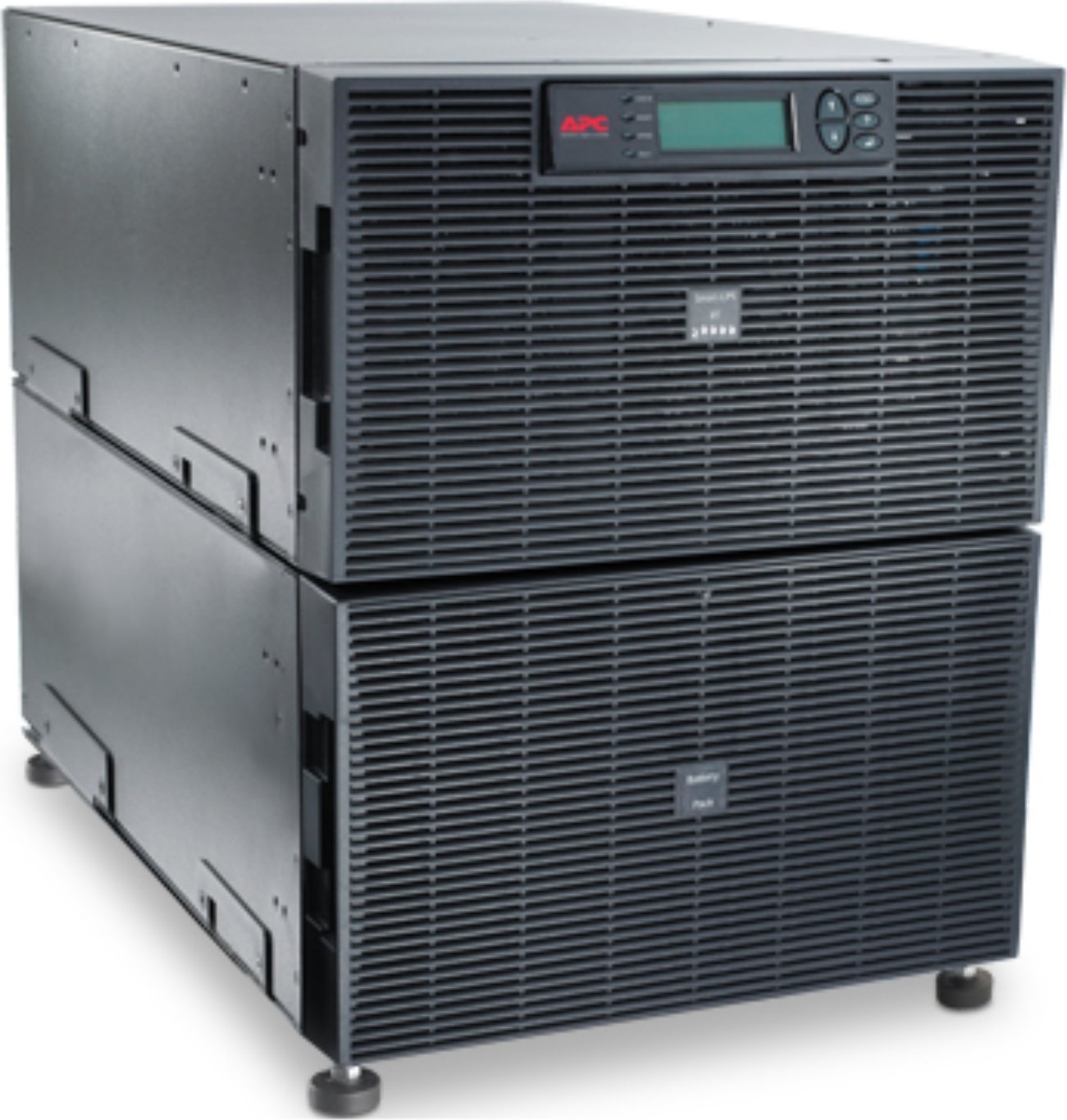

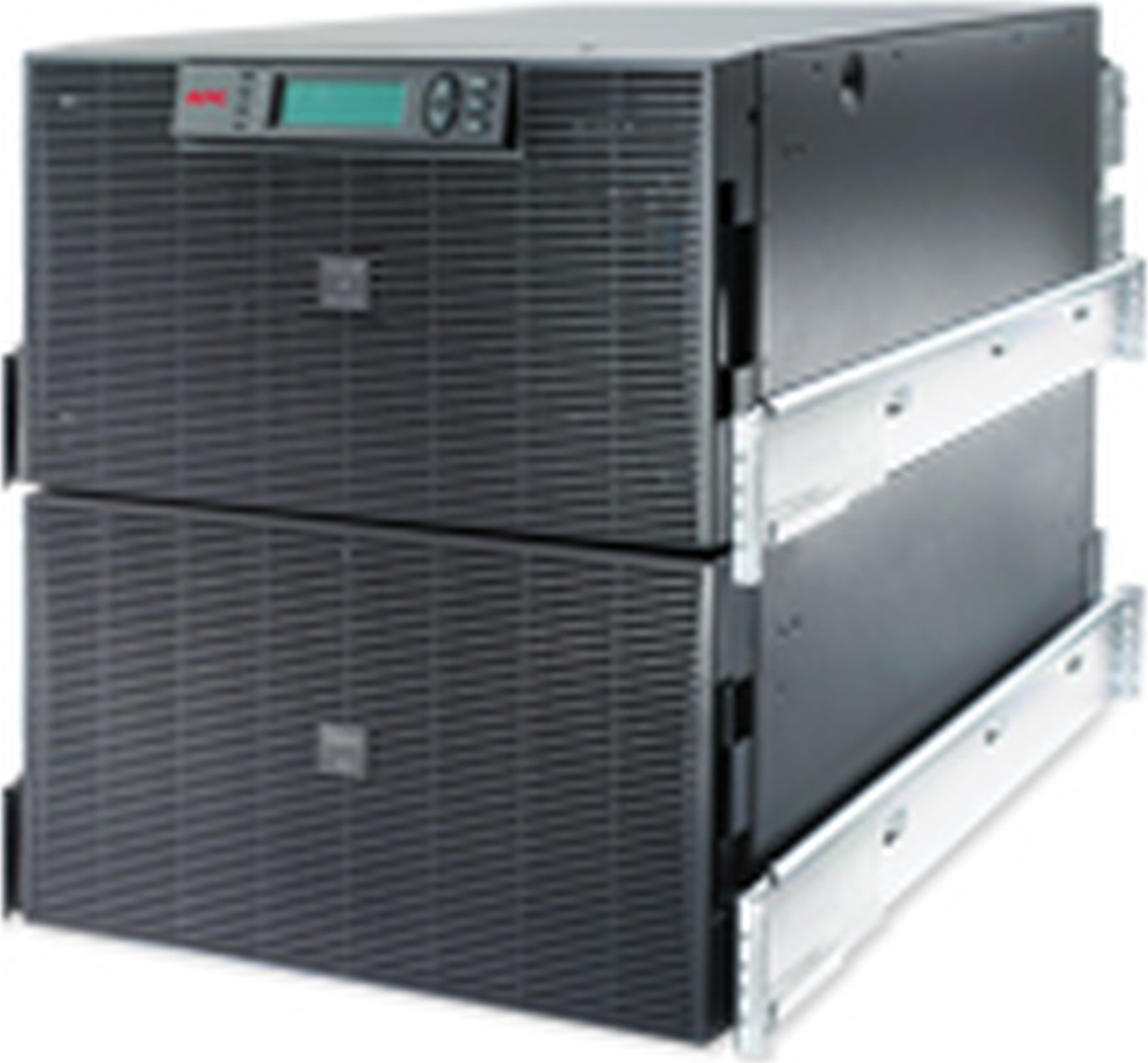

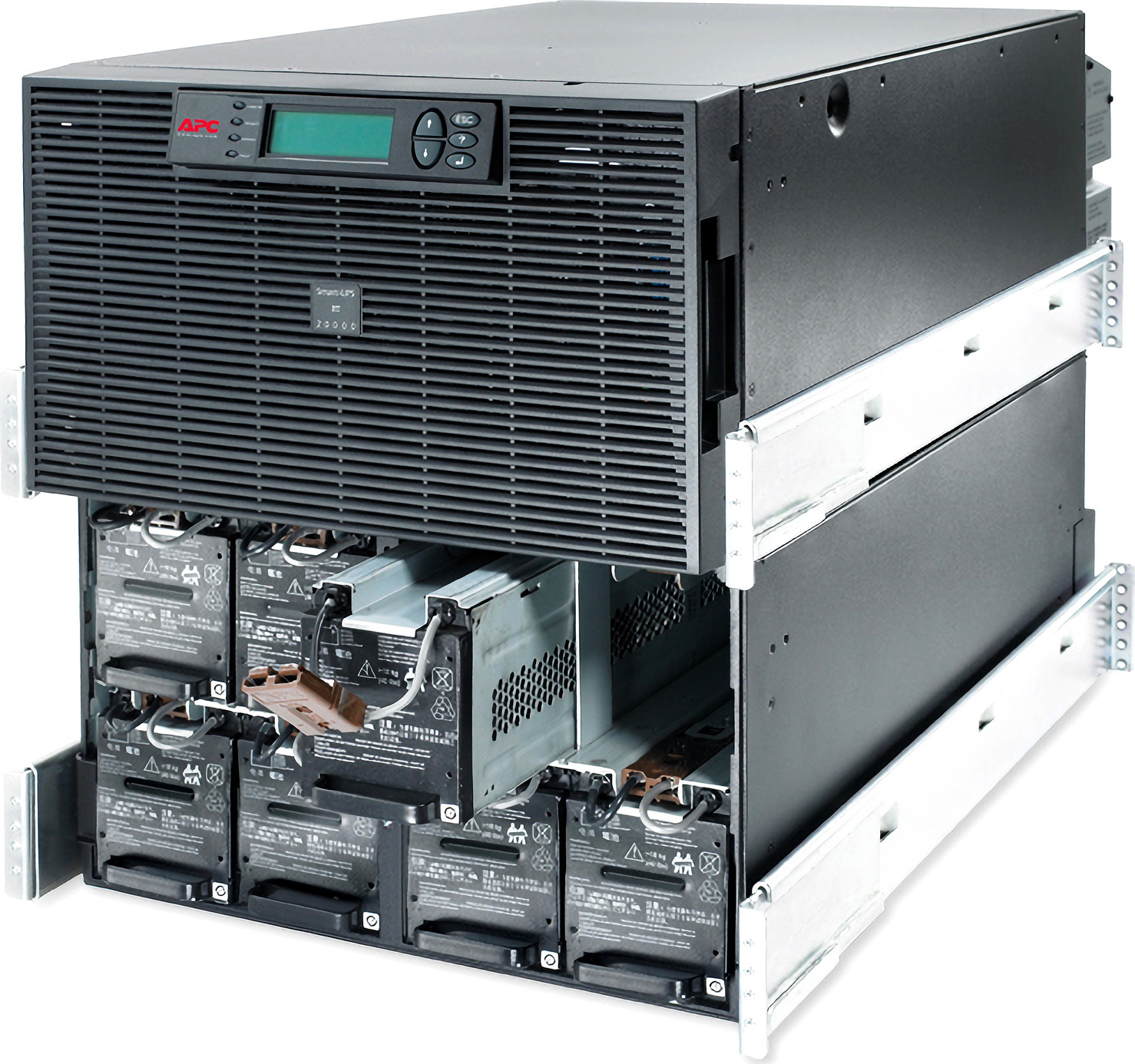

APC Smart-UPS RT 20kVA RM 208V
APC Smart-UPS On-Line, 16 kW / 20 kVA,Input 208V / Output 208V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12U
Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC Smart-UPS On-Line Series
More pricing below, click here!
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Features & Benefits:
| Availability | |
| Automatic internal bypass | Supplies utility power to the connected loads in the event of a UPS overload condition or fault. |
| Scalable runtime | Allows additional run time to be quickly added as needed. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Manageability | |
| Network manageable | Provides remote management of the UPS over the network. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| SmartSlot | Customize UPS capabilities with management cards. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Audible alarms | Provides notification of changing utility power and UPS conditions. |
| Adaptability | |
| Plug-and-Play external batteries | Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. |
| Rack/Tower convertible | Protects the initial investment in the UPS when migrating from tower to rack-mount environment. |
| Flash-upgradeable firmware | Install maintenance releases of firmware remotely using FTP. |
| Protection | |
| Frequency and voltage regulation | Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Input power factor correction | Minimizes installation costs by enabling the use of smaller generators and cabling. |
| Generator compatible | Ensures clean, uninterrupted power to the loads in the event of an extended power outage. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Resettable circuit breakers | Easy recovery from overloads; no need to replace a fuse. |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here to view the Smart-UPS On-Line Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 16k Watts / 20k VA |
| Max Configurable Power | 16k Watts / 20k VA |
| Nominal Output Voltage | 120V, 208V |
| Output Voltage Note | Configurable for 208 or 240 nominal output voltage |
| Efficiency at Full Load | 94% |
| Efficiency at Half Load | 94% |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Crest Factor | 3 : 1 |
| Waveform Type | Sine wave |

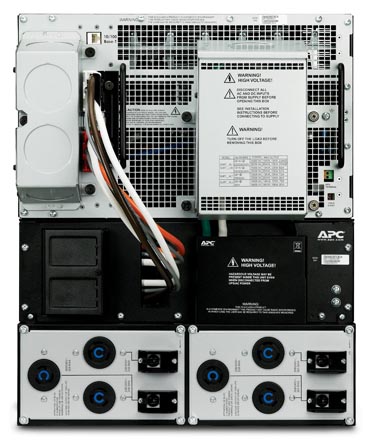

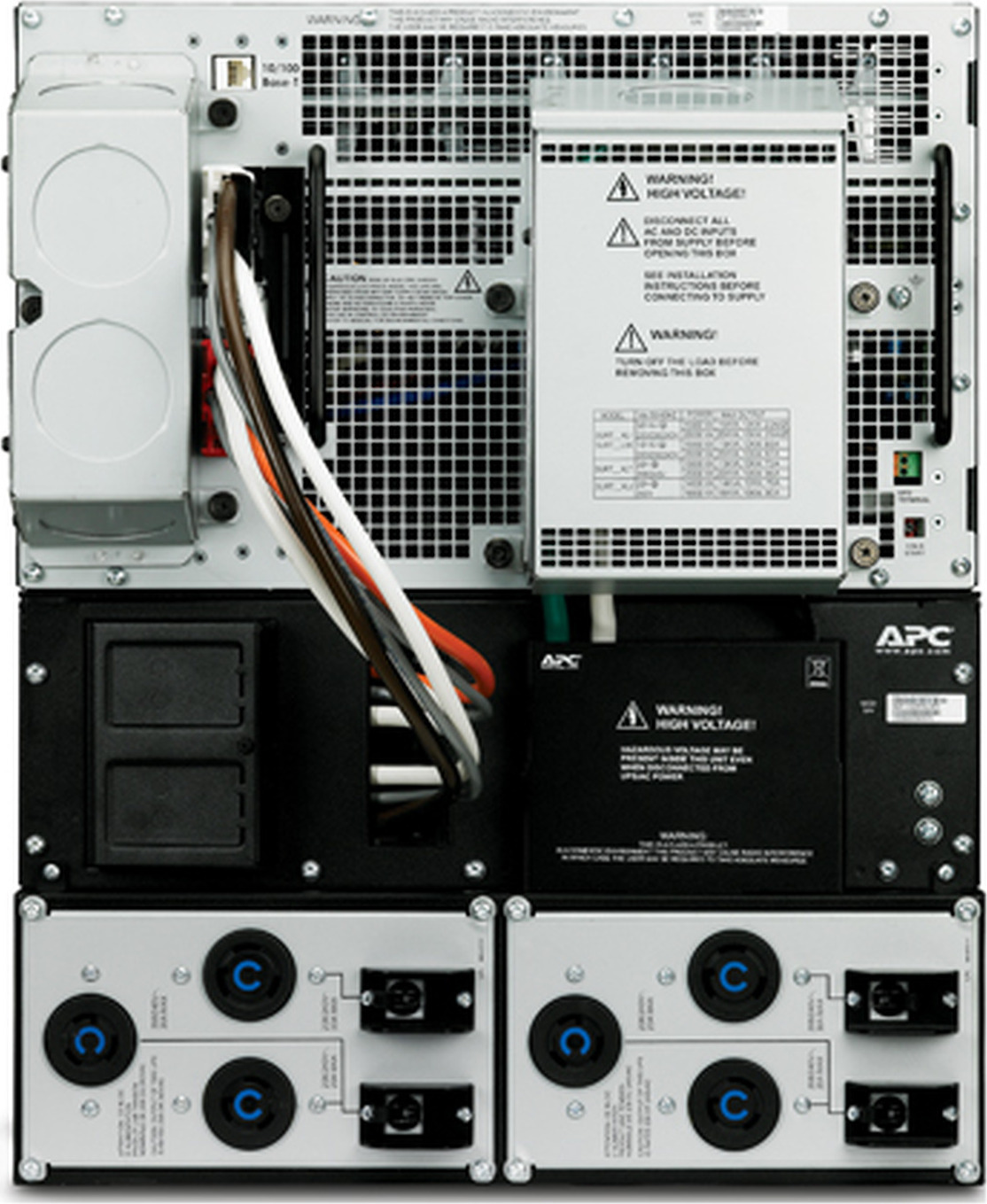

| Output Connections | (1) Hard Wire 3-wire (2PH + G) (4) NEMA L6-20R (2) NEMA L6-30R |
| Input | |
| Bypass | Built-in Static Bypass, Internal Bypass (Automatic and Manual), Optional External Bypass |
| Nominal Input Voltage | 208V |
| Input Frequency | 40 - 70 Hz (auto sensing) |
| Input Connections | Hard Wire 3-wire (2PH + G) |
| Input voltage range for main operations | 160 - 280V |
| Other Input Voltages | 240 |
| Maximum Input Current | 114A |
| Input Breaker Capacity | 125A |
| Input Total Harmonic Distortion | Less than 5% for full load |
| Batteries & Runtime | |

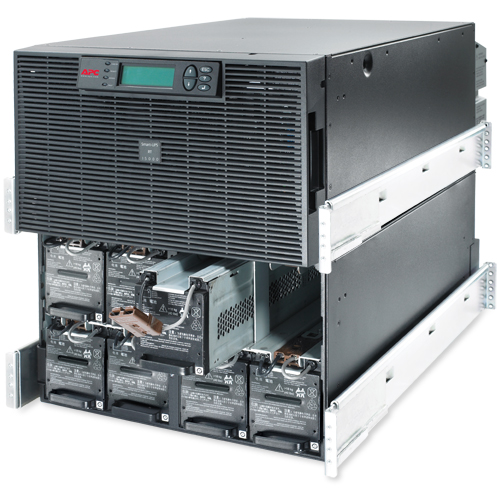

| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Included Battery Modules | 4 |
| Typical recharge time | 2.50 hour (s) |
| Replacement battery cartridge | RBC44 |
| RBC™ Quantity | 4 |
| Nominal Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Discharge Battery Voltage | +/-154 V |
| Efficiency in Battery Operation | 93% |
| Typical Backup Time at Half Load | 15.3 minutes (8000 Watts) |
| Typical Backup Time at Full Load | 4.9 minutes (16000 Watts) |
| Runtime Chart | Smart-UPS On-Line |
| Extended Run Options | APC Smart-UPS RT 20kVA RM 208V |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
| Pre-Installed SmartSlot™ Cards | AP9631 |

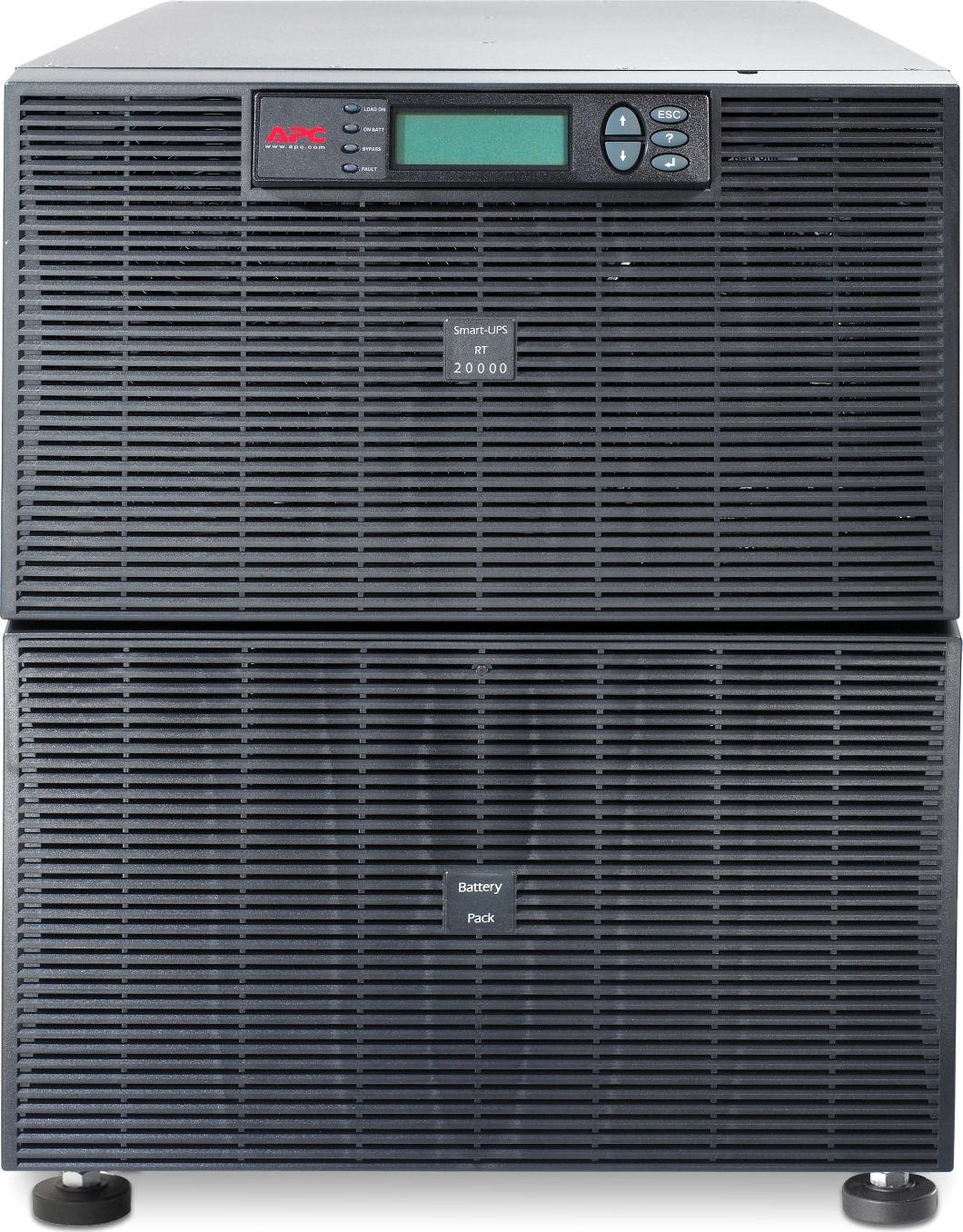

| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Audible and visible alarms : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 20.98 inches (533 mm) |
| Maximum Width | 17.00 inches (432 mm) |
| Maximum Depth | 30.43 inches (773 mm) |
| Net Weight | 545.00 lbs. (247.73 kg) |
| Shipping Weight | 691.00 lbs. (314.09 kg) |
| Shipping Height | 38.98 inches (990 mm) |
| Shipping Width | 24.02 inches (610 mm) |
| Shipping Depth | 39.49 inches (1003 mm) |
| Color | Black |
| Units per Pallet | 1.00 |
| Rack Height | 12U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 59.00 dBA |
| Online Thermal Dissipation | 4320.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | UL 1778 |
| Standard Warranty | 2 years repair or replace |
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
