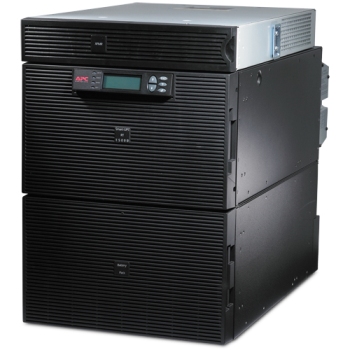

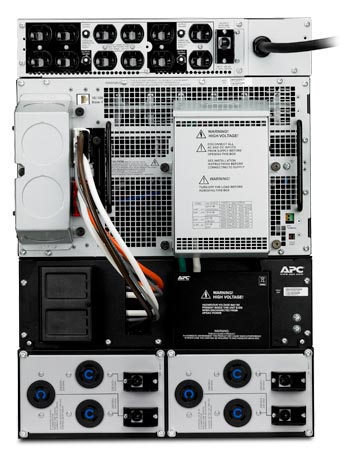

APC Smart-UPS RT 20kVA, 208V (SURT20KRMXLT-TF5)
LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V.
- Specs: Capacity: 20000 VA | Topology: Double Conversion Online | Outlets: Hard Wire 3-wire (2PH + G) for 1 zone(s)|12 NEMA5-20R|4 NEMAL6-20R|1 NEMAL6-30R
- Includes: CD with software|Rack Mounting support rails|Smart UPS signalling RS-232 cable|User Manual|Web/SNMP Management Card
Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →
Request a Quote- Fast shipping — same-day processing before 4:15 pm PST
- Authorized Reseller — Serving customers 20+ years
- Call for Bulk Pricing
APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V
Engineered for high-density environments, the SURT20KRMXLT-TF5 delivers enterprise-grade power protection. Its rack-mountable architecture integrates seamlessly into your existing server racks and IT enclosures. Operating as a double conversion online UPS, it guarantees up to 20000 VA of clean, uninterrupted backup power during outages. Equipped with Hard Wire 3-wire (2PH + G) for 1 zone(s)|12 NEMA5-20R|4 NEMAL6-20R|1 NEMAL6-30R, it ensures all your connected hardware remains online and shielded from catastrophic surges. The system operates on a nominal input voltage of 208 V AC 1 phase|240 V AC 1 phase.
Key Features
- LCD display-Alpha-Numeric Display which displays system parameters and alarms.
- Manageable external batteries-Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
- Rack/Tower convertible-Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Removable input/output wiring tray-Allows quick and easy installation and maintenance of the UPS.
Ideal Applications
As a premier offering in the APC Smart-UPS On-Line lineup, the SURT20KRMXLT-TF5 provides rock-solid reliability for Uninterruptible Power Supply (UPS) environments.
Features & Benefits
Explore the technical advantages and comprehensive protection policies that make the SURT20KRMXLT-TF5 a rock-solid choice for your infrastructure.
Features and Benefits for SURT20KRMXLT-TF5
The APC Smart-UPS RT is an online UPS with transformer and a power rating of 20kVA and output power capacity of 16000 watts.
- It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R.
- This model is includes a lead-acid battery and is rack-mountable.
- It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Protection & Warranty
Equipment Protection Policy
Lifetime protection policy available.
Hardware Specifications
Comprehensive physical, electrical, and environmental data for the SURT20KRMXLT-TF5 to ensure compatibility with your deployment.
General
Power & Surge
Battery
Physical

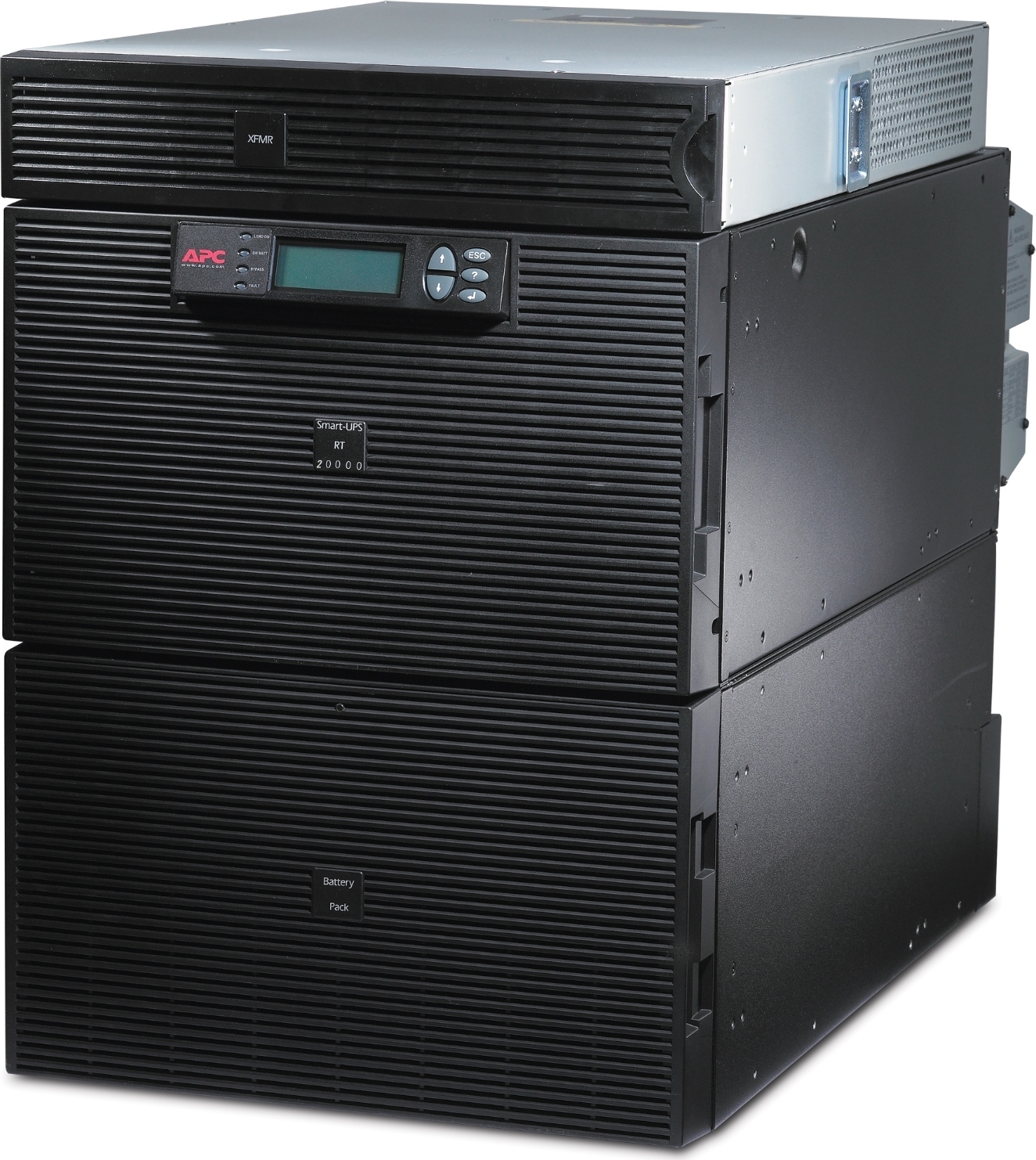

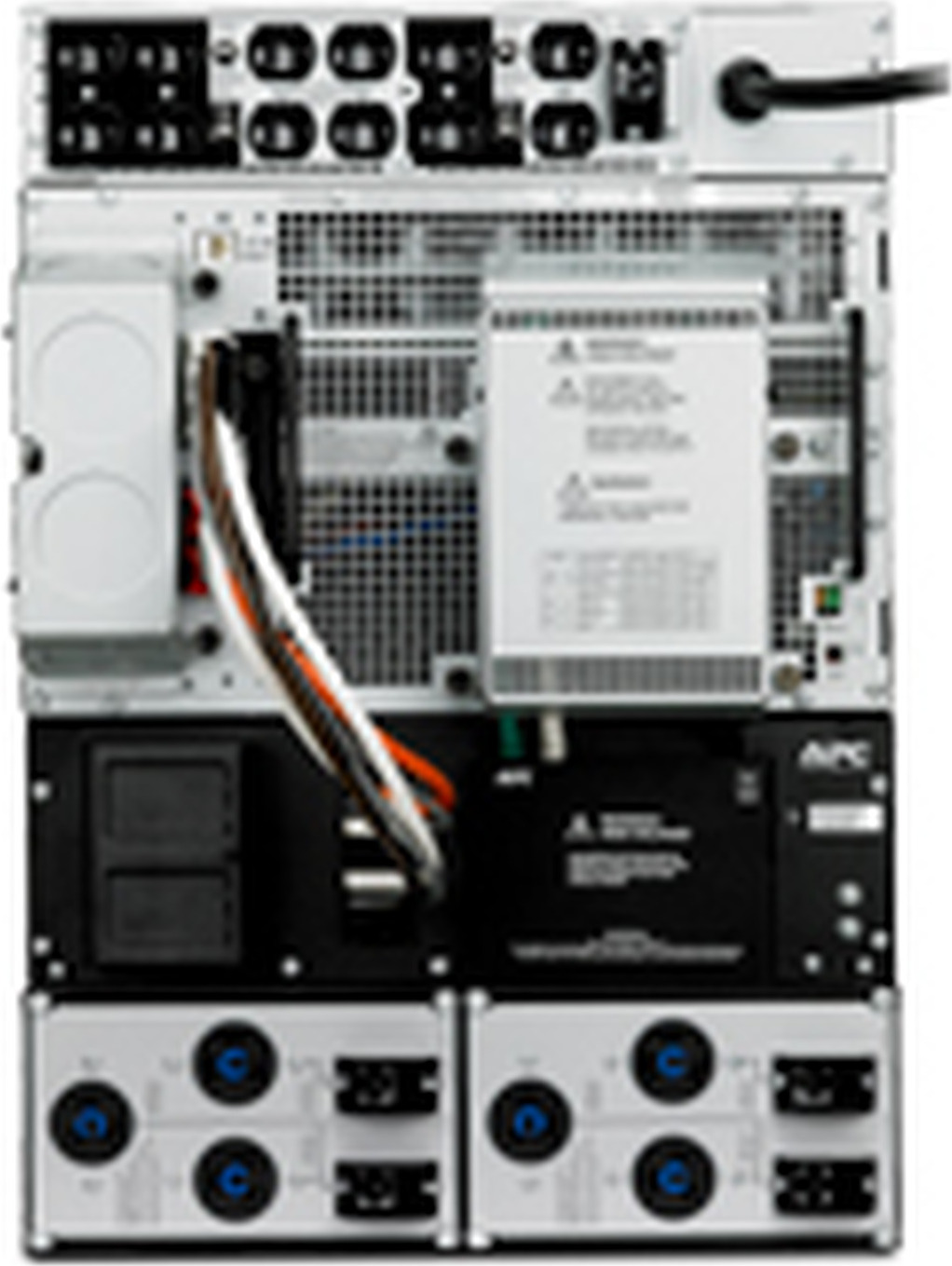

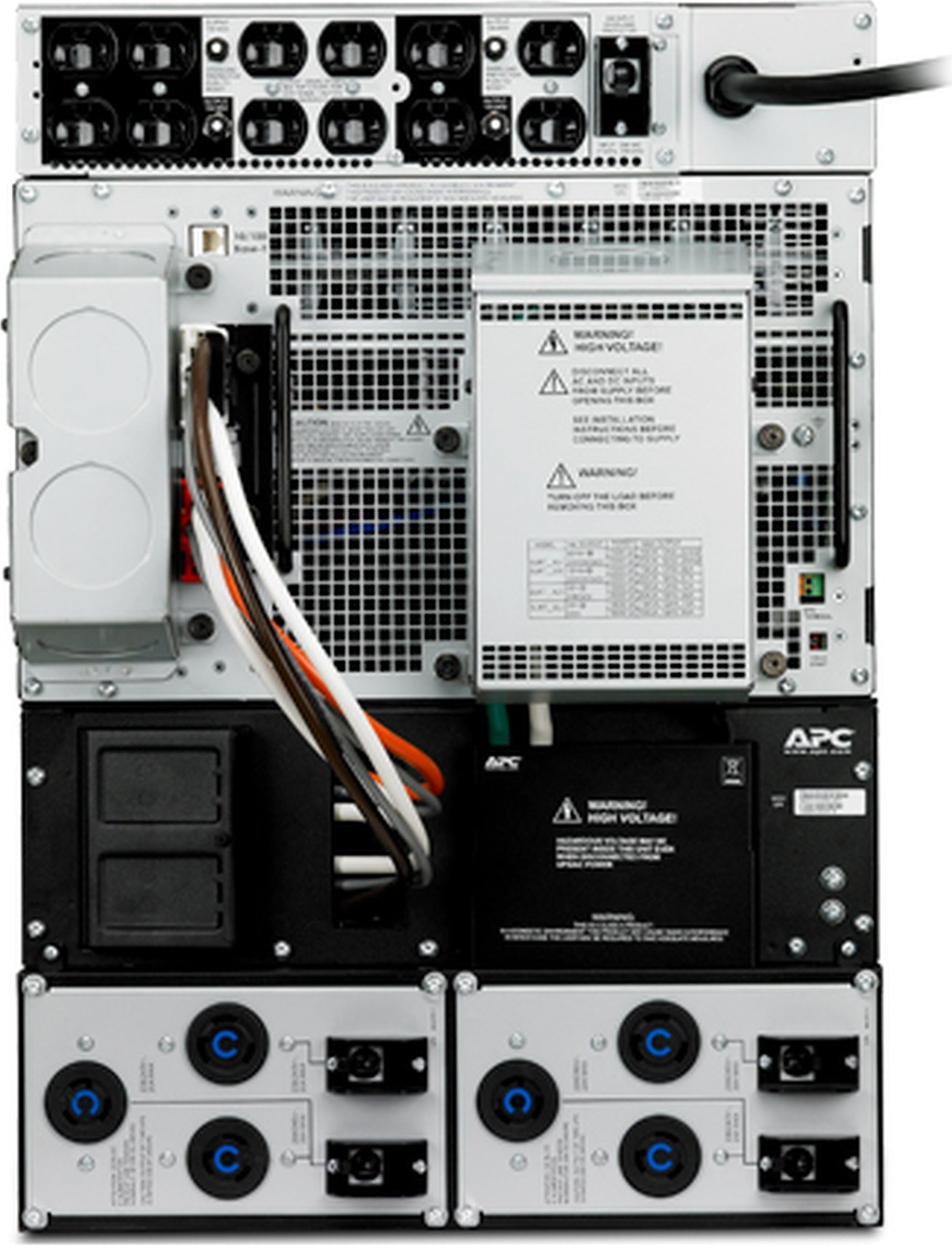

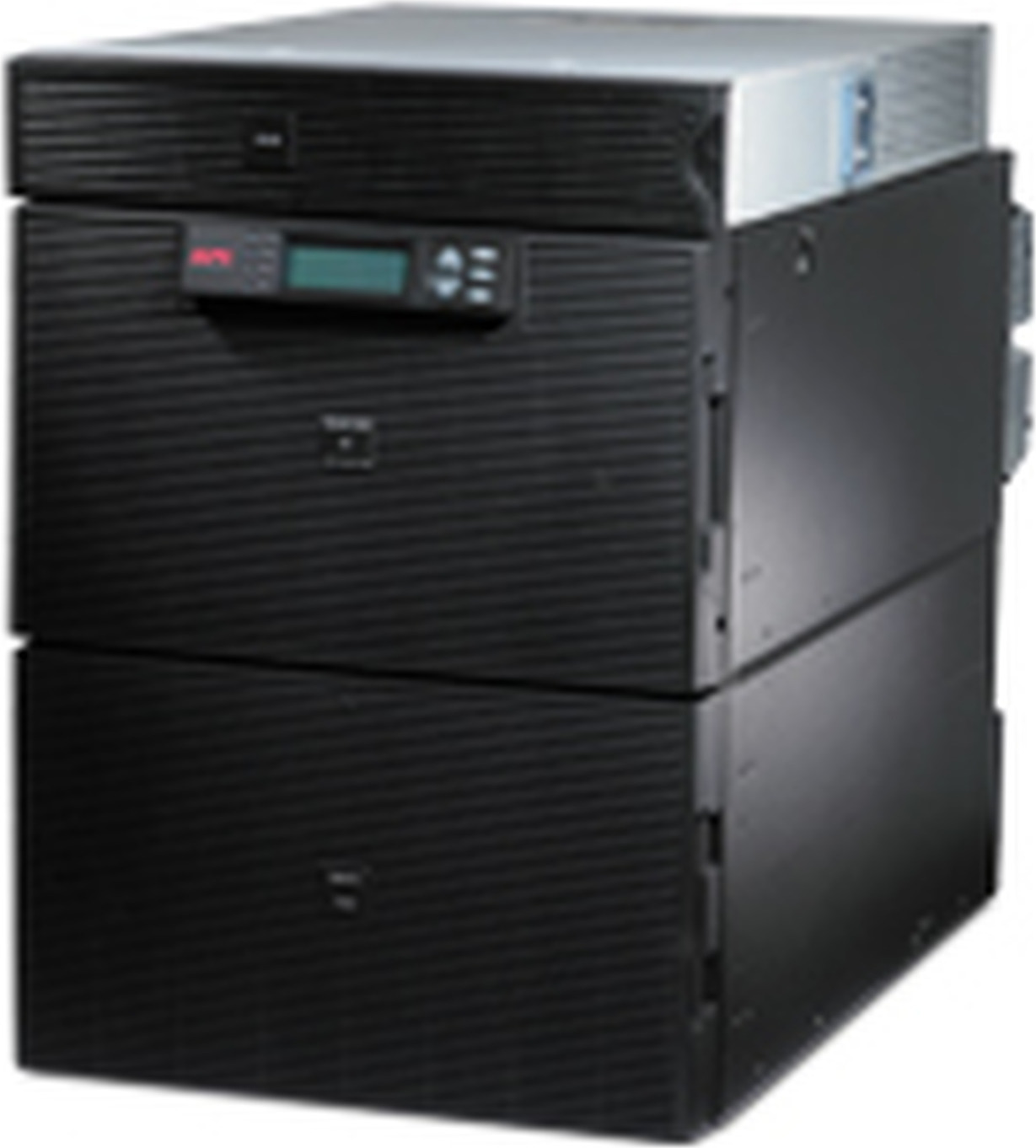

Additional Product Views
Compare Similar Models
See how the SURT20KRMXLT-TF5 stacks up against other models in the APC Smart-UPS On-Line series.
Documentation & Compliance
Access user manuals, datasheets, and environmental profiles for the SURT20KRMXLT-TF5.
