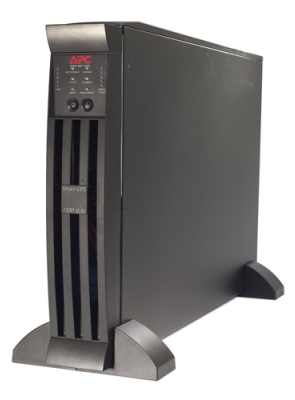

APC Smart-UPS XL Modular 1500VA 120V Rackmount/Tower
APC Smart-UPS XL, 1440VA/1425W, Input 120V/Output 120V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2U
Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC Smart-UPS XL
APC Extended Run Battery Pack for Smart-UPS XL Modular 48V
#SUM48RMXLBP2U
Our Price: $1,795.00
Our Price: $1,795.00
More pricing below, click here!
Over 10 million currently installed - the one you can trust
APC Smart-UPS® XL protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. Customers can configure up to 10 matching battery packs for runtimes exceeding 24 hours, if needed. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance performance. . Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.
Features & Benefits:
| Availability | |
| Scalable runtime | Allows additional run time to be quickly added as needed. |
| Dataline Surge Protection | Gives higher application availability by correcting low and high voltage conditions without using the |
| Boost and Trim Automatic Voltage Regulation (AVR) | Provides protection of connected equipment from power surges on the data lines. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Manageability | |
| Network manageable | Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA). |
| SmartSlot | Customize UPS capabilities with management cards. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Enables quick understanding and response to visual indicators showing UPS status. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| Serviceability | |

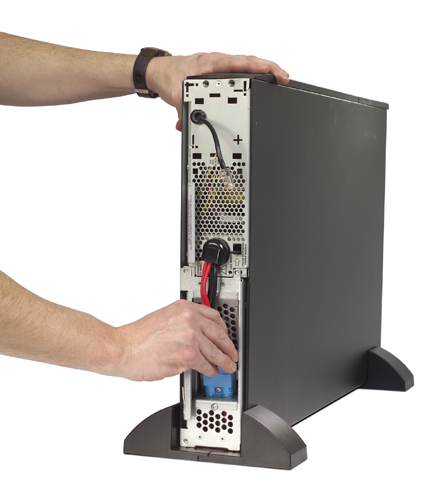

| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Plug-and-Play external batteries | Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. |
| Adjustable voltage-transfer points | Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here for APC Smart-Ups XL Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 1425 Watts / 1440 VA |
| Max Configurable Power | 1425 Watts / 1440 VA |
| Nominal Output Voltage | 120V |
| Efficiency at Full Load | 95.00% |
| Output Connections |  (8) NEMA 5-15R |
| Input | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections |  NEMA 5-15P |
| Cord Length | 10 feet (3.05 meters) |
| Input voltage range for main operations | 82 - 143V |
| Input voltage adjustable range for mains operation | 75 - 154V |
| Batteries & Runtime | |
| Battery Type | VRLA |
| Typical recharge time | 3 hour(s) |
| Replacement battery cartridge | RBC43 |
| RBC™ Quantity | 1 |
| Typical Backup Time at Half Load | 28.3 minutes (712.5 Watts) |
| Typical Backup Time at Full Load | 11.9 minutes (1425 Watts) |
| Runtime Chart | Smart-UPS XL |
| Extended Run Options | APC Smart-UPS XL Modular 1500VA 120V Rackmount/Tower |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232,RJ-45 10/100 Base-T,USB |
| Pre-Installed SmartSlot™ Cards | AP9619 |
| Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Optional |
| Surge Protection and Filtering | |
| Surge Energy Rating | 540 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 3.40 inches (86 mm) |
| Maximum Width | 17.00 inches (432 mm) |
| Maximum Depth | 26.70 inches (678 mm) |
| Net Weight | 103.00 lbs. (46.82 kg) |
| Shipping Weight | 125.00 lbs. (56.82 kg) |
| Shipping Height | 9.84 inches (250 mm) |
| Shipping Width | 23.46 inches (596 mm) |
| Shipping Depth | 38.58 inches (980 mm) |
| Color | Black |
| Units per Pallet | 8.00 |
| Rack Height | 2U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 23 - 131°F (-5 - 55°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-30000 feet (0-9000 meters) |
| Audible noise at 1 meter from surface of unit | 55.00 dBA |
| Online Thermal Dissipation | 300.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | BSMI,CSA,FCC Part 15 Class A,NOM,UL 1778,VCCI |
| Standard Warranty | 2 years repair or replace |
| Equipment protection policy | Lifetime: $150,000 |
Documentation:
Download the APC Smart-UPS XL SUM1500RMXL2U Data Sheet (PDF).
