What is the scalable power range of the APC Symmetra LX SYA12K16RMP?

The SYA12K16RMP starts at 12kVA and can scale up to 16kVA with N+1 redundancy by adding additional power modules within its 19U rack-mount frame.

How much does the SYA12K16RMP weigh?

The SYA12K16RMP has a net weight of 242.7 kg (534 lbs) and a shipping weight of 290.0 kg (638 lbs).

What is the difference between the SYA12K16RMP and SYA12K16RMI?

The SYA12K16RMP supports 208/240V input with 208/240V and 120V output, while the SYA12K16RMI is the international variant supporting 230V input and output. Both share the same 12kVA to 16kVA scalable 19U rack-mount form factor.

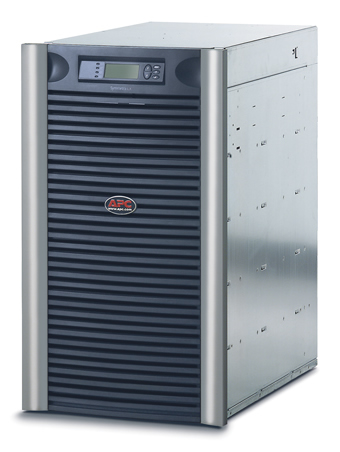

APC Symmetra LX SYA12K16RMP 12-16kVA Rack-mount

12kVA Scalable to 16kVA N+1 Rack-mount UPS with 208/240V Input

SYA12K16RMP — Symmetra LX 12-16kVA Rack-mount

APC Symmetra LX, 12kVA Scalable to 16kVA N+1, Rack-mount, 208/240V Input, 208/240V and 120V Output

Better pricing available. Our dedicated team of APC experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote

Fast shipping — same-day processing on orders before 4:15 pm PST

Authorized APC Reseller — Proudly serving customers for over 20 years

Product Overview

SYA12K16RMP / SYA12K16RMI

Overview: 12kVA capacity, scalable to 16kVA N+1 in a 19U frame.
Problem & Solution: Bridges the gap for high-load clusters that require more than 8kVA today but need a clear path to 16kVA total capacity.
Key Features:
- Three pre-installed power modules.
- Redundant Intelligence Modules (IM) and System Intelligence Modules (SIM).

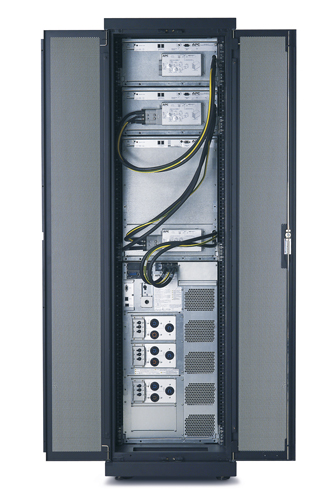

- Comprehensive PDU backplate support.
Specifications:
- U-Height: 19U (836 mm)
- Weight: 242.7 kg (290.0 kg shipping)
- Voltage: 208V/240V (P) or 230V (I)
- Thermal Dissipation: 3707 BTU/hr

Key Details

Features & Benefits

Scalable Power Capacity

Start at 12kVA and scale to 16kVA as demand grows, reducing over-sizing costs today by allowing quick upgrades later.

N+1 Redundancy

Configurable for N+1 internal redundancy, providing high availability through redundant power modules.

Hot-Swappable Components

Hot-swappable power modules, batteries, and intelligence modules ensure uninterrupted power during maintenance.

Network Manageable

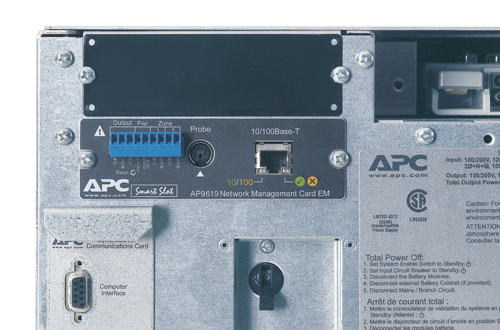

Built-in network management with SmartSlot interface for remote monitoring and centralized control.

Technical Details

Specifications

Full technical specifications for the APC Symmetra LX SYA12K16RMP.

Output

Output Power Capacity9600 Watts / 12000 VA

Max Configurable Power12800 Watts / 16000 VA

Nominal Output Voltage120V, 208V

Output Voltage NoteConfigurable for 120/208 or 120/240 output voltage

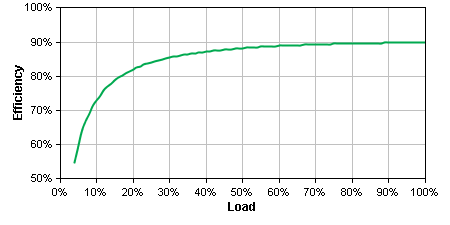

Efficiency at Full Load90%

Waveform TypeSine wave

Input

Nominal Input Voltage208V

Input Frequency45 - 65 Hz (auto sensing)

Input ConnectionsHard Wire 4-wire (2PH+N+G)

Other Input Voltages240V

Batteries & Runtime

Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Included Battery Modules3

Replacement BatterySYBT5

Typical Recharge Time3 hours

Physical

Height32.90 inches (836 mm)

Width18.60 inches (472 mm)

Depth27.10 inches (688 mm)

Net Weight534.00 lbs (242.7 kg)

Rack Height19U

Environmental

Operating Temperature32 - 104 °F (0 - 40 °C)

Operating Elevation0-10000 feet (0-3000 meters)

Online Thermal Dissipation3707 BTU/hr

Audible Noise62.00 dBA

Conformance

Standard Warranty2 years repair or replace

Regulatory ApprovalsCSA, FCC Part 15 Class A, UL 1778

Downloads

Documentation

Official APC product documentation for the Symmetra LX SYA12K16RMP.

208V Brochure

Product brochure for the APC Symmetra LX 208V 4-16kVA UPS family.

208V / 240V Technical Specifications

Detailed technical specifications for the Symmetra LX 208V and 240V models.
