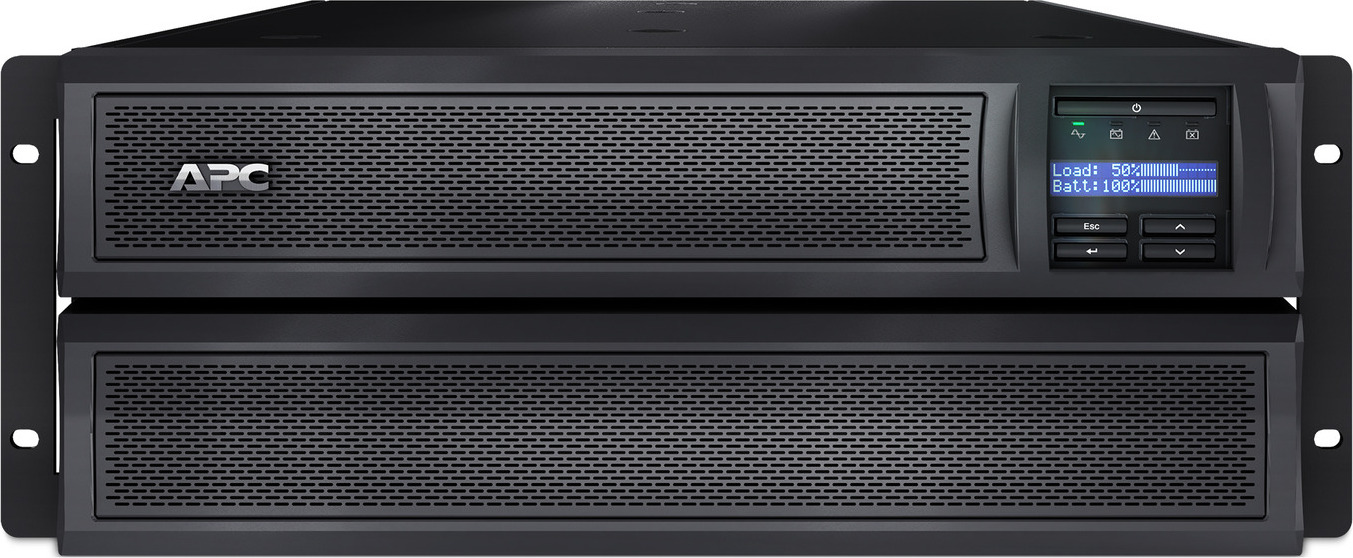

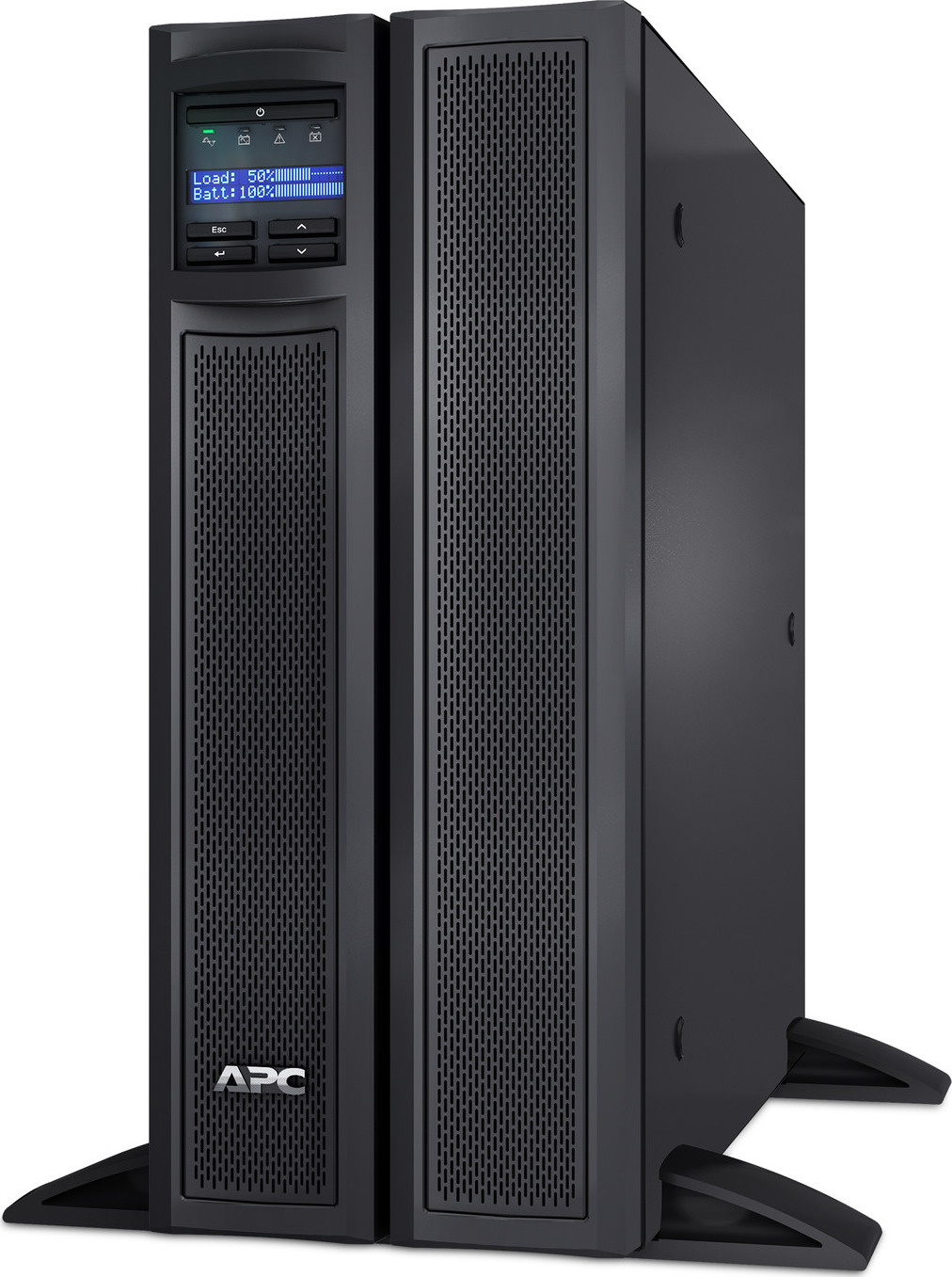

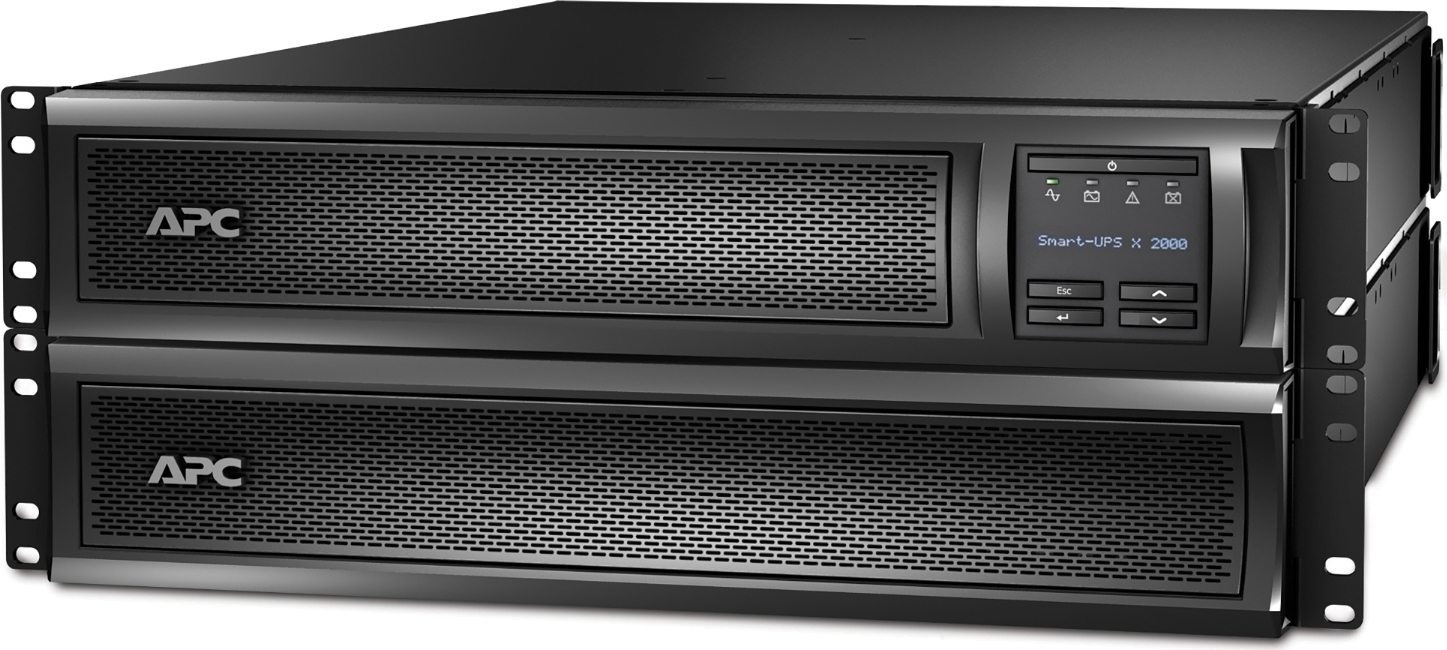

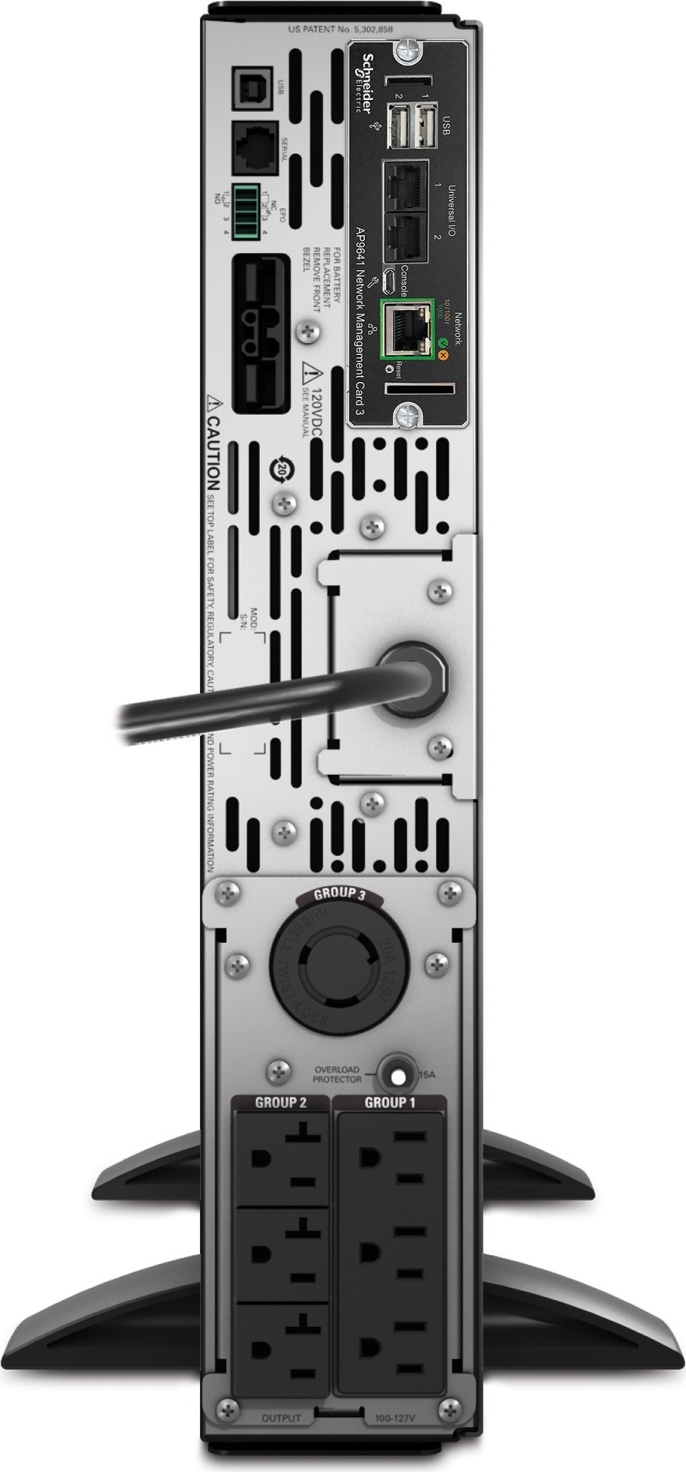

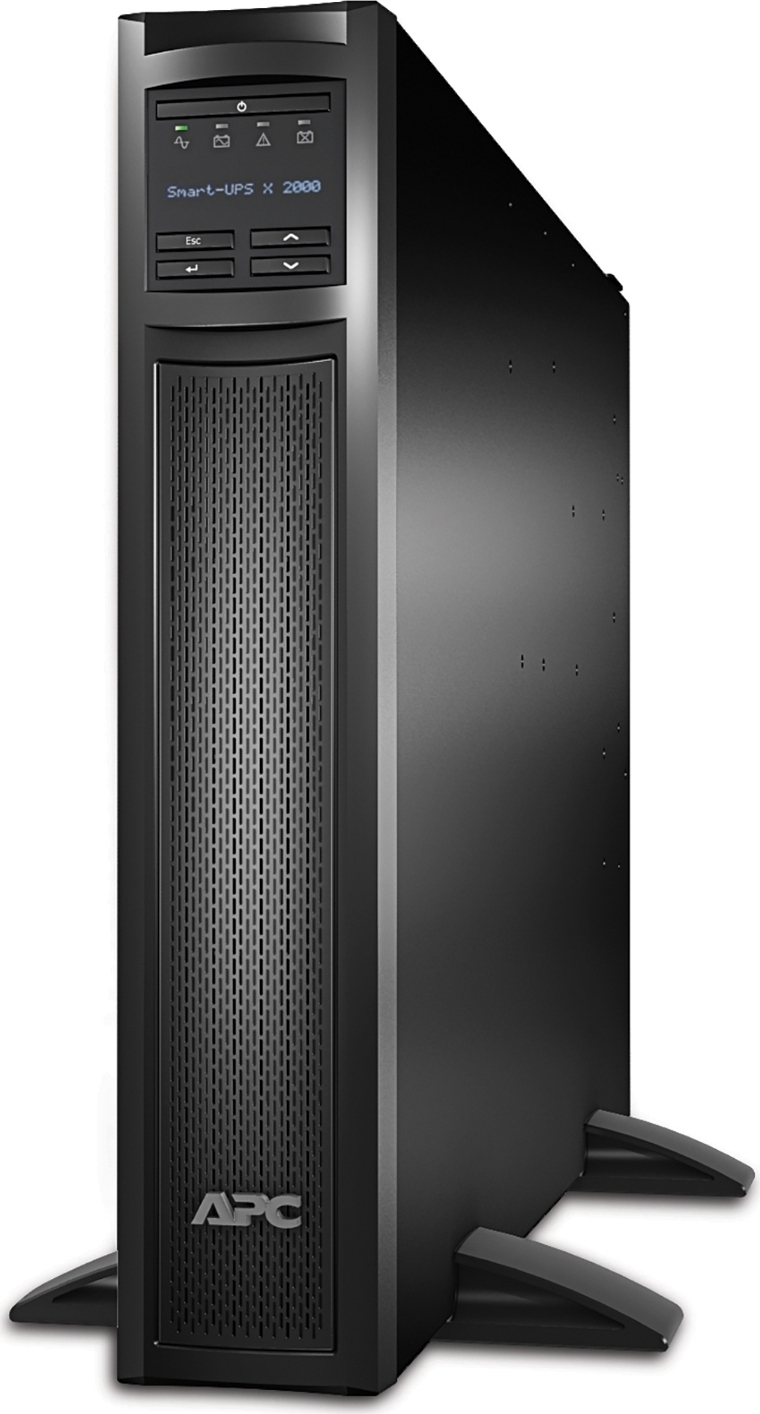

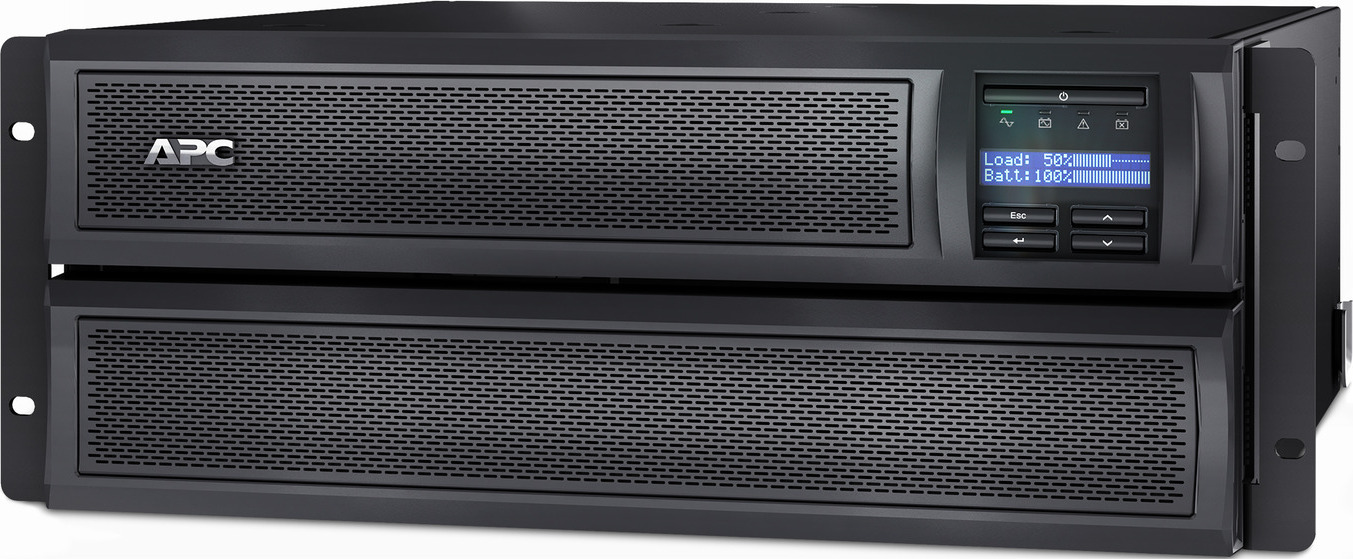

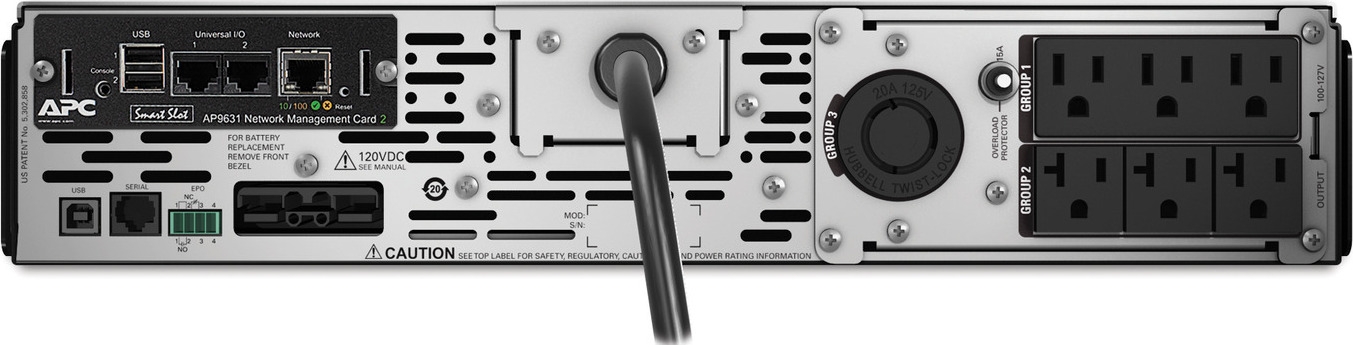

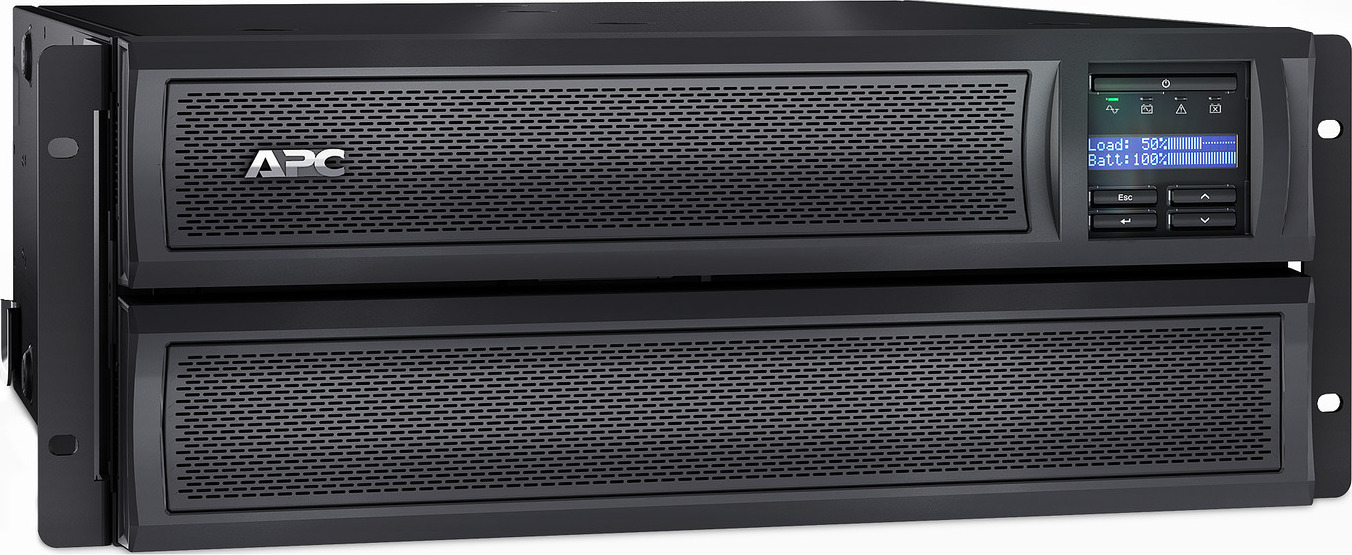

APC Smart-UPS X, Line Interactive (SMX2KRMLVNCUS)

Key Features

• StruxureWare Data Center Expert compatible-Enables centralized management via StruxureWare Data Center Expert.
• APC USB communications-Enables communications with SMX, SMT, SRT and SURTD Smart-UPS models using historical APC proprietary USB usages.
• Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.-Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
• Boost and Trim Automatic Voltage Regulation (AVR)-Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
• Serial connectivity-Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
• Reduces utility costs, generates less heat.-Reduces utility costs, generates less heat.
• Green mode-Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.-Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
• Energy meter-Provides actual kilowatt hours of usage for energy conscious users.
• Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.-Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Intuitive LCD interface-Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• UPS recognizes when external battery packs are attached and automatically adjusts runtime.-UPS recognizes when external battery packs are attached and automatically adjusts runtime.
• Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.-Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• Pure sine wave output on battery-Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Provides for remote management and control of the UPS over a network out of the box.-Provides for remote management and control of the UPS over a network out of the box.
• Disconnected battery notification-Warns when a battery is not available to provide backup power.
• Load shedding-Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
• Sequenced network shutdown and reboot-Customize network shutdown and reboot sequence of connected servers and UPSs.
• Outlet group control-Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
• Scalable runtime-Allows additional run time to be quickly added as needed.
• Adjustable voltage sensitivity-Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Adjustable voltage-transfer points-Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Audible alarms-Provides notification of changing utility power and UPS power conditions
• Automatic restart of loads after UPS shutdown-Automatically starts up the connected equipment upon the return of utility power.
• Automatic self-test-Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Cold-start capable-Provides temporary battery power when the utility power is out.
• Hot-swappable batteries-Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Multiple mounting methods-Allows for standardization on one product for use in different environments.
• Network manageable-Provides remote power management of the UPS over the network.
• Battery failure notification-Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Rack/Tower convertible-Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• Safety-agency approved-Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Serial connectivity-Provides management of the UPS via a serial port.
• Temperature-compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature.
• USB connectivity-Provides management of the UPS via a USB port (not available on all models).
• User-replaceable batteries-Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
• Boost and Trim Automatic Voltage Regulation (AVR)-Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
