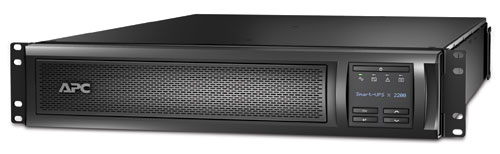

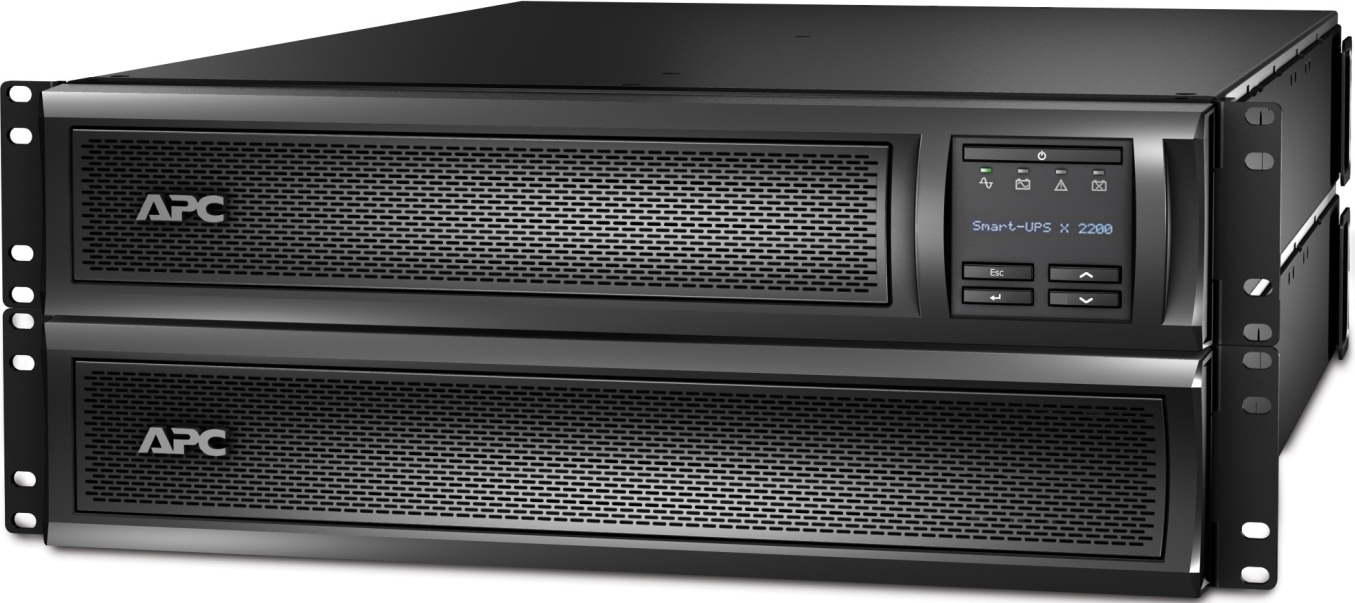

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
APC Smart-UPS, 1980 Watts / 2200 VA, Input 230V / Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U

Smart-UPS X Series

Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS's and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.

APC by Schneider Electric's Smart-UPS is the most popular uninterruptible power supply (UPS) in the world for servers and other network devices such as switches, routers workstations and point-of-sale devices. Available in either traditional tower, rack optimized, or extended run convertible form factor (750va-3000va). The world's most popular network and server UPS.

Trusted by millions to protect critical data and equipment from power problems its proven line interactive design supplies clean and reliable network-grade power over a wide range of utility conditions. Conditions include surges, spikes, brownouts, blackouts and other transient conditions that can cause costly downtime, data loss or hardware damage.

Smart-UPS are known for their intelligence, monitoring and control capability. Users can actively manage power to their critical devices using an intuitive and interactive display, through the supplied PowerChute Business edition software or remotely with optional network management cards that plug directly into the unit's Smart-slot interface.

Patent pending "green" mode provides optimum reliability and efficiency of > 97% which saves utility and cooling costs without compromising availability.

Advanced battery management provides Temperature compensated charging which extends life and advanced algorithms proactively recommend battery replacement date. In addition, Switched Outlet Groups can allow users to Reboot Hung devices, shed non-critical loads to conserve runtime, and set sequenced startup/turn off.

Features & Benefits:

Availability
Boost and Trim Automatic Voltage Regulation (AVR)	Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning	Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging	Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown	Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Manageability
Network manageable	Provides remote management of the UPS over the network.
Audible alarms	Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators	Quickly understand unit and power status with visual indicators.
Serial Connectivity	Provides management of the UPS via a serial port.
USB connectivity	Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries	Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification	Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers	Enables quick recovery from UPS overload events.
Battery failure notification	Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Adaptability
Adjustable voltage-transfer points	Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity	Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Product Views:

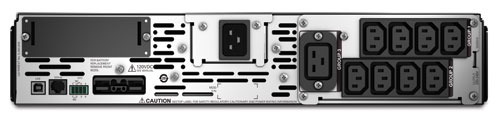

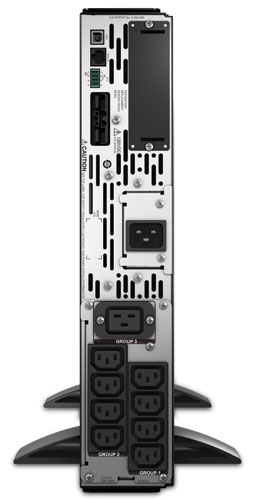

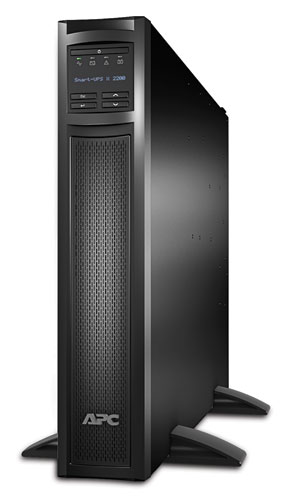

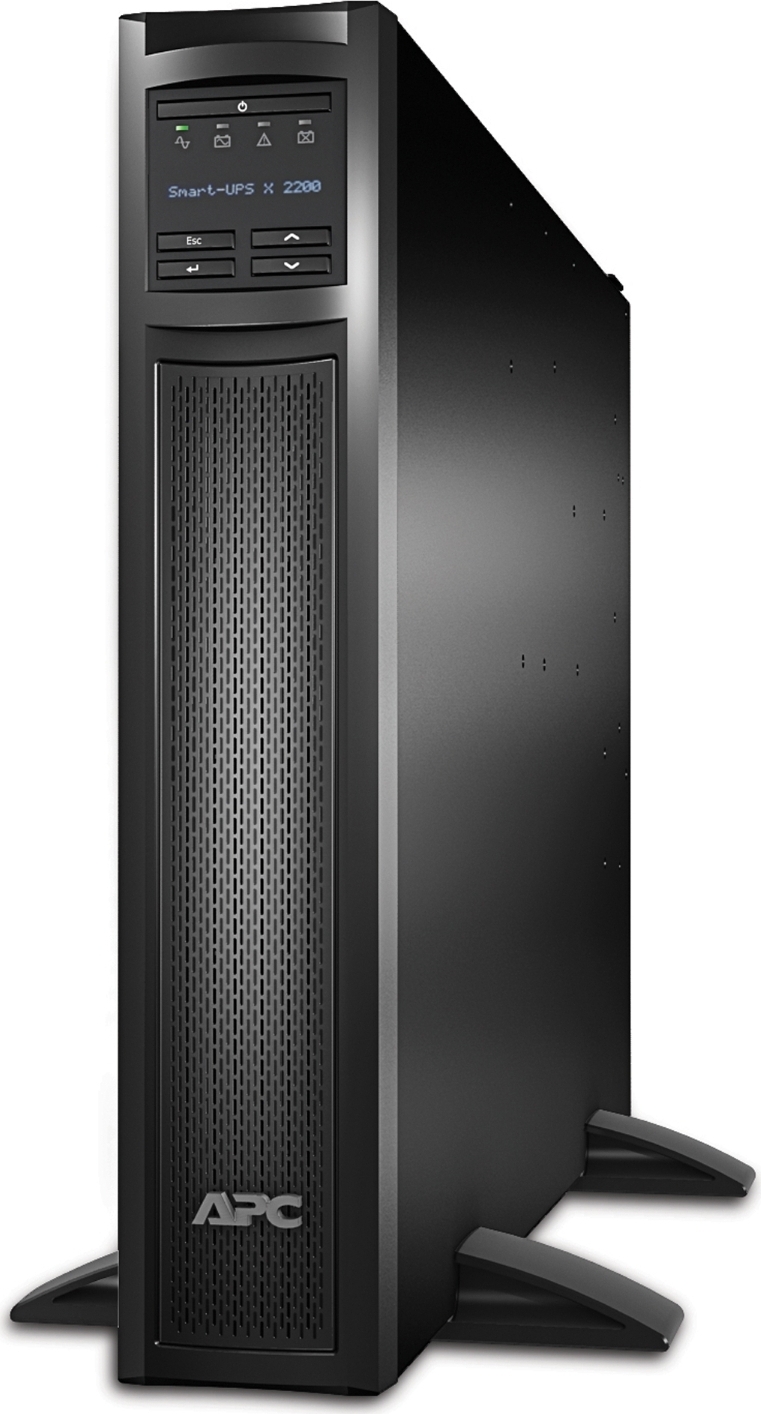

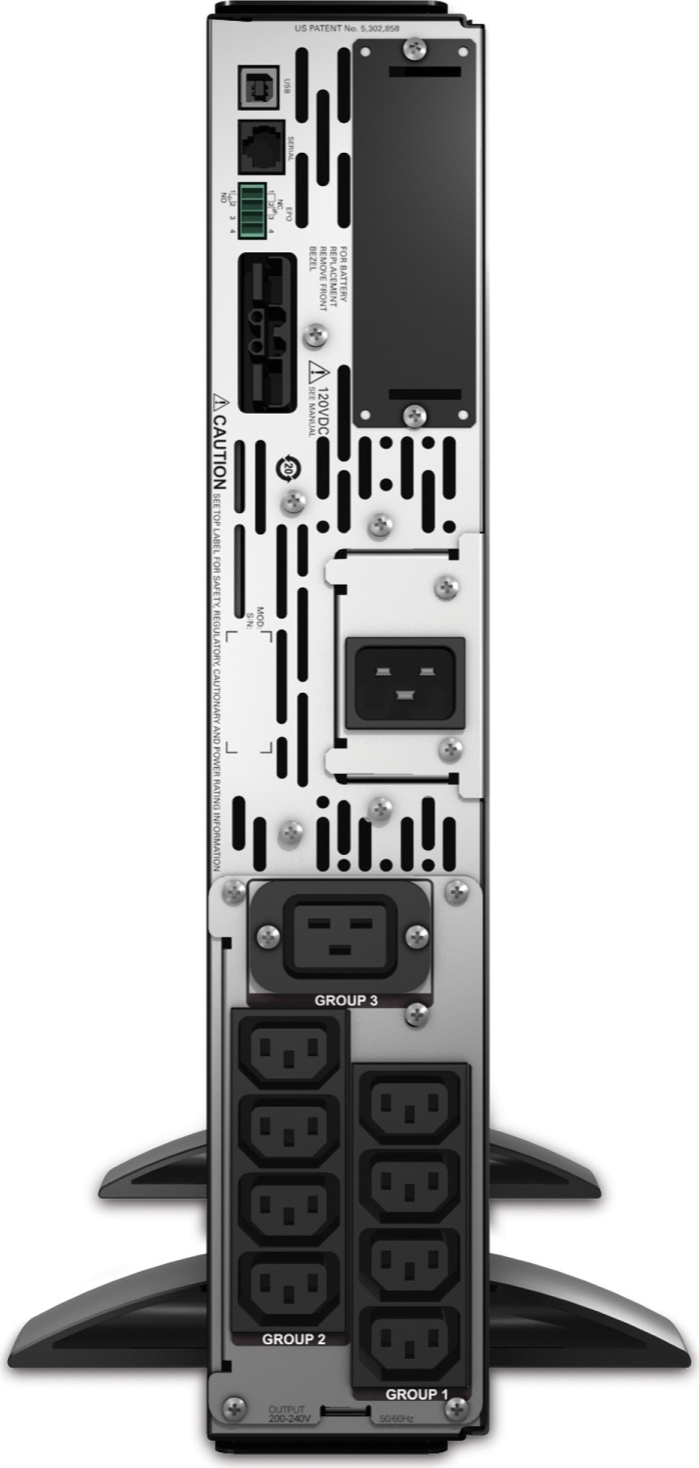

Front Stand View	Rear Stand View

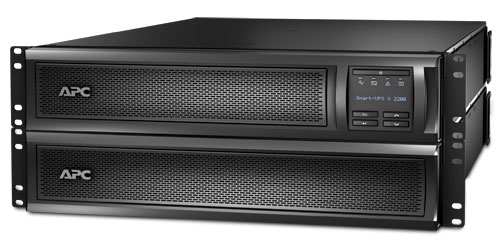

Applications

Runtime Chart:

Click here for APC Smart-Ups X Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity	1980 Watts / 2200 VA
Max Configurable Power	1980 Watts / 2200 VA
Nominal Output Voltage	230V
Output Voltage Distortion	Less than 5% at full load
Output Frequency (sync to mains)	47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Other Output Voltages	208, 220, 240
Topology	Line Interactive
Waveform Type	Sine wave

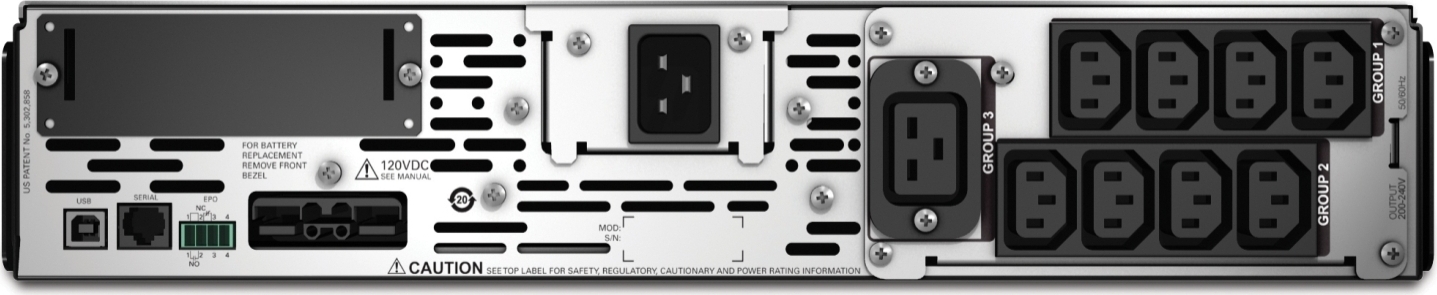

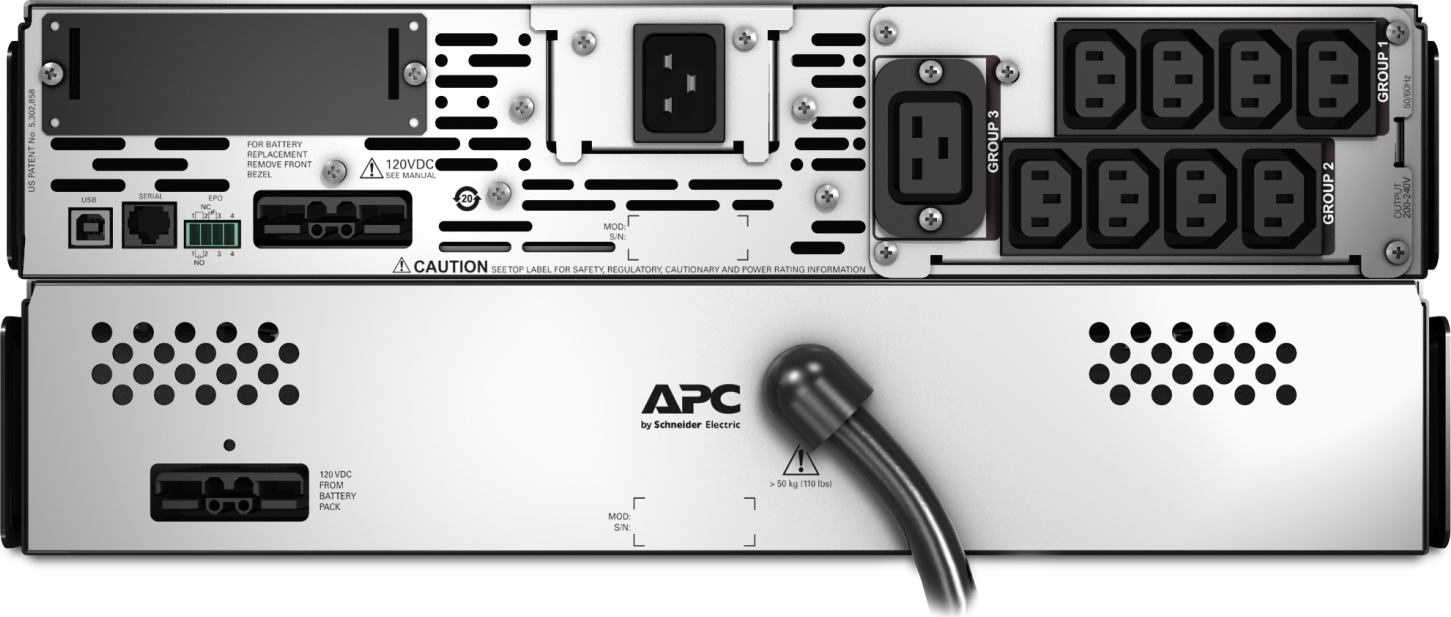

Output Connections	(8) IEC 320 C13 (1) IEC 320 C19 (2) IEC Jumpers
Input
Nominal Input Voltage	230V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	IEC-320 C20 Schuko CEE 7 / EU1-16P British BS1363A
Cord Length	6 feet (1.83 meters)
Input voltage range for main operations	140 - 280V
Other Input Voltages	208, 220, 240
Transfer Time	2-4 ms
Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time	3 hour(s)
Extended Run Options	APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
RBC™ Quantity	1
Replacement Battery	APCRBC117

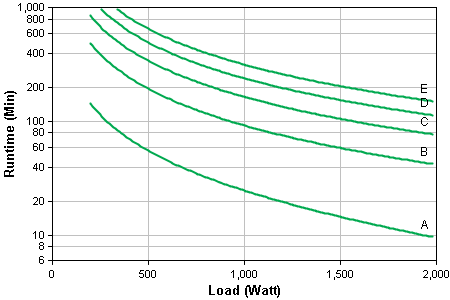

Runtime Graph Curve Part Number(s) A SMX2200RMHV2U B SMX2200RMHV2U  + (1)SMX120RMBP2U C SMX2200RMHV2U  + (2)SMX120RMBP2U D SMX2200RMHV2U  + (3)SMX120RMBP2U E SMX2200RMHV2U  + (4)SMX120RMBP2U	Hover over the line on the graph above to view the runtime at any desired load Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Energy Use/Efficiency

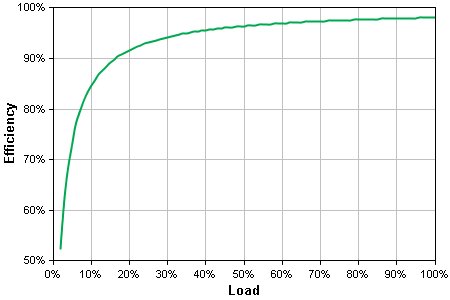

Load Efficiency 25% 93.2% 50% 96.4% 75% 97.5% 100% 98.1%	Hover over the line on the graph above to view the efficiency at any desired load Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)	SmartSlot
Available SmartSlot™ Interface Quantity	1
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Yes
Surge Protection and Filtering
Surge Energy Rating	645 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection	--
Physical
Maximum Height	3.36 inches (85 mm)
Maximum Width	17.00 inches (432 mm)
Maximum Depth	26.26 inches (667 mm)
Net Weight	82.10 lbs. (37.32 kg)
Shipping Weight	99.79 lbs. (45.36 kg)
Shipping Height	9.58 inches (243 mm)
Shipping Width	23.48 inches (596 mm)
Shipping Depth	34.23 inches (869 mm)
Color	Black
Units per Pallet	8.00
# of Layers per Pallet	4
# of Units per Layer per Pallet	2
Pallet Weight	855.12 lbs. (388.69 kg)
Rack Height	2U
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	150.00 BTU/hr
Conformance
Regulatory Approvals	BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A
Standard Warranty	3 years repair or replace (excluding battery) and 2 year for battery,optional on-site warranties available,optional extended warranties available
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Contains No SVHCs
PEP	Available in Documentation tab
EOLI	Available in Documentation tab

Documentation:

Download the APC Smart-UPS XL Data Sheet (PDF).
