APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

Looking for Better Pricing? Please Contact Us for help!

APC Products

APC Smart-UPS Li-Ion

APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect

#SMTL1500RM3UC
Our Price: $3,355.00

More pricing below, click here!

APC Smart-UPS Li-Ion, Short Depth 750VA, 120V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

SMTL1500RM3UC At a Glance:

Increased capacity of 1350W
Total Cost of Ownership decreases up to 47%
Intelligent battery management system
Better battery performance up to 104°F
Switchable Outlet group
Remote management options
5-year warranty on UPS and internal batteries

Alphanumeric LCD Display Intuitive interface provides detailed and accurate information with ability to configure locally-function LCD display
Built-in energy meter Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Flash upgradeable firmware Allows for field updates of firmware via communication ports or Network Management Card (NMC)

Switchable outlet group Ability to control a group of output load receptacles independent from the main UPS.

Enables:

Cycling the entire UPS
Sequenced turn ON/OFF
Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
Scheduled time OFF to conserve energy
Rebooting hung device without

SMTL1500RM3UC Features

Cold-start capable	Provides temporary battery power when the utility power is out.
Energy meter	Provides actual kilowatt hours of usage for energy conscious users.
Green mode	Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency	Reduces utility costs, generates less heat.
Lithium-ion battery	Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Predictive replace battery date	Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery	Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Short-depth rack compatibility	Compact design fits comfortably in short-depth rack applications.
Single switched outlet group	Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect	Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot	Customize UPS capabilities with management cards.
Temperature-compensated battery charging	Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits:

Safety
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
Smarter productivity with ability to tailor to your specific application needs	Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Peace of mind that comes with full equipment compatibility and reliability of a leader	Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management	Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Save time with easy and convenient remote accessibility	Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Avoids costly power problems by keeping your IT equipment and data safe and available	Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Serviceability
Battery failure notification	Provides early-warning fault analysis on batteries enabling timely preventive maintenance
User-replaceable batteries	Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification	Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers	Enables a quick recovery from overload events.
Adaptability
Adjustable voltage-transfer points	Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity	Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Availability
Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning	Protects connected loads from surges, spikes, lightning, and other power disturbances.
Boost and Trim Automatic Voltage Regulation (AVR)	Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Automatic restart of loads after UPS shutdown	Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Temperature-compensated battery charging	Prolongs battery life by regulating the charge voltage according to battery temperature.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Manageability
LED status indicators	Quickly understand unit and power status with visual indicators.
Audible alarms	Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Network manageable	Provides remote power management of the UPS over the network.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
USB connectivity	Provides management of the UPS via a USB port (not available on all models).
Serial connectivity	Provides management of the UPS via a serial port.

Product Views:

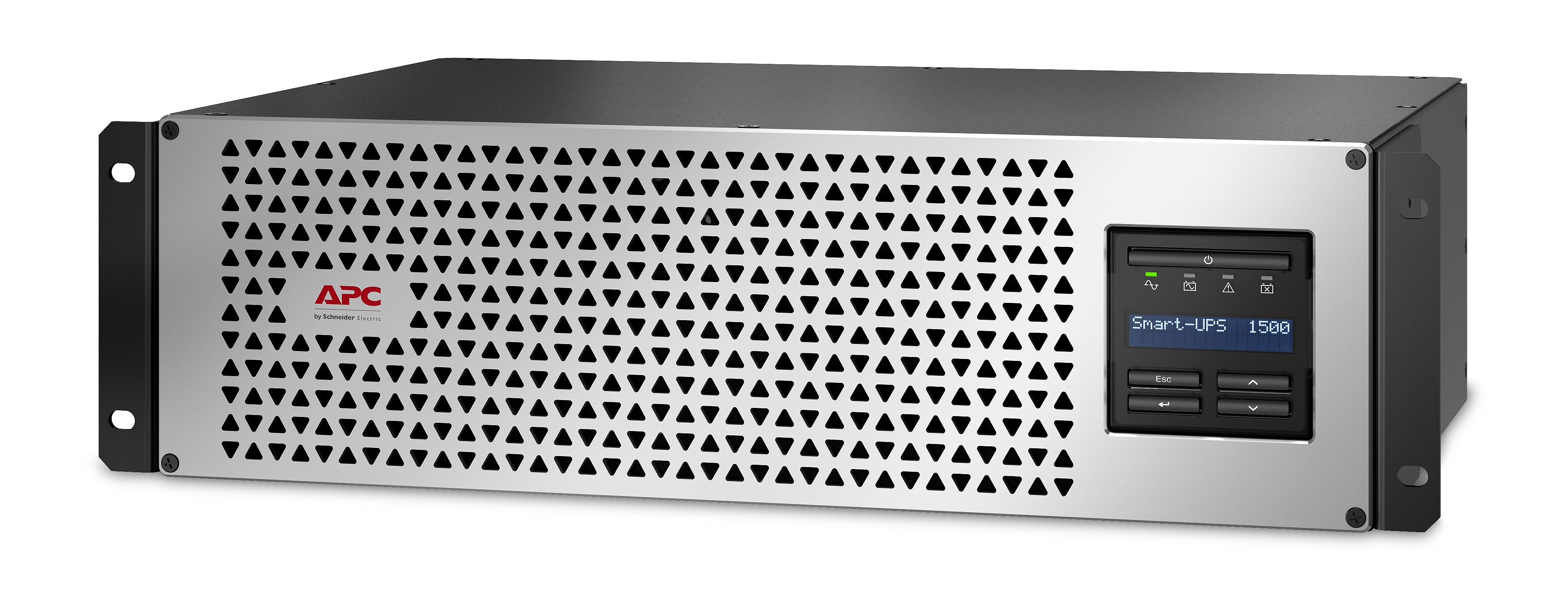

Left Angle View

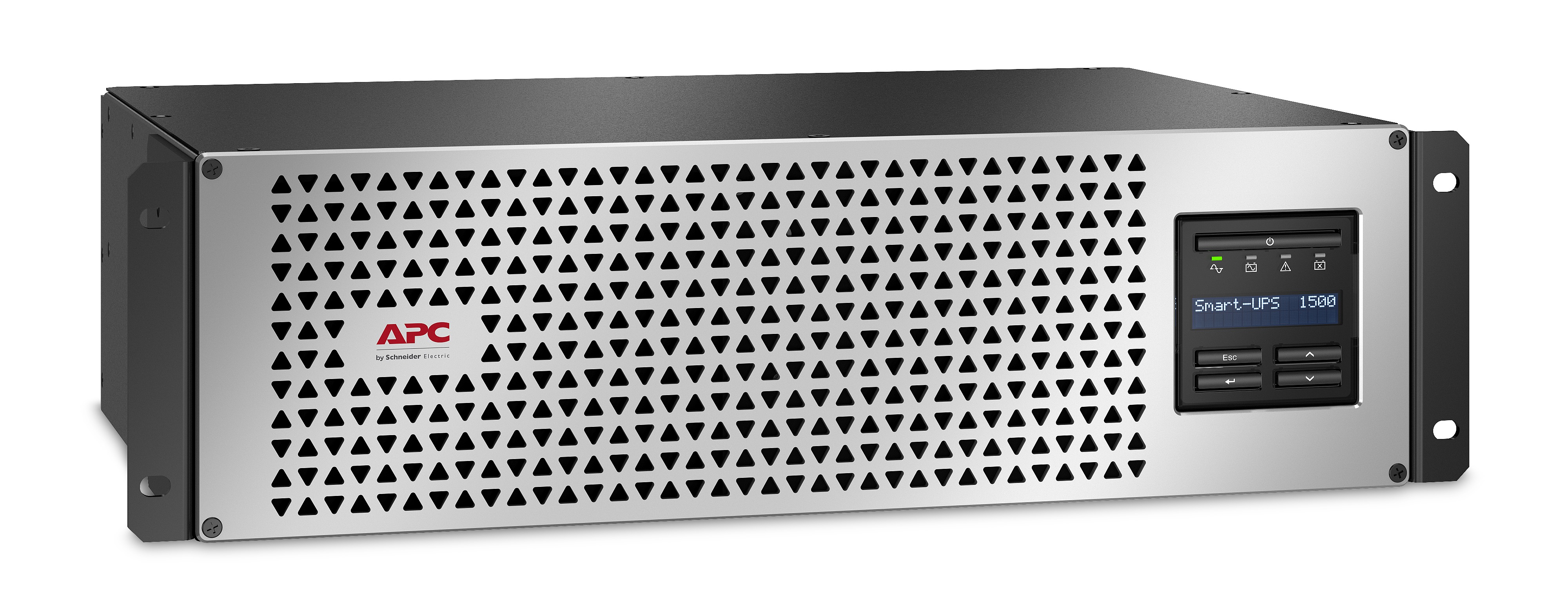

Right Angle View

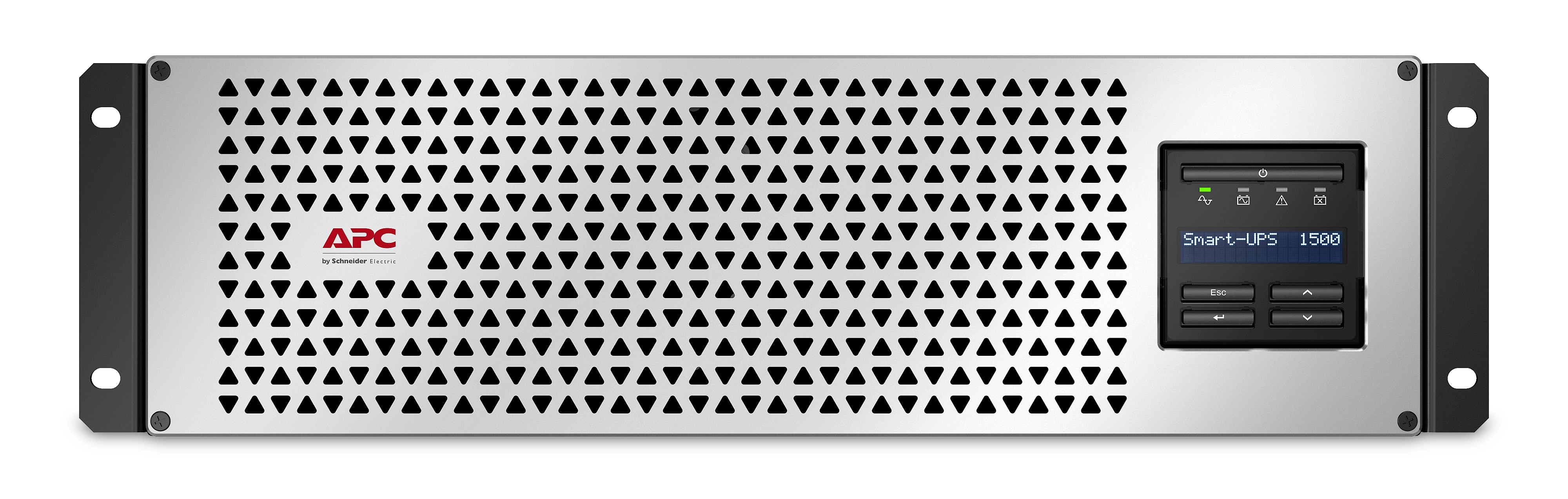

Front View

Technical Specifications:

Output
Output Power Capacity	1.35kWatts / 1.44kVA
Max Configurable Power (Watts)	1.35kWatts / 1.44kVA
Nominal Output Voltage	120V
Output Voltage Distortion	Less than 5%
Output Frequency (sync to mains)	50/60Hz +/- 3 Hz
Topology	Line Interactive
Waveform type	Sine wave
Output Connections	(6) NEMA 5-15R (Battery Backup)
Transfer Time	6ms typical : 10ms maximum
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connections	NEMA 5-15P
Cord Length	8ft (2.44meters)
Input voltage range for main operations	82 - 144V
Input voltage adjustable range for mains operation	75 - 154V
Number of Power Cords	1
Batteries
Battery Type	Li-ion
Typical recharge time	2 hour (s)
Expected Battery Life (years)	5 - 10
Battery Volt-Amp-Hour Capacity	310
Communications & Management
Control panel	Multi-function LCD status and control console
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity	1
Surge Protection and Filtering
Surge energy rating	680Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	5.14inches (131MM, 13.1CM)
Maximum Width	17.25inches (438MM, 43.8CM)
Maximum Depth	11.89inches (302MM, 30.2CM)
Rack Height	3U
Net Weight	43.0lbs. (19.5KG)
Shipping Weight	50.0lbs. (22.68KG)
Shipping Height	11.0inches (279MM, 27.9CM)
Shipping Width	23.0inches (584MM, 58.4CM)
Shipping Depth	17.64inches (448MM, 44.8CM)
Units per Pallet	12.0
Environmental
Operating Temperature	32 - 104 °F (0 - 40 °C)
Operating Relative Humidity	0 - 95 (non-condensing) %
Operating Elevation	0-10000ft (0-3000meters)
Storage Temperature	-40 - 35 °C
Storage Relative Humidity	0 - 95 (non-condensing) %
Storage Elevation	0-25000ft (0-7500meters)
Audible noise at 1 meter from surface of unit	45.0dBA
Online thermal dissipation	135.0BTU/hr
Protection Class	IP 20
Conformance
Approvals	CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Equipment protection policy	Lifetime : $150000
Standard Warranty	5 year repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Contains No SVHCs
Battery Directive	Compliant

SKU technical specifications

	SCL500RM1UC *SCL500RM1UCNC	SMTL750RM2UC	SMTL1000RM2UC	SMTL1500RM3UC
Topology	Line Interactive
Output
Output power capacity	400 Watts / 500 VA	600 Watts / 750 VA	800 Watts / 1000 VA	1350 Watts / 1500 VA
Nominal output voltage	120V
Output voltage distortion	Less than 5% at full load
Output frequency (sync to mains)	50/60 Hz +/- 3 Hz (auto sensing)
Waveform type	Sine Wave	Pure Sine Wave
Output connections	(4) NEMA 5-15R	(6) NEMA 5-15R
Switched outlet group	Yes/One
Efficiency at full load	>96%
Input
Nominal input voltage	120V
Input frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input connections	NEMA 5-15P
Input voltage range for main operations	92 – 139Vac	82 – 144Vac
Batteries
Battery type	Lithium-ion (LiFePo4)
Communications and management
Interface port(s)	USB Type A, APC SmartConnect (RJ45) – only on the “C” suffix model	Serial (RJ45), SmartSlot, USB, APC SmartConnect (RJ45)
Available SmartSlot™ interface quantity	0, *embedded Network Management Card in “NC” suffix model	1
Control panel	LED display	Multi-function LCD status and control console
Audible alarms	Yes
Physical
Net HxWxD (in inches)	1.75 x 17 x 9.14	3.39 x 17.25 x 12.5	3.39 x 17.25 x 12.5	5.14 x 17.25 x 12
Rack height	1U	2U	2U	3U
Net weight	9.2 lbs	34 lbs	36 lbs	43 lbs
Shipping weight	14.2 lbs	39 lbs	41 lbs	50 lbs
Shipping HxWxD (in inches)	6.6 X 23.2 X 13.3 for both	9 x 23 x 18.6	9 x 23 x 18.6	11 x 17.64 x 23
Color	Black [Silver front bezel]
Environmental
Operating environment	32 – 104 °F (0 – 40 °C)
Operating relative humidity	0 – 95%
Operating elevation	0-10000 feet (0-3000 meters)
Storage temperature	-15 to 45 °C (-30 to 70°C without batteries)
Storage relative humidity	0 – 95%
Storage elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	45.0dBA
Conformance
Regulatory approvals	UL 1778, UL 1973, CSA, NOM
Standard warranty	5-Year UPS and batteries

Documentation:

Download the APC Smart-UPS Lithium-ion Product Overview Brochure (PDF).
