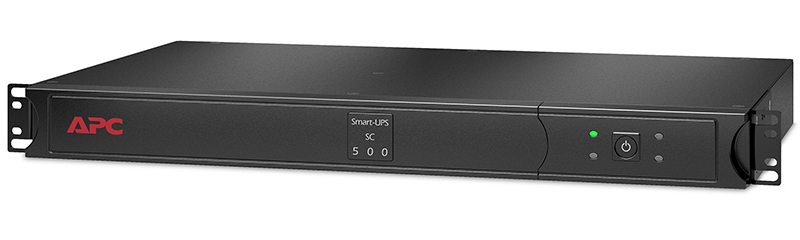

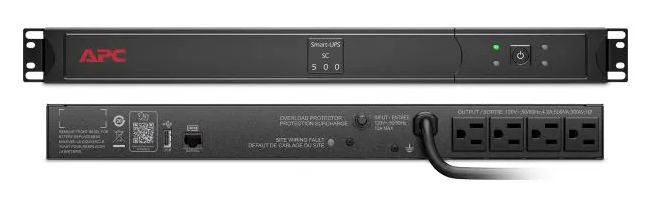

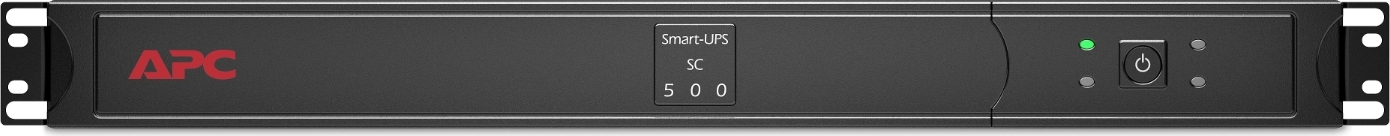

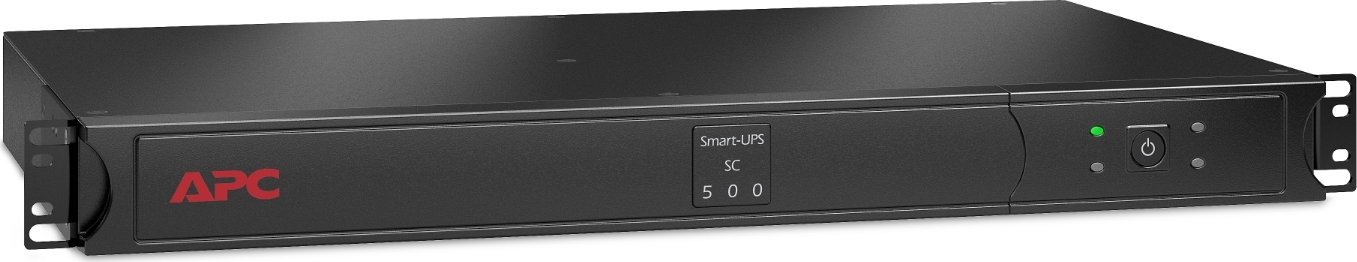

APC Smart-UPS 500VA 120V - 1U Rackmount/Tower
APC Smart-UPS, Line Interactive, 500VA, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth

Best solution for poor power regions and applications requiring longer runtimes.

Help protect your essential equipment

APC Smart-UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. With a 300-Watt power capacity and four battery and surge protected outlets, the Smart-UPS SC500RM1U is ideal for the home office or small businesses. This short-depth model is rack mountable and easy-to-install in tight locations.

• Instant backup battery power during an outage
• Four battery and surge protected outlets
• Helps protect electronic equipment from harmful power conditions
• Short-depth
• Rack mountable
• LED display lets you quickly view unit and power status
• PowerChute software provides graceful network shutdown

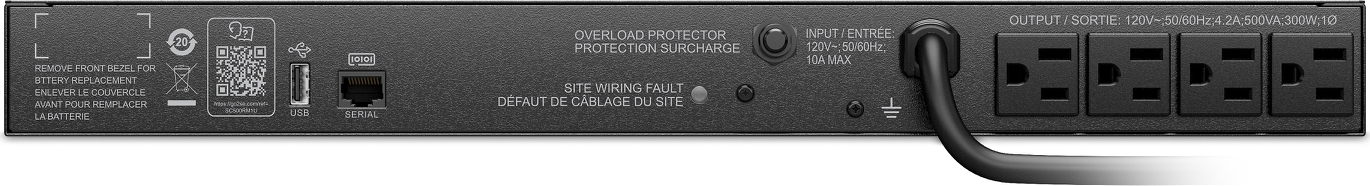

• Site wiring fault indicator
• Overload protection
• Two-year limited warranty
• $150,000 equipment policy protection

Features & Benefits:

Improved energy efficiency

Saves money on utility and cooling costs while reducing your business's carbon footprint. SC500RM1U model meets DoE energy efficiency requirements.

Battery management

Periodic self-test helps detect any batteries that need to be replaced, ensuring optimal runtime.

LED status display

UPS status display with On-Line, On-Battery, Replace Battery and Overload indicators

Higher power density

Increased power density with a smaller footprint compared to previous Smart-UPS SC model.

Flexible, short-depth rackmount

Fits shallow depth and regular racks, giving you extra space for cable management

Built-in manageability for your UPS

Graceful system shutdown of connected equipment during an extended power outage or computer problem with PowerChute software.

Technical Specifications:

Output
Output Power Capacity	500 VA / 300 W
Max Configurable Power	500 VA / 300 W
Nominal Output Voltage	120 V
Frequency	47~63 Hz
Waveform Type	Simulated Sine Wave
Output Connections	(4) NEMA 5-15R
Efficiency at full load	>98%
Input
Nominal Input Voltage	120V
Input Frequency	57~63 Hz at 60 Hz / 47~53 Hz at 50 Hz
Input Connections	NEMA 5-15P
Cord Length	8 feet
Default Input voltage range for Utility operation	75V~154V
Batteries & Runtime
Battery Type	Valve Regulated Lead Acid (VRLA)
Runtime (Full load/ Half load)	VRLA) Runtime (Full load/ Half load)
Replacement Battery	APCRBC189
Communications & Management
Interface Port(s)	USB Type A, Serial (RJ45)
Software Compatibility	PCBE 10.0 and later
Physical
Form Factor	Rack
Height	1.73 in (44 mm)
Width	17.32 in (440 mm)
Depth	10.55 in (268 mm)
Rack Height	1U
Net Weight	15.7 lbs
Shipping Weight	19.2 lbs
Shipping HxWxD	5.5 x 19.7 x 13.1 in
Color	Black
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%, non-condensing
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%, non-condensing
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	< 40 dBA at one meter
Conformance
Regulatory Approvals	UL1778 5th, FCC Part 15 Class A
Standard Warranty	2 years repair or replace

Documentation:

Download the APC SC500RM1U Data Sheet (PDF).
