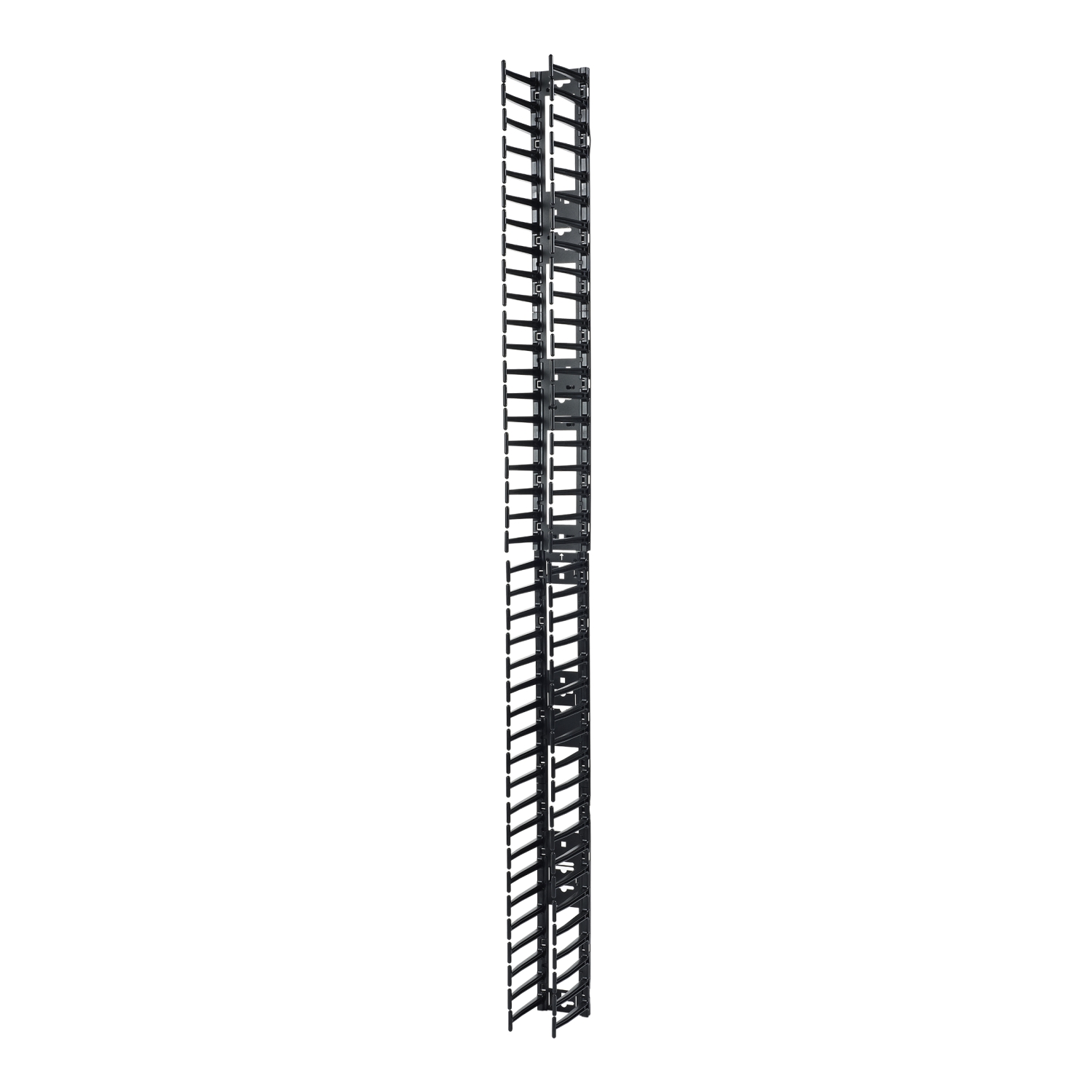

APC NetShelter Cable Manager, for 42U 750W NetShelter SX (AR7580A)

Vertical, 1778H x 97W x 160D mm.

SKU: AR7580A
  • Specs:
  • Includes: Installation guide|Mounting Hardware|6 x Cable retainers with snap hinges|Top securing bracket

Better pricing available. Our experts can help you secure the lowest rate on this model. Talk to an expert →

Request a Quote
  • Fast shipping — same-day processing before 4:15 pm PST
  • Authorized Reseller — Serving customers 20+ years
  • Call for Bulk Pricing
APC Products
APC NetShelter Cable Management
APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm
#AR7580A
Our Price: $519.00
Product Overview

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm

The AR7580A is designed to provide ironclad protection for your critical infrastructure.

RoHS Compliant
APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm Front View

Key Features

  • Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.-Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
  • Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings.-Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings.
  • Dedicated cable manager for each enclosure height-Dedicated cable managers for each enclosure height 42U, 45U, and 48U, provide the maximum u-space coverage. Optional covers will match cable manager height to provide full coverage over the entire height of the enclosure.
  • Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.-Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.
  • Optional hinging left or right covers-Covers (not provided) install quickly without tools and include two easy to use latches that allow the cover to open to the left or right. The covers hide the cabling to keep the enclosure space neat for future maintenance and an clean aesthetic.

Ideal Applications

As a premier offering in the APC NetShelter Cable Management lineup, the AR7580A provides rock-solid reliability for Racks and Accessories environments.

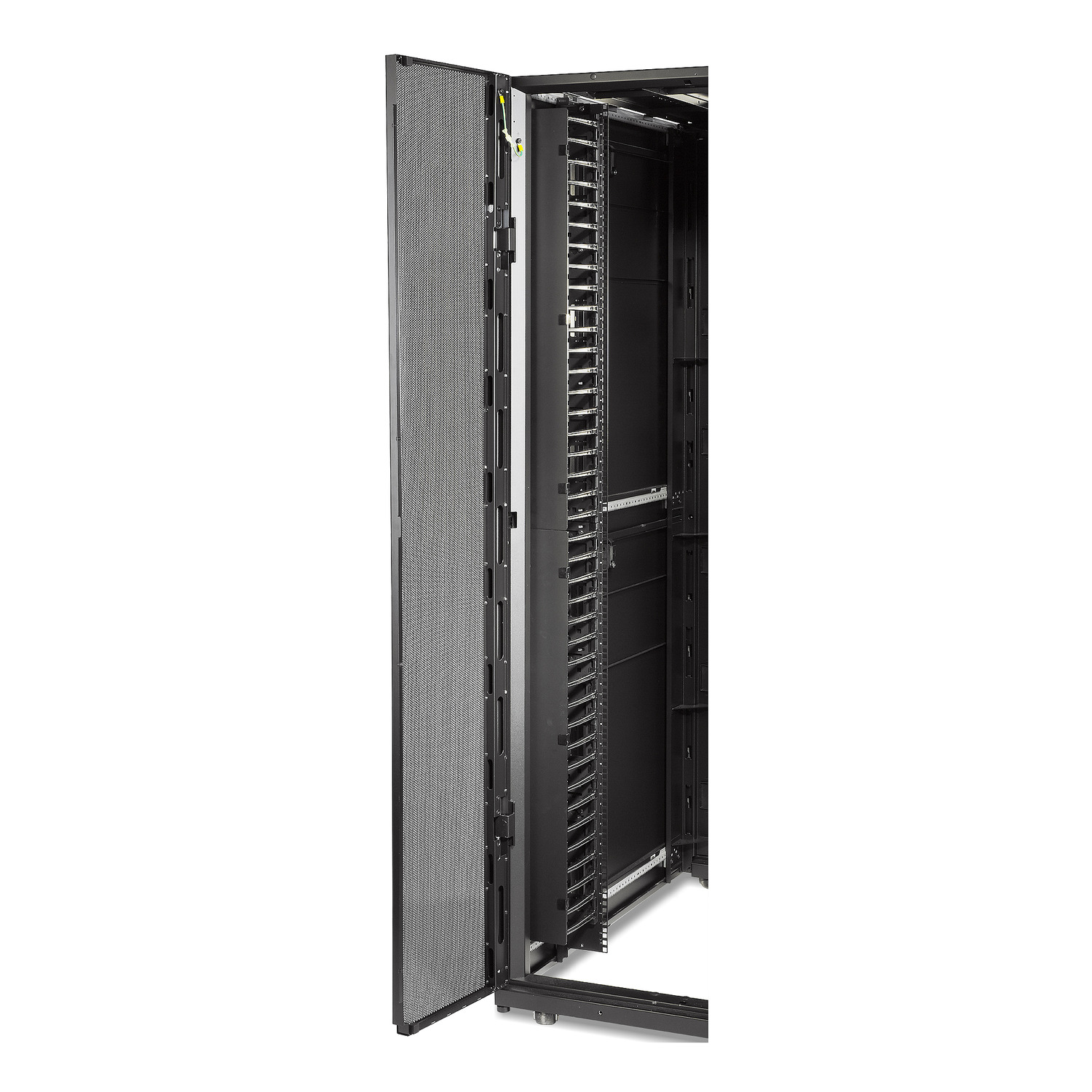

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm Back View
Key Details

Features & Benefits

Explore the technical advantages and comprehensive protection policies that make the AR7580A a rock-solid choice for your infrastructure.

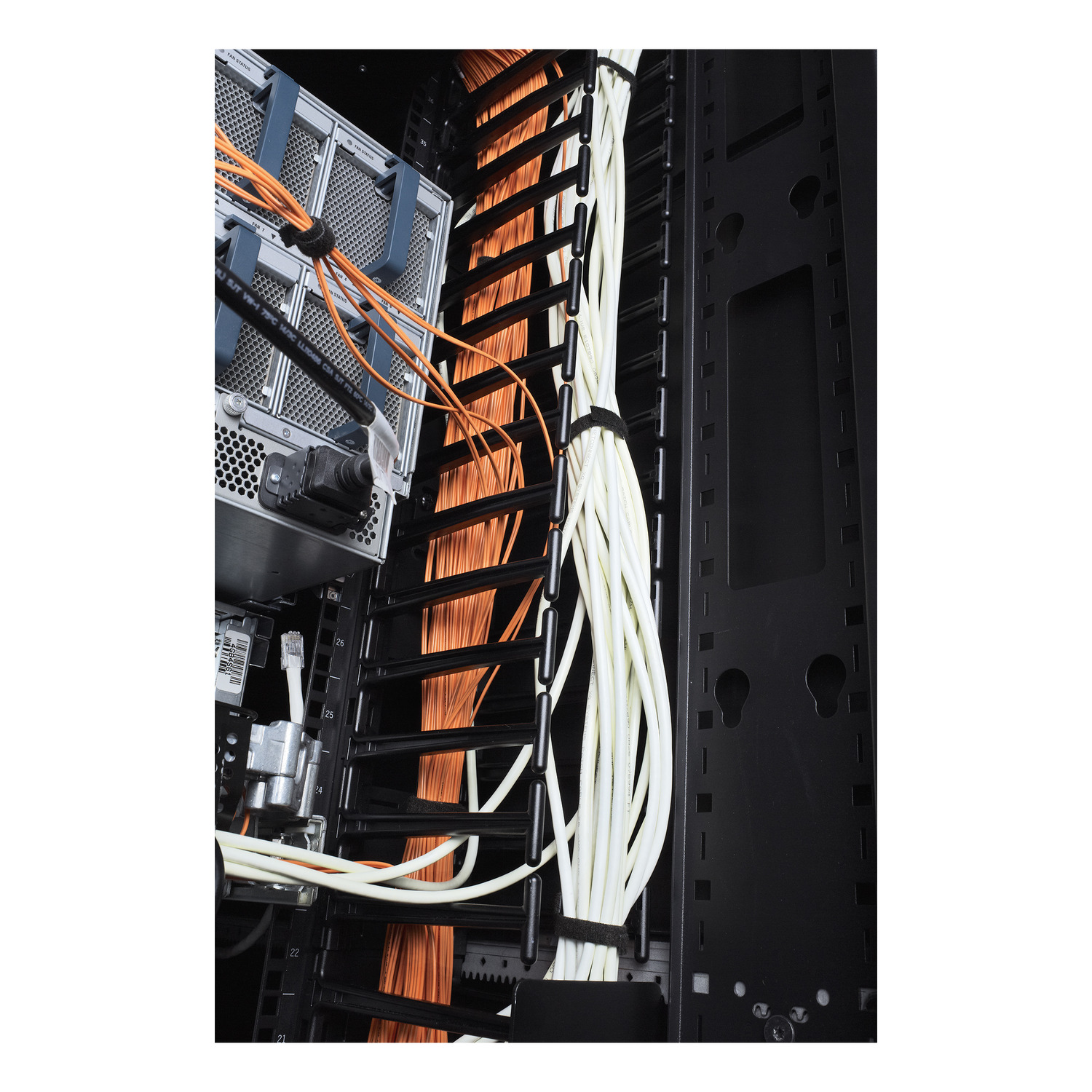

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm Hardware Detail

Features and Benefits for AR7580A

NetShelter Cable Management provides a comprehensive selection of accessories to organize power or data cables within a server rack.

  • This vertical cable manager for the NetShelter SX series 42U and 750mm Wide provides maximum U-space coverage.
  • It supports 190 to 250 CAT 6A/CAT 6 data cables per section and 190 CAT 6A per channel section.
  • Easily secure and access cabling with toolless mounting on the backplate for accessories and snap hinge cable retainers.
  • The vertical channels have smooth plastic fingers at 1U increments to allow patch cords to enter and exit in an organized manner.
  • Each kit covers one corner of the enclosure and includes mounting hardware, 6x cable retainers with snap hinges and top securing bracket.

Protection & Warranty

Equipment Protection Policy

Lifetime protection policy available.

Standard Warranty

Core product: 24 month(s)

Talk to an Expert →
Technical Details

Hardware Specifications

Comprehensive physical, electrical, and environmental data for the AR7580A to ensure compatibility with your deployment.

General

UPC/EAN731304300816
Product RangeAPC NetShelter Cable Management

Physical

Height70.00 in (1778 mm)
Width3.82 in (97 mm)
Depth6.30 in (160 mm)
Weight9.02 lb(US) (4.09 kg)

Additional Product Views

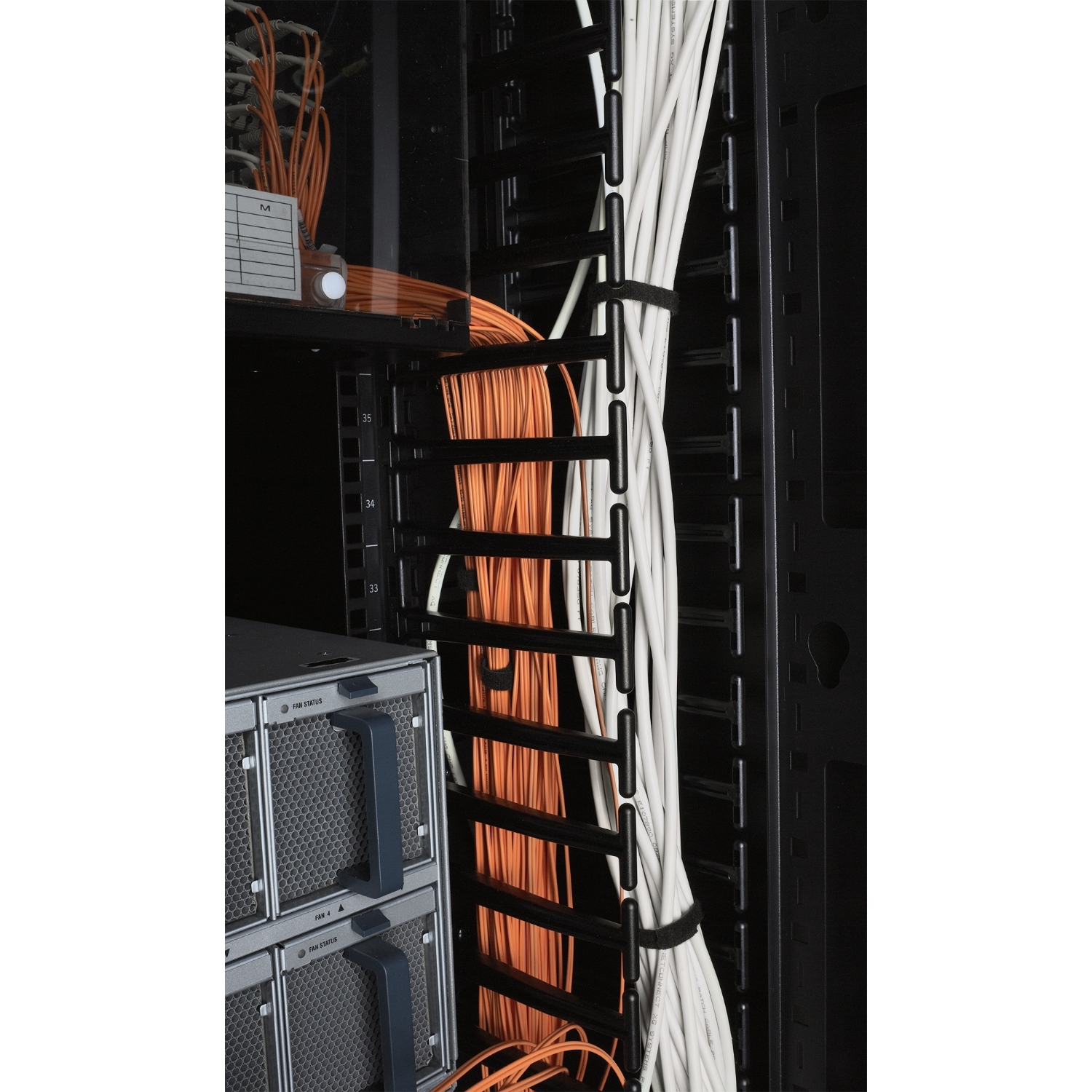

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm View 4

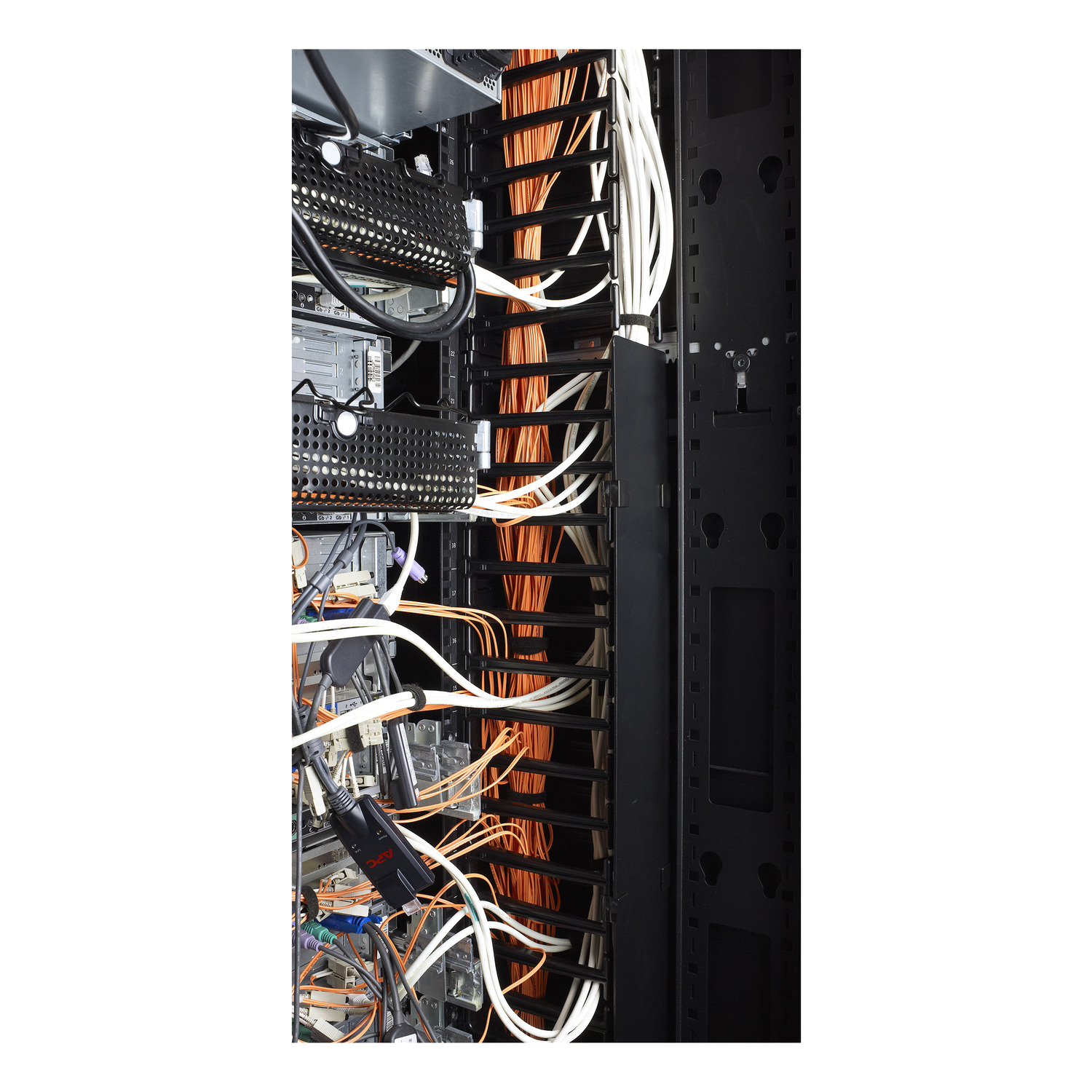

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm View 5

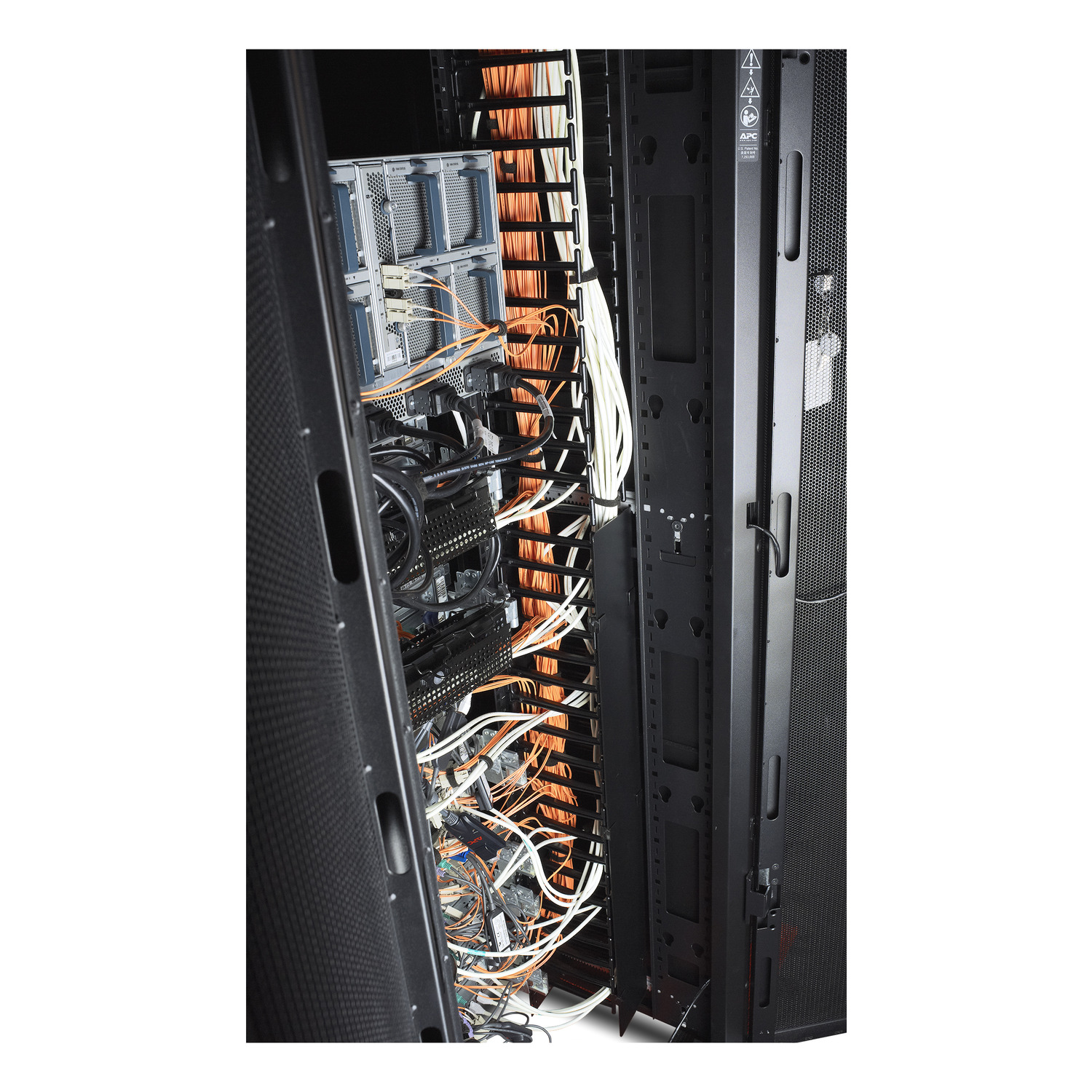

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm View 6

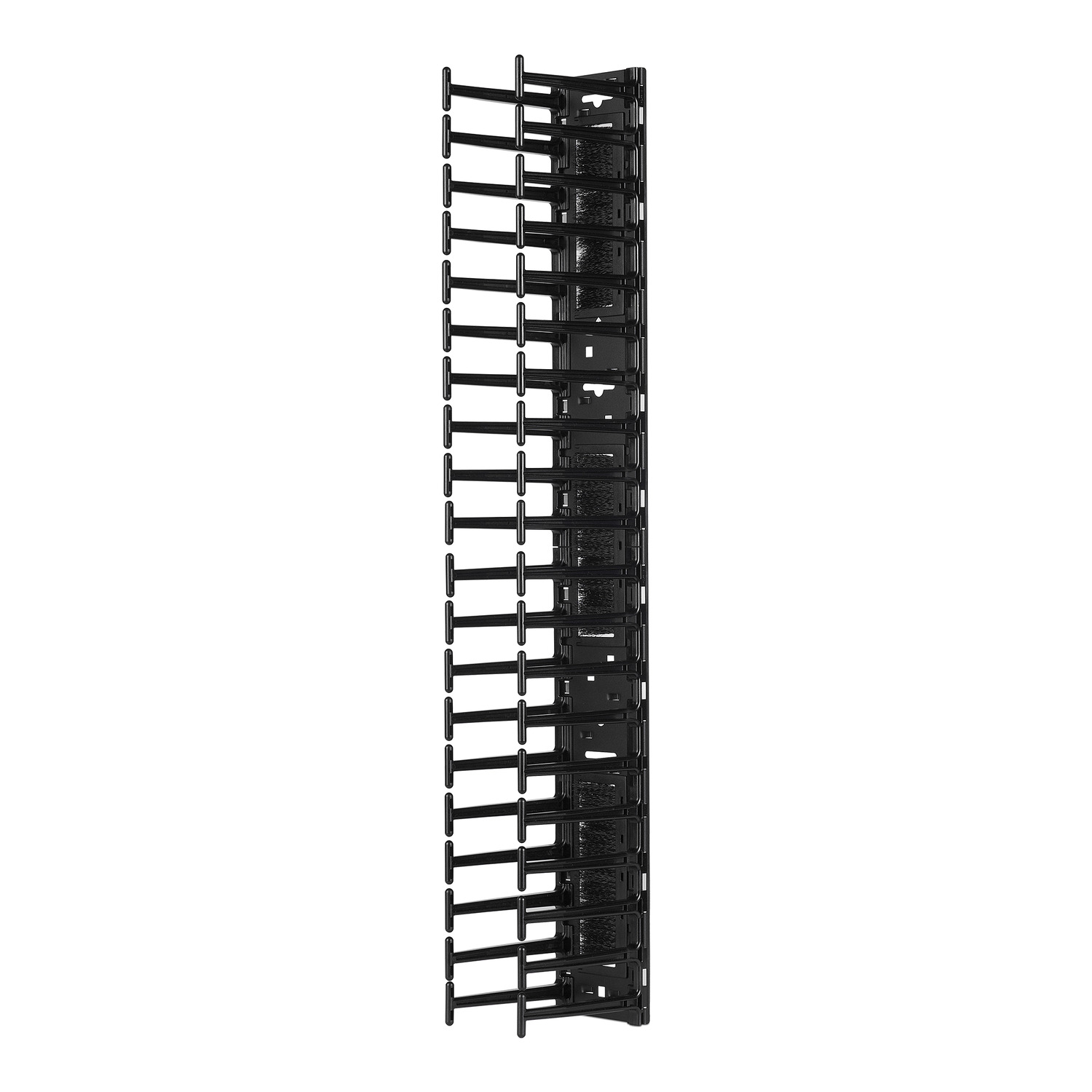

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm View 7

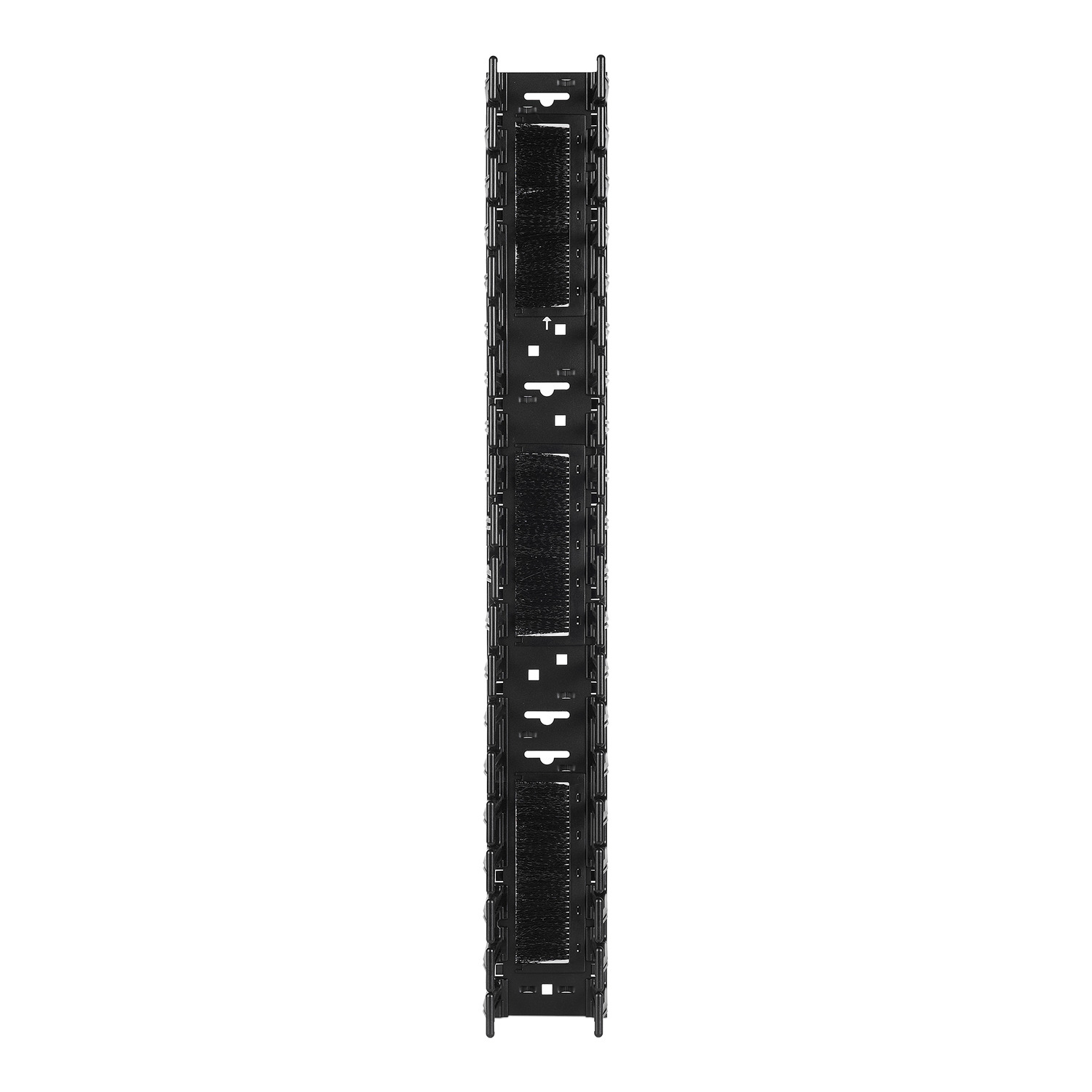

APC NetShelter Cable Manager, for 42U 750W NetShelter SX, Vertical, 1778H x 97W x 160D mm View 8
Product Comparison

Compare Similar Models

See how the AR7580A stacks up against other models in the APC NetShelter Cable Management series.

Model
AR7580A
AR8775
AR8725
AR8163ABLK
Form Factor
no preference
no preference
no preference
no preference
Warranty
Core product: 24 month(s)
Core product: 24 month(s)
Core product: 24 month(s)
Core product: 24 month(s)
Downloads

Documentation & Compliance

Access user manuals, datasheets, and environmental profiles for the AR7580A.
