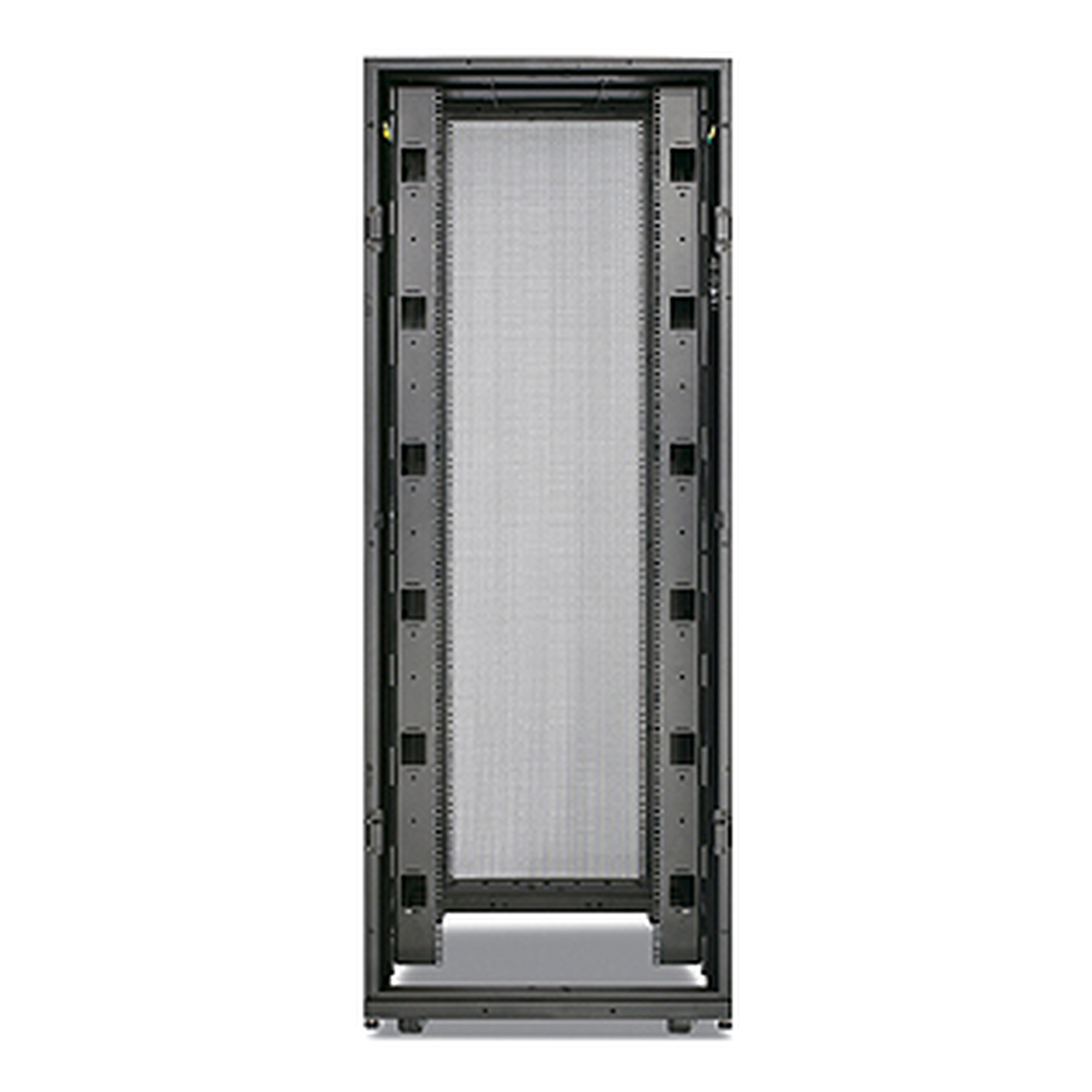

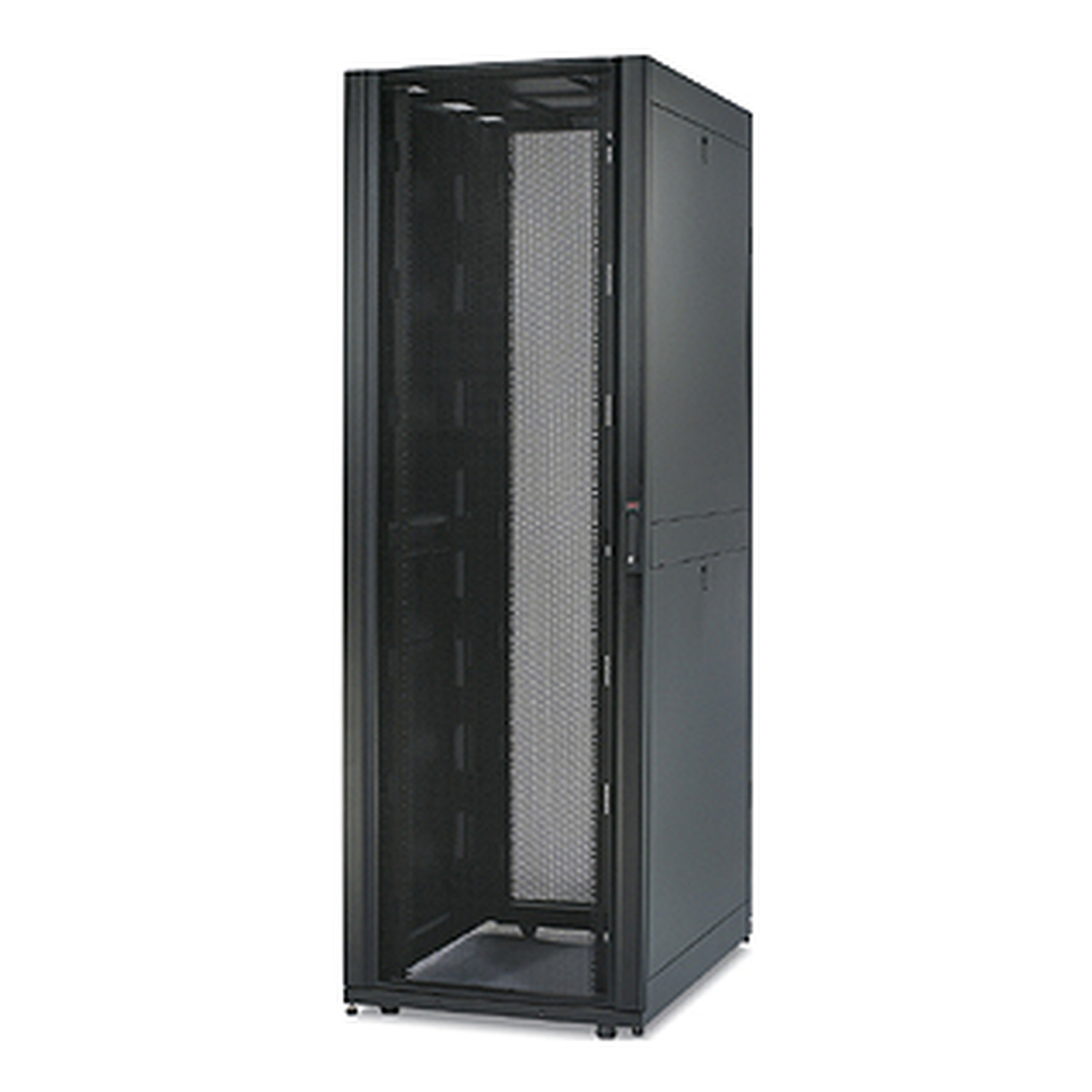

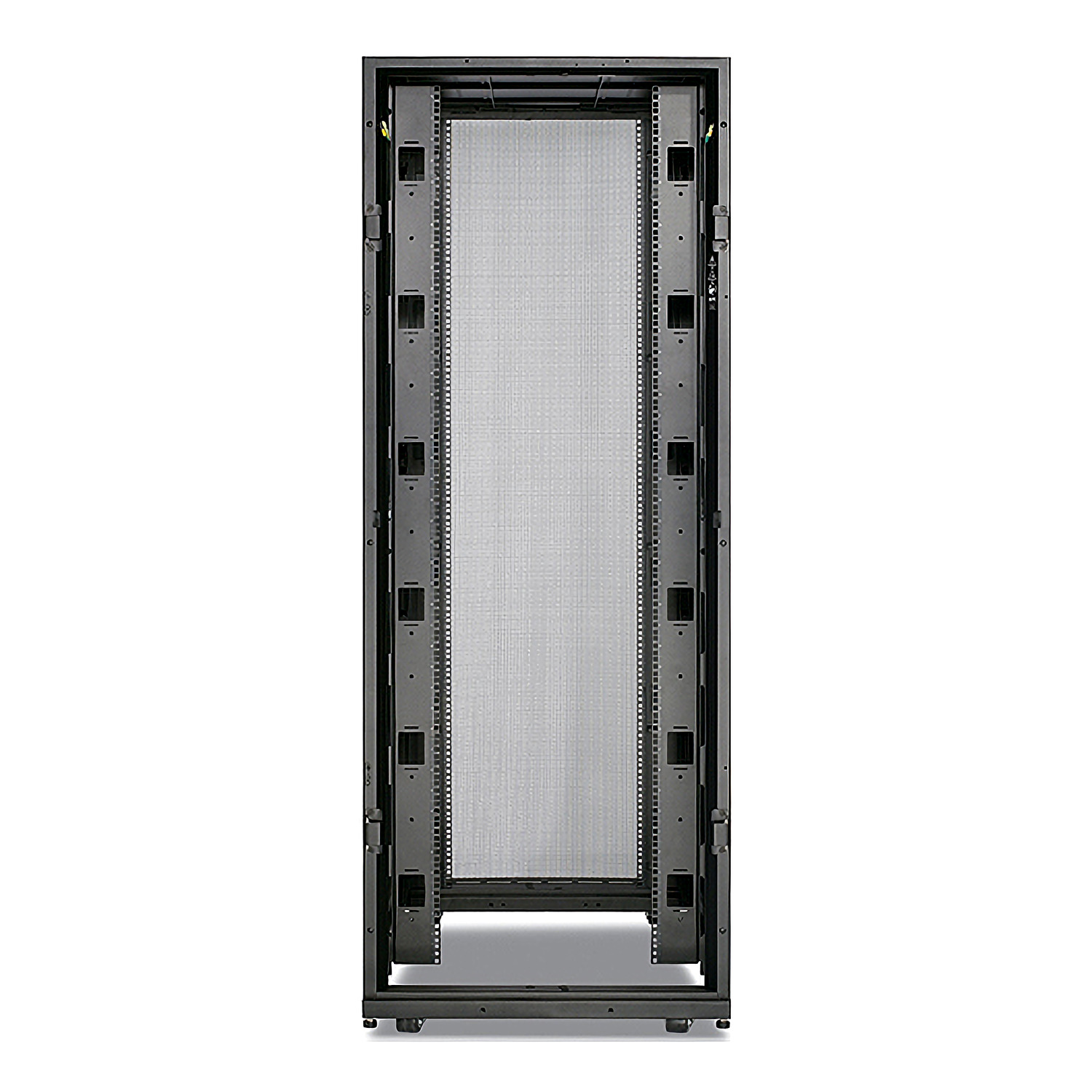

APC NetShelter SX, Server Rack Enclosure (AR3150HACS)

Key Features

• Casters-Provides flexibility to move the unit to wherever cooling is required.
• The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.-The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
• Protective grounding provisions-Safety protection against electric shock and reduction of EMI emissions. NetShelter Enclosures incorporate a series of ground studs within each enclosure, providing adequate means for grounding all loose sheet metal panels and/or internally rack-mounted equipment.
• Reversible doors-In situations where it is desirable for the front door to open from the opposite side, doors can be detached and reversed.
• Ships fully assembled-NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.
• Split rear doors-Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing.
• UBC Zone 4 Compliant-NetShelter VX Enclosures are UBC (Uniform Building Code) Zone 4 compliant if used in conjunction with the APC bolt down bracket kit (part # AR8112BLK).
• Door ventilation exceeds 830 in2 (5355 cm2)-Adequate ventilation is required for proper operation of today's servers. NetShelter Enclosures include fully perforated front and rear doors to provide ample ventilation for servers and networking equipment. The perforation pattern provides 844 square inches of open area on the front door, exceeding requirements set forth by major server manufacturers. Although this ventilation pattern provides adequate cooling for most configurations, air-moving accessories such as the Schneider Electric Air Distribution Unit and Air Removal Unit are also available to support higher heat density applications.
• Adjustable mounting depth-Vertical mounting rails are adjustable for equipment with various mounting depths.
• Guaranteed Compatability-Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter IT enclosure.
• Rolls through a 2 meter doorway-APC has made installation fast and easy by designing the SX enclosure such that it rolls through standard 2 meter doorways. This feature does not apply to the 48U versions of the SX.
• Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.-Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
• Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.-Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.
• Quick release doors-Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.
