AP9567

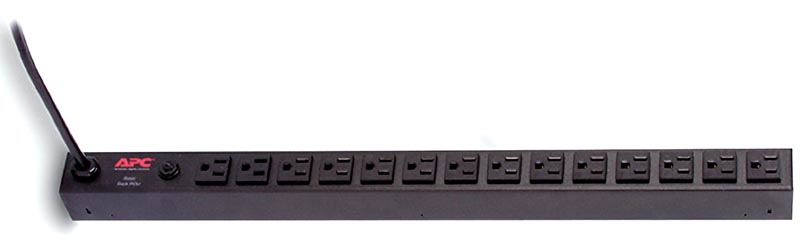

APC NetShelter Basic Rack PDU, 0U, 15A, 100/120V, 14 NEMA 5-15 outlets
Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC NetShelter Basic Rack PDUs
APC NetShelter Basic Rack PDU, 0U, 15A, 100/120V, 14 NEMA 5-15 outlets
#AP9567
Our Price: $339.99
Our Price: $339.99
More pricing below, click here!
Overview
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
- Reliable rack power distribution to power servers, switches, and network devices
- Vertical Basic PDU is rack mountable
- Input: NEMA 5-15P
- Outlets: (14) NEMA 5-15R
- Ultralow-profile, space-saving design
Features & Benefits:
High outlet density
- Allows customers to connect plenty of equipment without overcrowding the rack
Reliable, cost-effective design
- Built for dependable power distribution with features like hydraulic-magnetic, ultra-low profile circuit breakers, and locking outlets
Different outlet types
- Provides customer flexibility for diverse IT equipment with C13, C19, and NEMA outlet types
Single branch whip power input
- Allows power to be supplied to multiple devices using a one branch whip, making setup quicker
Applications
- Small to mid-sized data centers
- Server rooms and network closets
- Branch office and remote sites
- Colocation Facilities
Technical Specifications:
| Main | |
| Color | Black |
| Product or Component Type | PDU |
| PDU Type | Basic |
| Cord length | 11.98 ft (3.65 m) |
| Number of cables | 1 |
| Provided Equipment | Installation guide Rack Mounting brackets Toolless Mounting Kit |
| Complementary | |
| Input Voltage | 100 V 120 V |
| Height | 24.02 in (610 mm) |
| Width | 1.7 in (44 mm) |
| Output Voltage | 100 V 120 V |
| Depth | 1.7 in (44 mm) |
| Net Weight | 4.81 lb(US) (2.18 kg) |
| Mounting Location | Side |
| Mounting preference | No preference |
| Input Plug Type | NEMA 5-15P |
| Mounting Mode | Rack-mounted |
| Rack units | 0U |
| Mounting position | Vertical |
| Line Rated Current | 12 A |
| permissible voltage | 100…125 V |
| Input current limits | 15 A |
| Load Capacity | 1400 VA |
| Input Frequency | 50/60 Hz |
| Outlet type and quantity | 14 NEMA 5-15R |
| Environment | |
| Product Certifications | cUL Listed METI Denan UL Listed |
| Ambient Air Temperature for Operation | 32…113 °F (0…45 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0…15240 m) |
| Ordering and shipping details | |
| GTIN | 731304207061 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 25.5 in (64.8 cm) |
| Package 1 Width | 6.0 in (15.2 cm) |
| Package 1 Length | 7.008 in (17.8 cm) |
| Package weight(Lbs) | 6.44 lb(US) (2.92 kg) |
| Contractual warranty | |
| Warranty (in months) | 24 |
Pricing Notes:
- Pricing and product availability subject to change without notice.
- Note: Shipping charges may vary depending on the selected unit's weight or the quantity of units selected. As a result, the shipping charges may change from the value you receive at checkout. A customer representative will confirm these changes with you if they occur before processing your order.
