AP9565

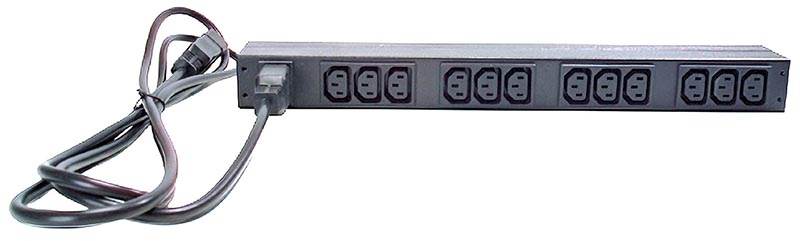

APC NetShelter Basic Rack PDU, 1U, 1 phase, 3.7kW 230V 16A or 3.3kW 208V 16A, 12 C13 outlets, C20 cord
Includes: Installation guide, Rack Mounting brackets
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC NetShelter Basic Rack PDUs
APC NetShelter Basic Rack PDU, 1U, 1 phase, 3.7kW 230V 16A or 3.3kW 208V 16A, 12 C13 outlets, C20 cord
#AP9565
Our Price: $279.99
Our Price: $279.99
More pricing below, click here!
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center. The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
- Ideal for staffed sites and non-critical applications that need resilient single phase power distribution
- Sustainable performance backed by product environmental profile
- Frees up Uspace, installs easily with (12) C13 outlets for IT gear
- Protect against overloads and enables a quick recovery
- Durable design backed by a 2 year warranty
Features & Benefits:
High outlet density
- Allows customers to connect plenty of equipment without overcrowding the rack
Reliable, cost-effective design
- Built for dependable power distribution with features like hydraulic-magnetic, ultra-low profile circuit breakers, and locking outlets
Different outlet types
- Provides customer flexibility for diverse IT equipment with C13, C19, and NEMA outlet types
Single branch whip power input
- Allows power to be supplied to multiple devices using a one branch whip, making setup quicker
Applications
- Small to mid-sized data centers
- Server rooms and network closets
- Branch office and remote sites
- Colocation Facilities
Technical Specifications:
| Main | |
| Color | Black |
| Product or Component Type | PDU |
| PDU Type | Basic |
| Cord length | 8.17 ft (2.49 m) |
| Number of cables | 1 |
| Provided Equipment | Installation guide Rack Mounting brackets |
| Complementary | |
| Input Voltage | 200 V 208 V 230 V |
| Height | 1.7 in (44 mm) |
| Width | 17.6 in (447 mm) |
| Output Voltage | 208 V 230 V |
| Depth | 2.2 in (57 mm) |
| Net Weight | 4.52 lb(US) (2.05 kg) |
| Mounting Location | Front Rear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting Mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| Input current limits | 16 A |
| Load Capacity | 3680 VA |
| Input Frequency | 50/60 Hz |
| Outlet type and quantity | 12 IEC 60320 C13 |
| Environment | |
| Product Certifications | cUL Listed CE Queensland Australia UL Listed VDE |
| Standards | UL 60950 |
| Ambient Air Temperature for Operation | 32…113 °F (0…45 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0…15240 m) |
| Ordering and shipping details | |
| GTIN | 731304213055 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.8 in (7 cm) |
| Package 1 Width | 18.3 in (46.4 cm) |
| Package 1 Length | 9.02 in (22.9 cm) |
| Package weight(Lbs) | 8.007 lb(US) (3.632 kg) |
| Contractual warranty | |
| Warranty (in months) | 24 |
