AP8858

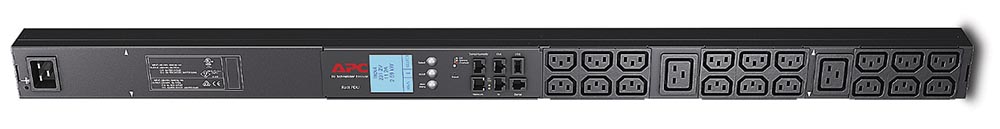

APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet

AP8858

Includes: Installation guide, Rack Mounting brackets, Serial configuration cable, Safety guide

Looking for Better Pricing? Please Contact Us for help!

APC Products
APC NetShelter Metered Rack PDU
APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet
#AP8858
Our Price: $889.00

More pricing below, click here!

Overview

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

  • Ideal for colocation, large or remote data center operators
  • Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
  • Enables improved energy efficiency and scope 1 and 3 emissions tracking
  • Easily monitor and manage through EcoStruxure IT and other platforms
  • 1-Year Secure Network Management Card subscription included

Features & Benefits:

Local Current Monitoring Display

  • Aggregate current draw per power distribution is displayed on the unit via a digital display.

Alarm Threshold

  • Customers define alarm thresholds to avoid overloaded circuits.

Remote Management Capabilities

  • Allows users to access, configure and manage units from remote locations to save time.

Rack mountable

  • Includes horizontal, vertical and toolless-mount options.

Applications

  • Data Centers and Server Rooms
  • Networking and Edge Computing Closets
  • High-Density IT Environments
  • Colocation Facilities

Technical Specifications:

Main
Color Black
Product or Component Type PDU
PDU Type Metered
Provided Equipment Installation guide
Rack Mounting brackets
Serial configuration cable
Safety guide
Complementary
Input Voltage 200 V
208 V
230 V
Height 35.5 in (902 mm)
Width 2.2 in (56 mm)
Output Voltage 100 V
200 V
208 V
230 V
Depth 1.7 in (44 mm)
Net Weight 6.46 lb(US) (2.93 kg)
Mounting Location Side
Mounting preference No preference
Input Plug Type IEC 60320 C20
Mounting Mode Rack-mounted
Rack units 0U
Mounting position Vertical
Line Rated Current 16 A
permissible voltage 100…240 V
Input current limits 20 A
Load Capacity 3300 VA
Input Frequency 50/60 Hz
Outlet type and quantity 18 IEC 60320 C13
2 IEC 60320 C19
Environment
Product Certifications METI Denan
VDE
Standards CSA C22.2 No. 60950
IEC 60950
UL 60950-1
Ambient Air Temperature for Operation 23…140 °F (-5…60 °C)
Relative Humidity 5…95 %
Operating altitude 0...10000 ft
Ambient Air Temperature for Storage -13…149 °F (-25…65 °C)
Storage Relative Humidity 5…95 %
Storage altitude 0…50000 ft (0…15240 m)
Ordering and shipping details
GTIN 731304277026
Country of origin IN
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 44.3 in (112.4 cm)
Package 1 Width 6.4 in (16.2 cm)
Package 1 Length 4.2 in (10.7 cm)
Package weight(Lbs) 9.240 lb(US) (4.191 kg)
Contractual warranty
Warranty (in months) 24
