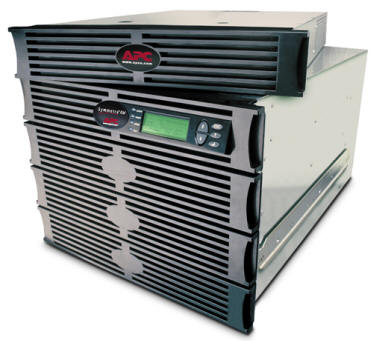

APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer
APC Symmetra, 1400 Watts / 2000 VA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management, SmartSlot, Extended runtime model, Rack Height 10U
Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails, User Manual
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC Symmetra
APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer
#SYH2K6RMT-P1
Our Price: $7,145.00
Our Price: $7,145.00
APC Symmetra RM 2-6kVA Battery Module
#SYBT2
Our Price: $1,175.00
Our Price: $1,175.00
More pricing below, click here!
The first UPS with redundancy and scalability within a single chassis.
Engineered to deliver the highest level of business continuity possible, Symmetra uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. Symmetra’s integrated manageability, and hot-swappable, user replaceable power, battery, and intelligence modules enable easy, fast maintenance and serviceability. Its 2-6kVA N+1 redundant rack-optimized form factor makes Symmetra ideal for protecting critical server racks and network rooms. Typical applications include Web and other key application servers, IP based and traditional PBX voice solutions, and enterprise type network switches.
Features & Benefits:
| Availability | |
| Modular design | Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. |
| Configurable for N+1 internal redundancy | Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load. |
| Redundant Intelligence Modules | Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions. |
| Hot-swappable intelligence modules | Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement. |
| Hot-swappable power modules | Ensures clean, uninterrupted power to protected equipment during Power Module replacement. |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Power Modules connected in parallel | Enhances availability by allowing immediate, seamless recovery from isolated module failures. |
| Battery modules connected in parallel | Delivers higher availability through redundant batteries. |
| Automatic internal bypass | Supplies utility power to the connected loads in the event of a UPS overload condition or fault. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Adaptability | |
| Scalable power capacity | Reduces UPS over-sizing costs today by allowing quick upgrades later. |
| Scalable runtime | Allows additional run time to be quickly added as needed. |
| Plug-and-Play external batteries | Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. |
| Field-replaceable power distribution panel | Ensures compatibility with equipment that has different plug types. |
| Programmable frequency | Ensures compatibility with different input frequencies. |
| Manageability | |
| Manageable external batteries | Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. |
| Network manageable | Provides remote management of the UPS over the network. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| LCD display | Alpha-Numeric Display which displays system parameters and alarms. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| SmartSlot | Customize UPS capabilities with management cards. |
| Serviceability | |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| User-replaceable intelligence modules | Enables simple upgrades and replacements of the Intelligence Modules. |
| User-replaceable power modules | Enables simple upgrades and replacements of the Power Modules. |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Protection | |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Frequency and voltage regulation | Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. |
| Input power factor correction | Minimizes installation costs by enabling the use of smaller generators and cabling. |
| Generator compatible | Ensures clean, uninterrupted power to the loads in the event of an extended power outage ; |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Resettable circuit breakers | Enables a quick recovery from overload events. |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here for APC Symmetra Runtime chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 1400 Watts / 2000 VA |
| Max Configurable Power | 4200 Watts / 6000 VA |
| Nominal Output Voltage | 120V, 208V |
| Output Voltage Note | Configurable for 120/208 or 120/240 output voltage |
| Efficiency at Full Load | 90% |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 57 - 63 Hz for 60 Hz nominal |
| Crest Factor | up to 5 : 1 |
| Waveform Type | Sine wave |
| Output Connections |  (12) NEMA 5-20R (2) NEMA L6-20R |
| Input | |
| Bypass | Internal Bypass (Automatic and Manual), Optional External Bypass |
| Nominal Input Voltage | 208V |
| Input Frequency | 45 - 65 Hz (auto sensing) |
| Input Connections | Hard Wire 3-wire (2PH + G) NEMA L6-30P (30A Twist-Lock) |
| Cord Length | 6 feet (1.83 meters) |
| Input voltage range for main operations | 155 - 276V |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Included Battery Modules | 1 |
| Available Battery Slots | 4 |
| Typical recharge time | 4 hour (s) |
| Replacement battery cartridge | SYBT2 Note: UPS accepts 1-2 battery packs |
| Typical Backup Time at Half Load | 28.4 minutes (700 Watts) |
| Typical Backup Time at Full Load | 12.3 minutes (1400 Watts) |
| Runtime Chart | Symmetra |
| Extended Run Options | APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management, SmartSlot |
| Available SmartSlot™ Interface Quantity | 1 |
| Pre-Installed SmartSlot™ Cards | AP9619 |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Physical | |
| Maximum Height | 17.50 inches (445 mm) |
| Maximum Width | 19.00 inches (483 mm) |
| Maximum Depth | 28.75 inches (730 mm) |
| Net Weight | 259.00 lbs. (117.73 kg) |
| Shipping Weight | 295.00 lbs. (134.09 kg) |
| Shipping Height | 20.00 inches (508 mm) |
| Shipping Width | 23.00 inches (584 mm) |
| Shipping Depth | 31.00 inches (787 mm) |
| Color | Black |
| Units per Pallet | -- |
| Rack Height | 10U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 60.00 dBA |
| Online Thermal Dissipation | 843.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | CSA,FCC Part 15 Class A,UL 1778 |
| Standard Warranty | 2 years repair or replace, optional on-site warranties available,optional extended warranties available |
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
