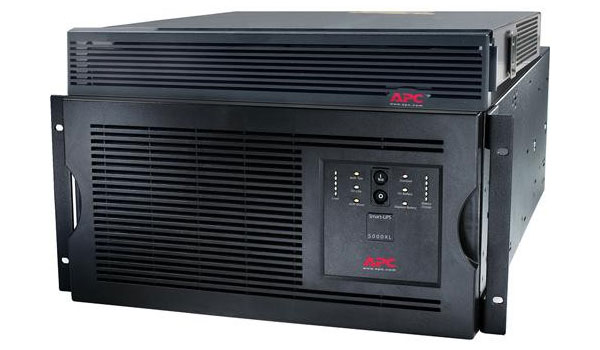

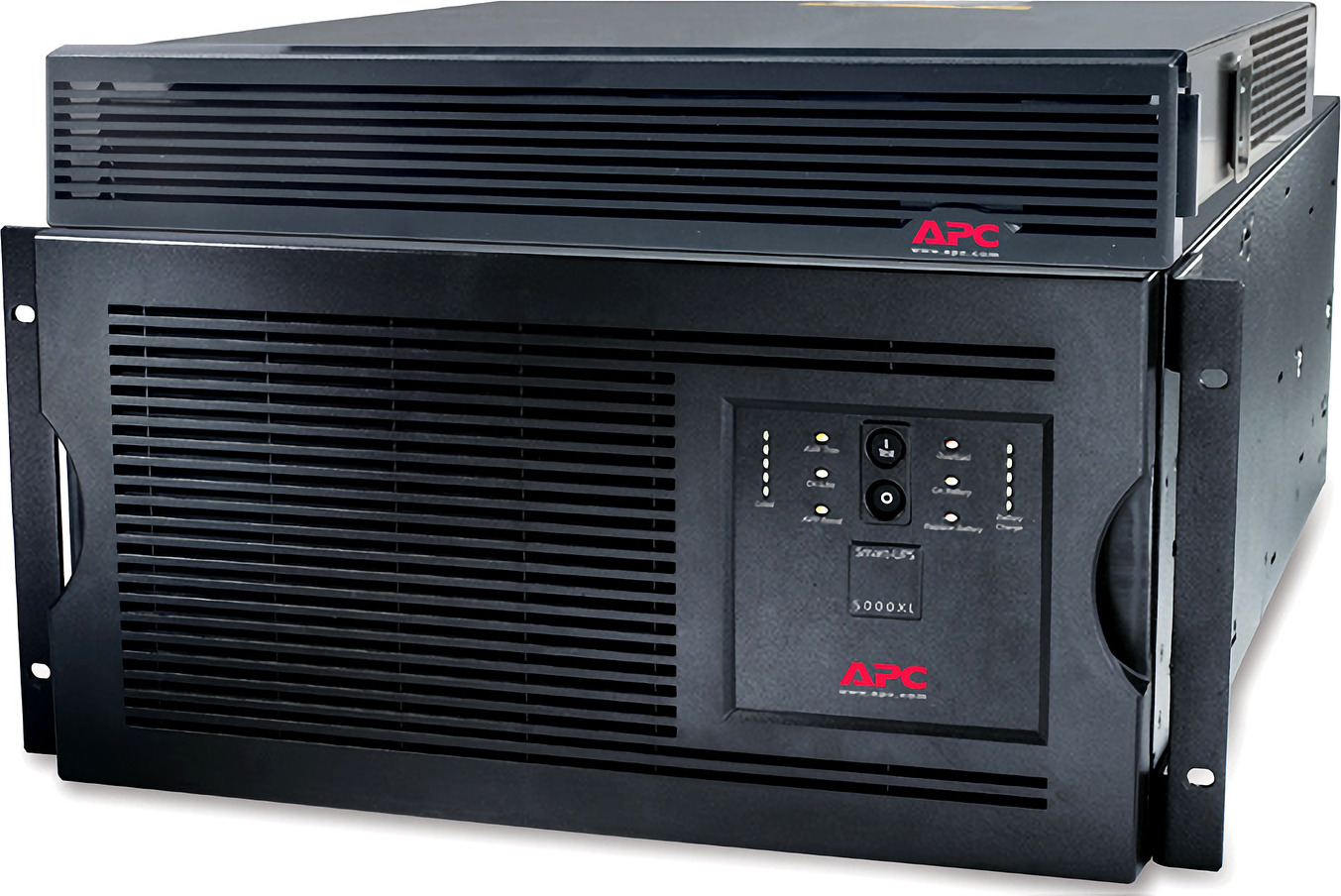

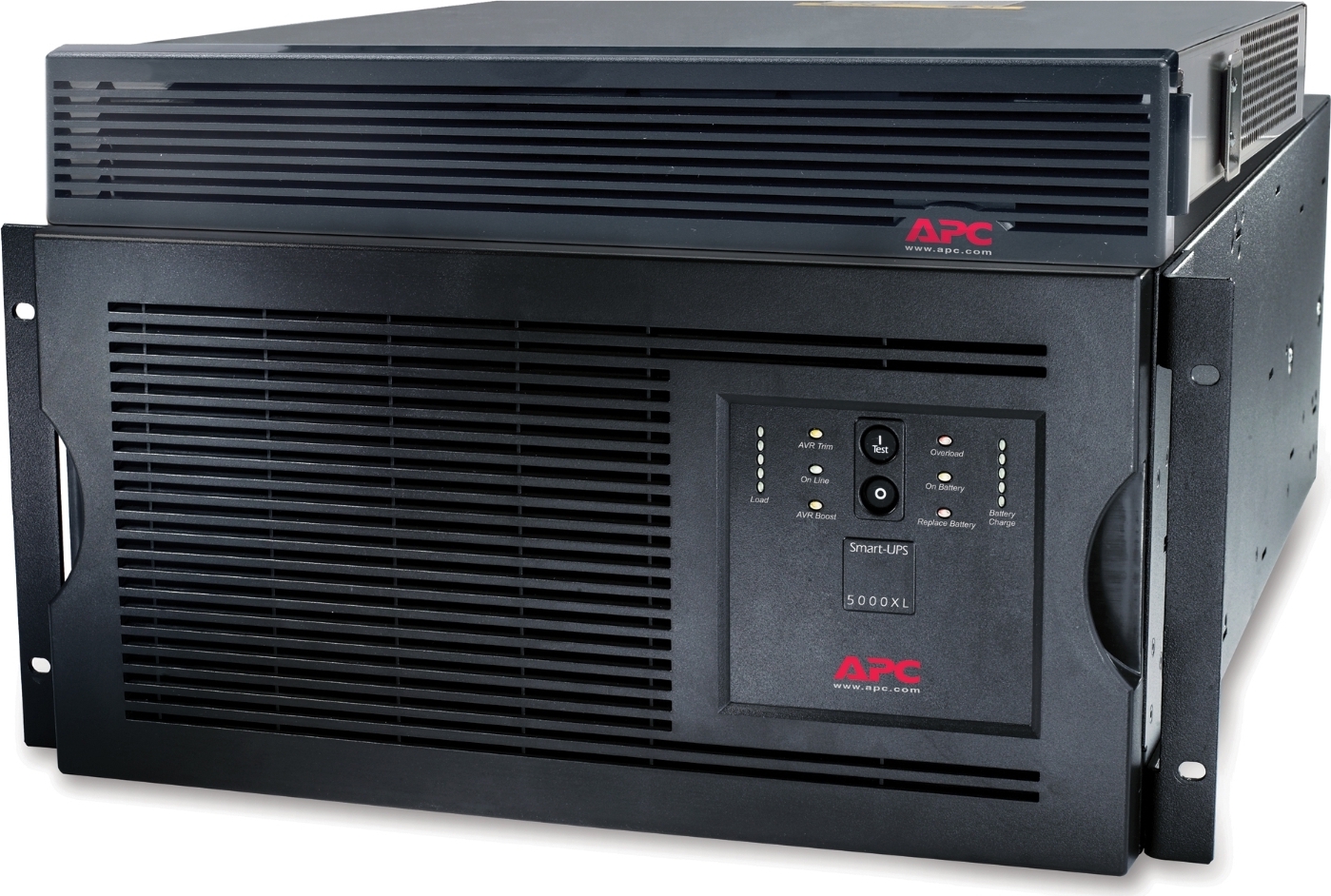

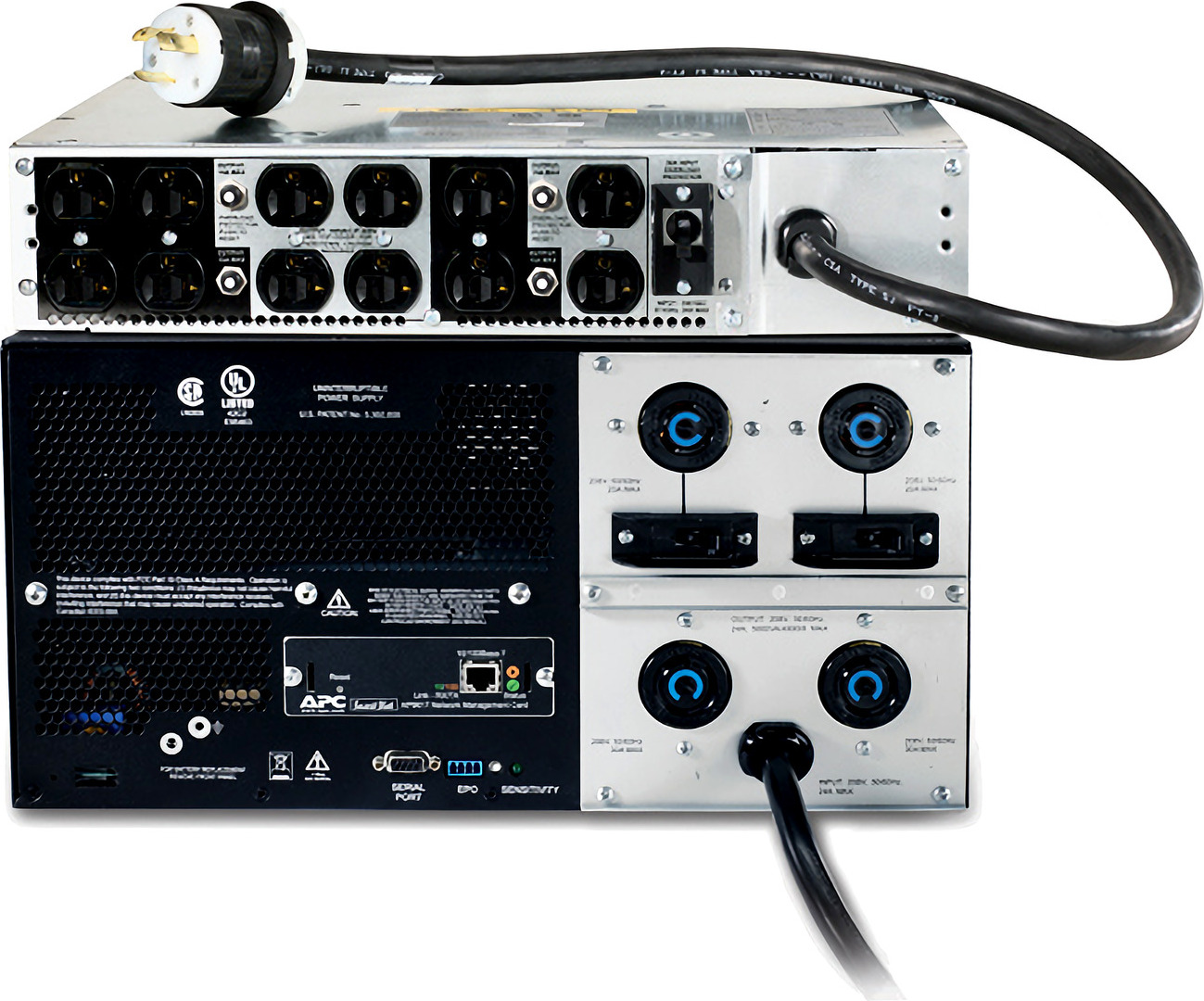

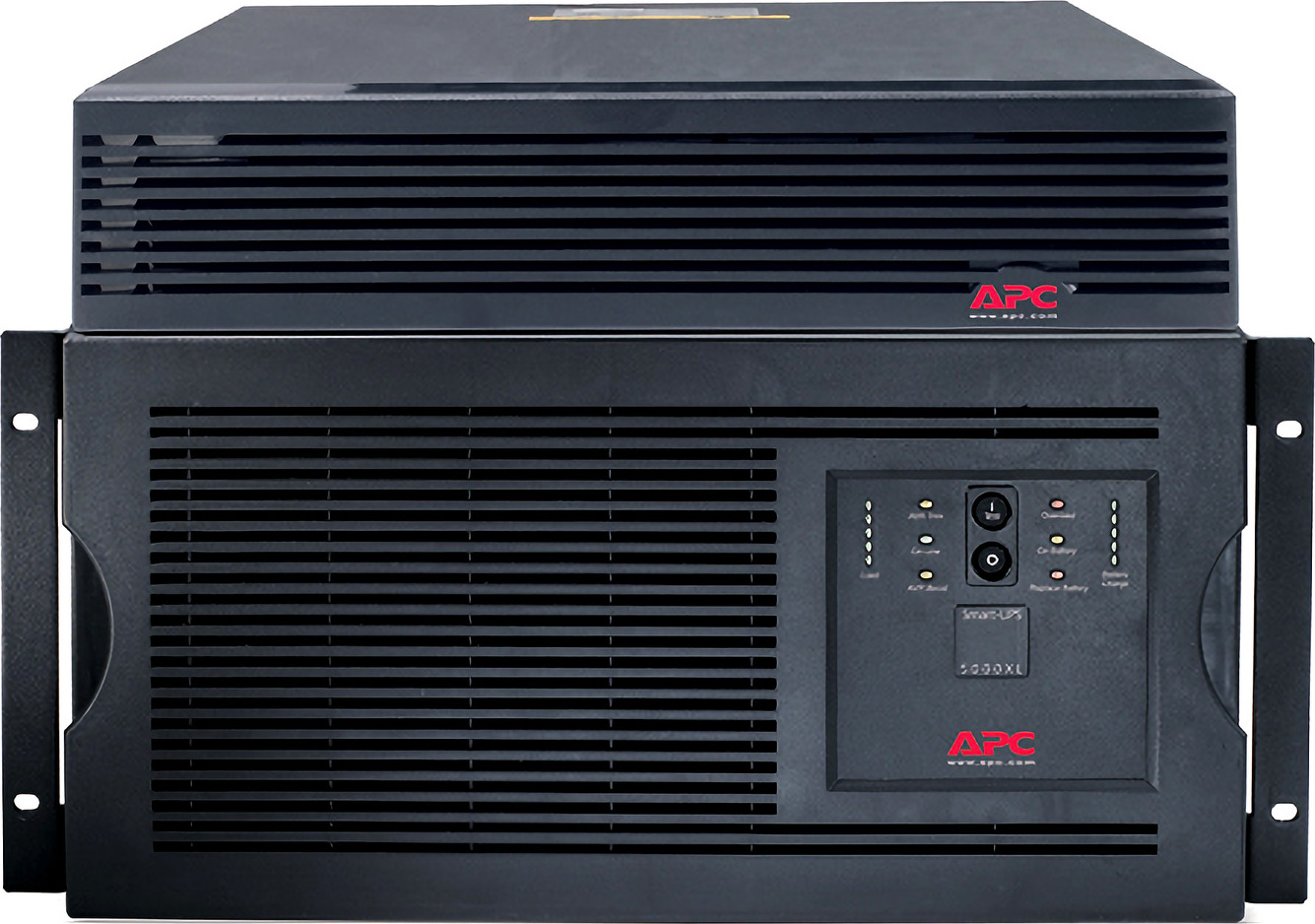

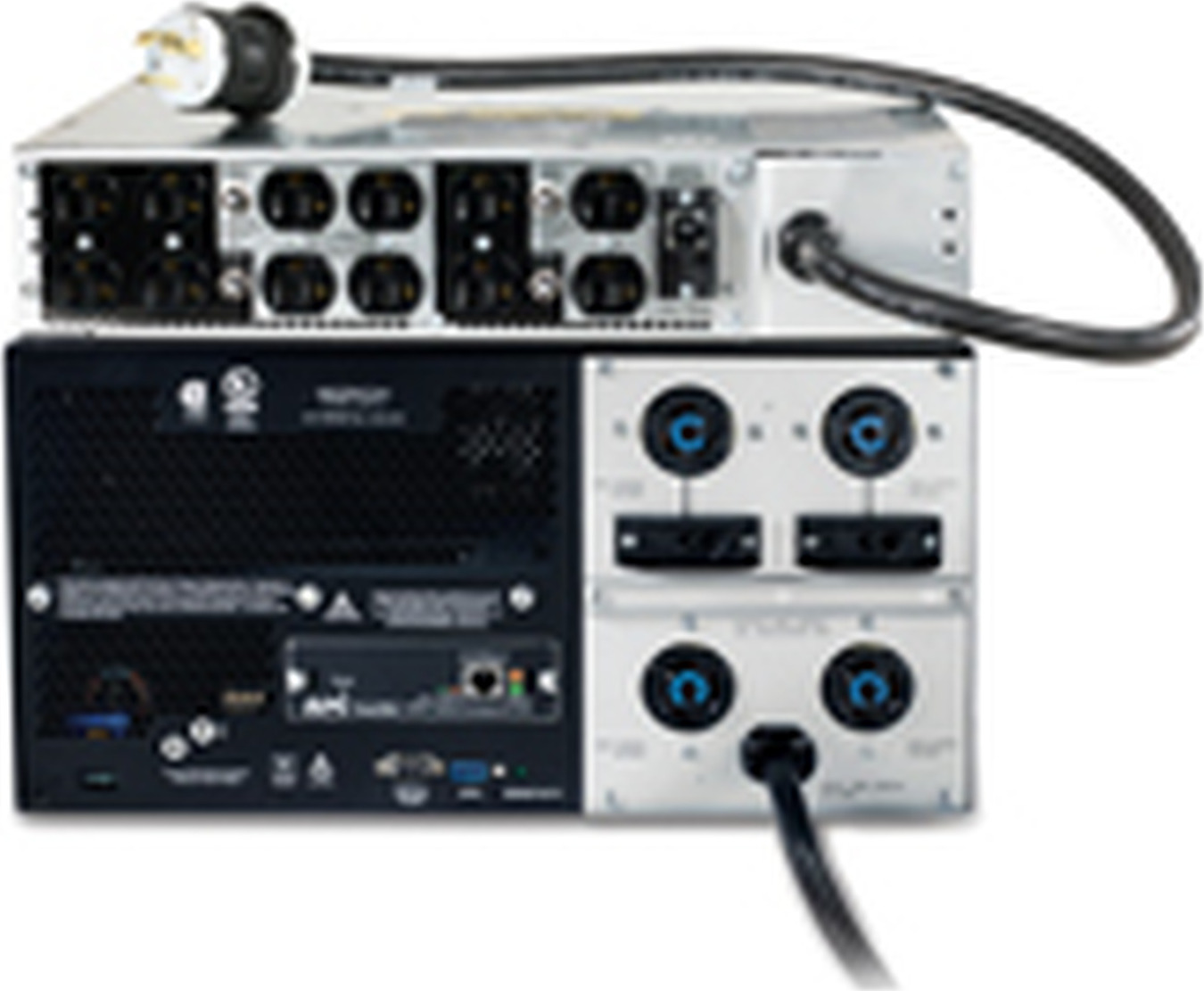

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
APC Smart-UPS, 4000 Watts / 5000 VA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management, SmartSlot, Rack Height 7U
Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC Smart-UPS
APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output
#SUA5000R5TXFMR
Our Price: $8,745.00
Our Price: $8,745.00
More pricing below, click here!
Over 10 million currently installed - the one you can trust
APC Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS® is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications.
Features & Benefits:
| Availability | |
| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Periodic battery self-test ensures early detection of a battery that needs to be replaced. |
| Cold-start capable | Provides temporary battery power when the utility power is out. |
| Generator compatible | Ensures clean, uninterrupted power to protected equipment when generator power is used. |
| Manageability | |
| Network manageable | Monitor and control the UPS remotely via included PowerChute software or APC Network Management Card (included in all models above 3kVA). |
| SmartSlot | Customize UPS capabilities with management cards. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Enables quick understanding and response to visual indicators showing UPS status. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| InfraStruXure Manager compatible | Enables centralized management via the APC InfraStruXure® Manager. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Adjustable voltage-transfer points | Saves battery power and helps extend battery life. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. |
Runtime Chart:
Click here to view the Smart-UPS Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 4000 Watts / 5000 VA |
| Max Configurable Power | 4000 Watts / 5000 VA |
| Nominal Output Voltage | 120V, 208V |
| Efficiency at Full Load | 95.00% |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
| Crest Factor | up to 5 : 1 |
| Waveform Type | Sine wave |
| Output Connections |  (2) NEMA 5-15R (12) NEMA 5-20R (2) NEMA L6-20R  (1) NEMA L6-30R |
| Input | |
| Nominal Input Voltage | 208V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections |  NEMA L6-30P |
| Cord Length | 8 feet (2.44 meters) |
| Input voltage range for main operations | 157 - 255V |
| Input voltage adjustable range for mains operation | 151 - 268V |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3 hour(s) |
| Replacement battery cartridge | RBC55 |
| RBC™ Quantity | 1 |
| Typical Backup Time at Half Load | 26.7 minutes (2000 Watts) |
| Typical Backup Time at Full Load | 9.4 minutes (4000 Watts) |
| Runtime Chart | Smart-UPS |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management, SmartSlot |
| Available SmartSlot™ Interface Quantity | 1 |
| Pre-Installed SmartSlot™ Cards | AP9617 |
| Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Optional |
| Surge Protection and Filtering | |
| Surge Energy Rating | 1020 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 12.25 inches (311 mm) |
| Maximum Width | 19.00 inches (483 mm) |
| Maximum Depth | 25.00 inches (635 mm) |
| Net Weight | 320.00 lbs. (145.45 kg) |
| Shipping Weight | 355.00 lbs. (161.36 kg) |
| Shipping Height | 25.00 inches (635 mm) |
| Shipping Width | 24.00 inches (610 mm) |
| Shipping Depth | 30.00 inches (762 mm) |
| Color | Black |
| Rack Height | 7U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 53.00 dBA |
| Online Thermal Dissipation | 1708.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | CSA,FCC Part 15 Class A,UL 1778 |
| Standard Warranty | 2 years repair or replace, optional on-site warranties available,optional extended warranties available |
| Equipment protection policy | Lifetime: $150,000 |
