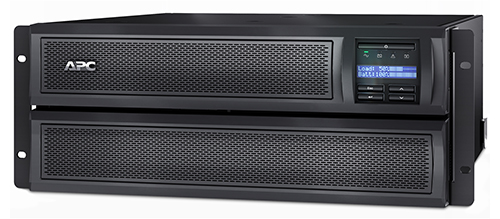

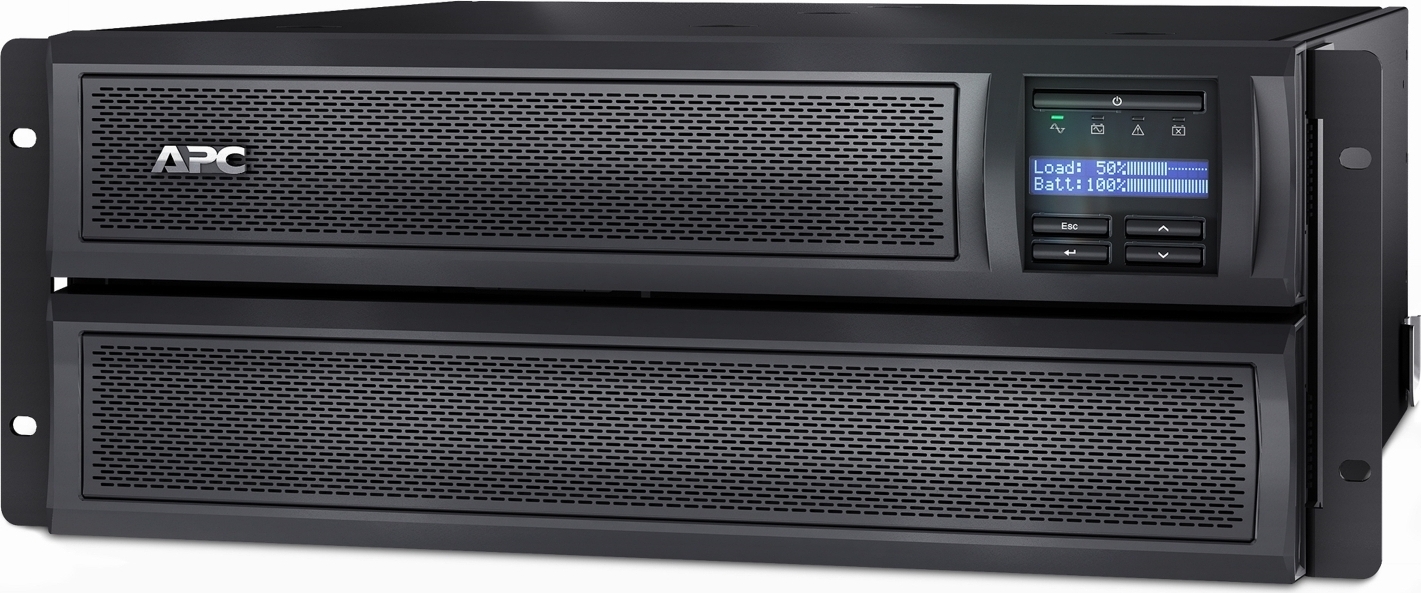

APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V
APC Smart-UPS, 2700 Watts /2880 VA, Input 120V /Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 4U

APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable

Looking for Better Pricing? Please Contact Us for help!

APC Products
APC Smart-UPS X
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V
#SMX3000LV
Our Price: $3,000.00
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
#SMX3000LVNC
Our Price: $3,920.00

More pricing below, click here!

Smart-UPS X Series

Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS's and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.

APC by Schneider Electric's Smart-UPS is the most popular uninterruptible power supply (UPS) in the world for servers and other network devices such as switches, routers workstations and point-of-sale devices. Available in either traditional tower, rack optimized, or extended run convertible form factor (750va-3000va). The world's most popular network and server UPS.

Trusted by millions to protect critical data and equipment from power problems its proven line interactive design supplies clean and reliable network-grade power over a wide range of utility conditions. Conditions include surges, spikes, brownouts, blackouts and other transient conditions that can cause costly downtime, data loss or hardware damage.

Smart-UPS are known for their intelligence, monitoring and control capability. Users can actively manage power to their critical devices using an intuitive and interactive display, through the supplied PowerChute Business edition software or remotely with optional network management cards that plug directly into the unit's Smart-slot interface.

Patent pending "green" mode provides optimum reliability and efficiency of > 97% which saves utility and cooling costs without compromising availability.

Advanced battery management provides Temperature compensated charging which extends life and advanced algorithms proactively recommend battery replacement date. In addition, Switched Outlet Groups can allow users to Reboot Hung devices, shed non-critical loads to conserve runtime, and set sequenced startup/turn off.

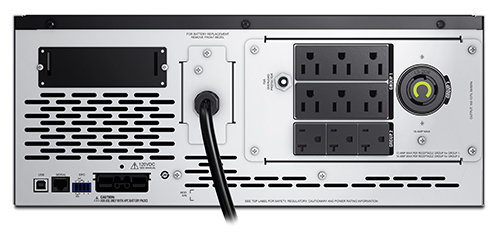

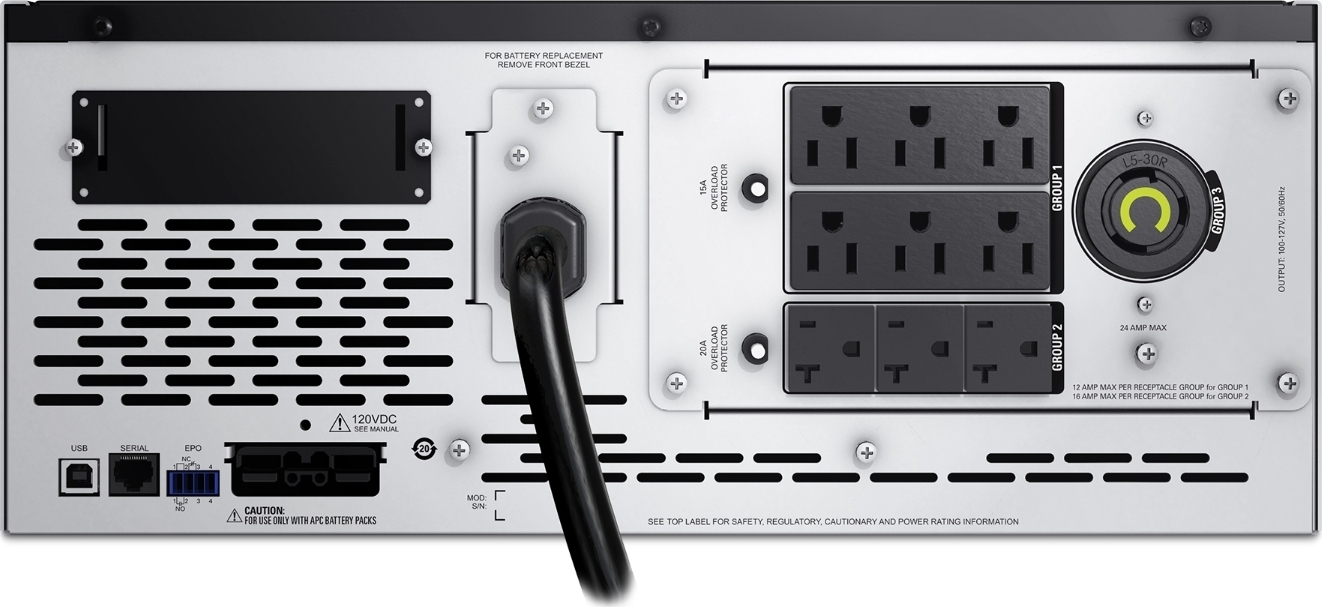

APC Smart-UPS X 3000VA Rear

  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • StruxureWare Central compatible - Enables centralized management via StruxureWare Central.
  • High online efficiency - Reduces utlility costs, generates less heat.
  • SmartSlot - Customize UPS capabilities with management cards.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Scalable runtime - Allows additional run time to be quickly added as needed.
  • Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.

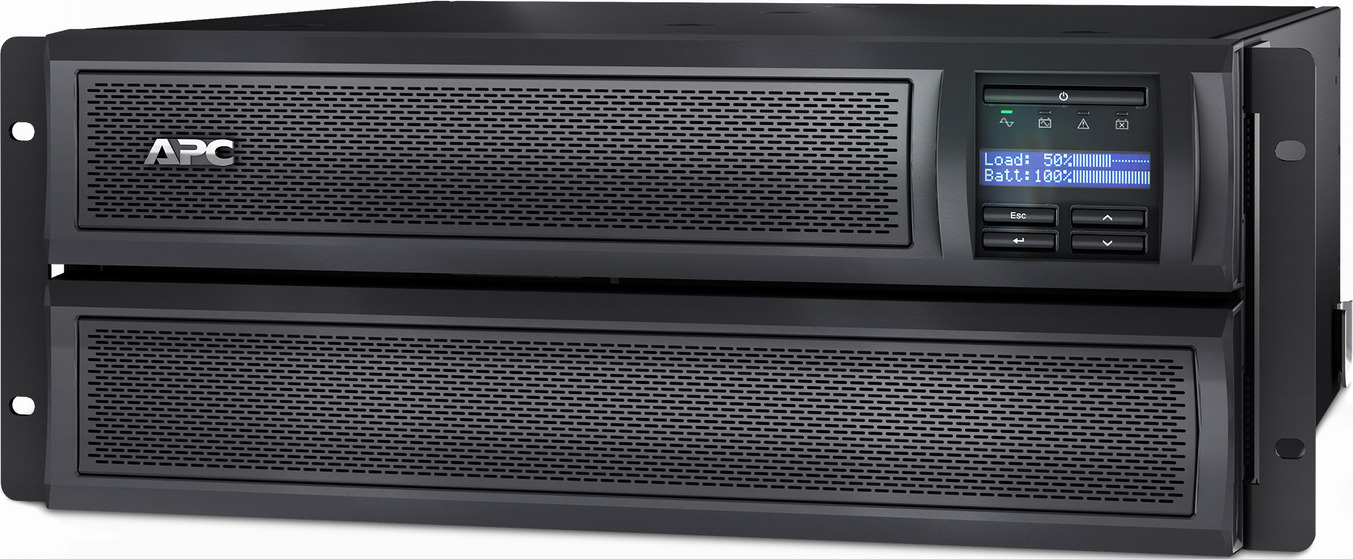

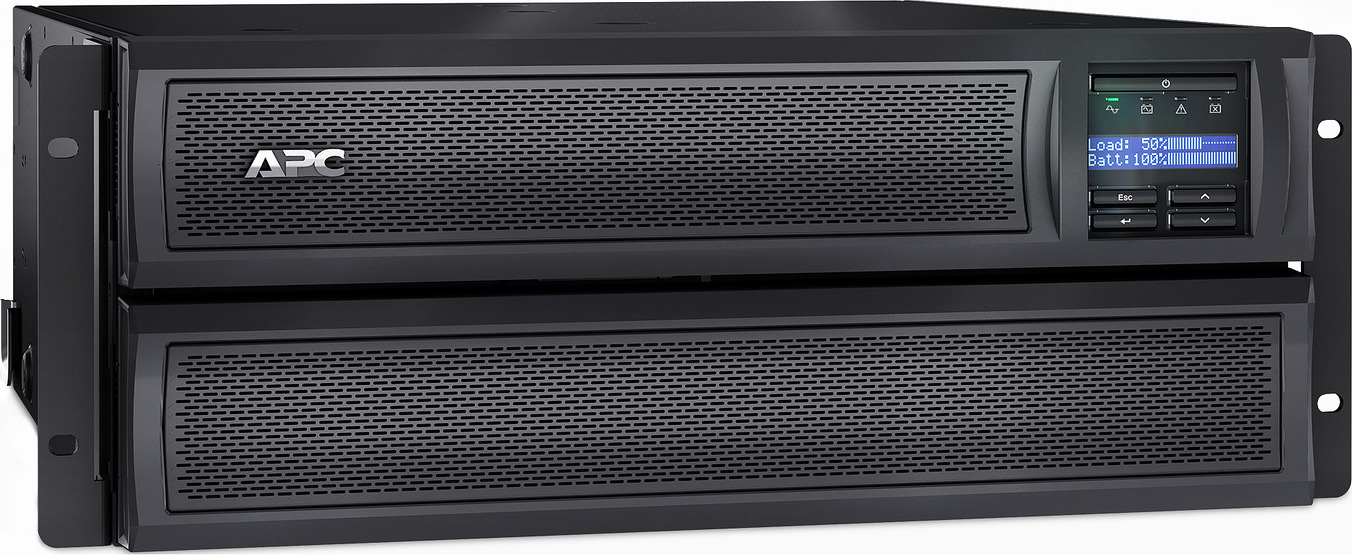

  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Sequenced network shutdown and reboot - Customize network shutdown and reboot sequence of connected servers and UPSs.

Features & Benefits:

Availability
Boost and Trim Automatic Voltage Regulation (AVR) Provides protection of connected equipment from power surges on the data lines.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Manageability
Network manageable Provides remote power management of the UPS over the network.
Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Quickly understand unit and power status with visual indicators.
Serial Connectivity Provides management of the UPS via a serial port.
USB connectivity Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables quick recovery from UPS overload events.
Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Product Views:

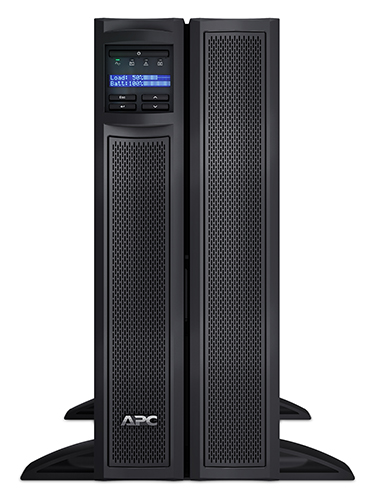

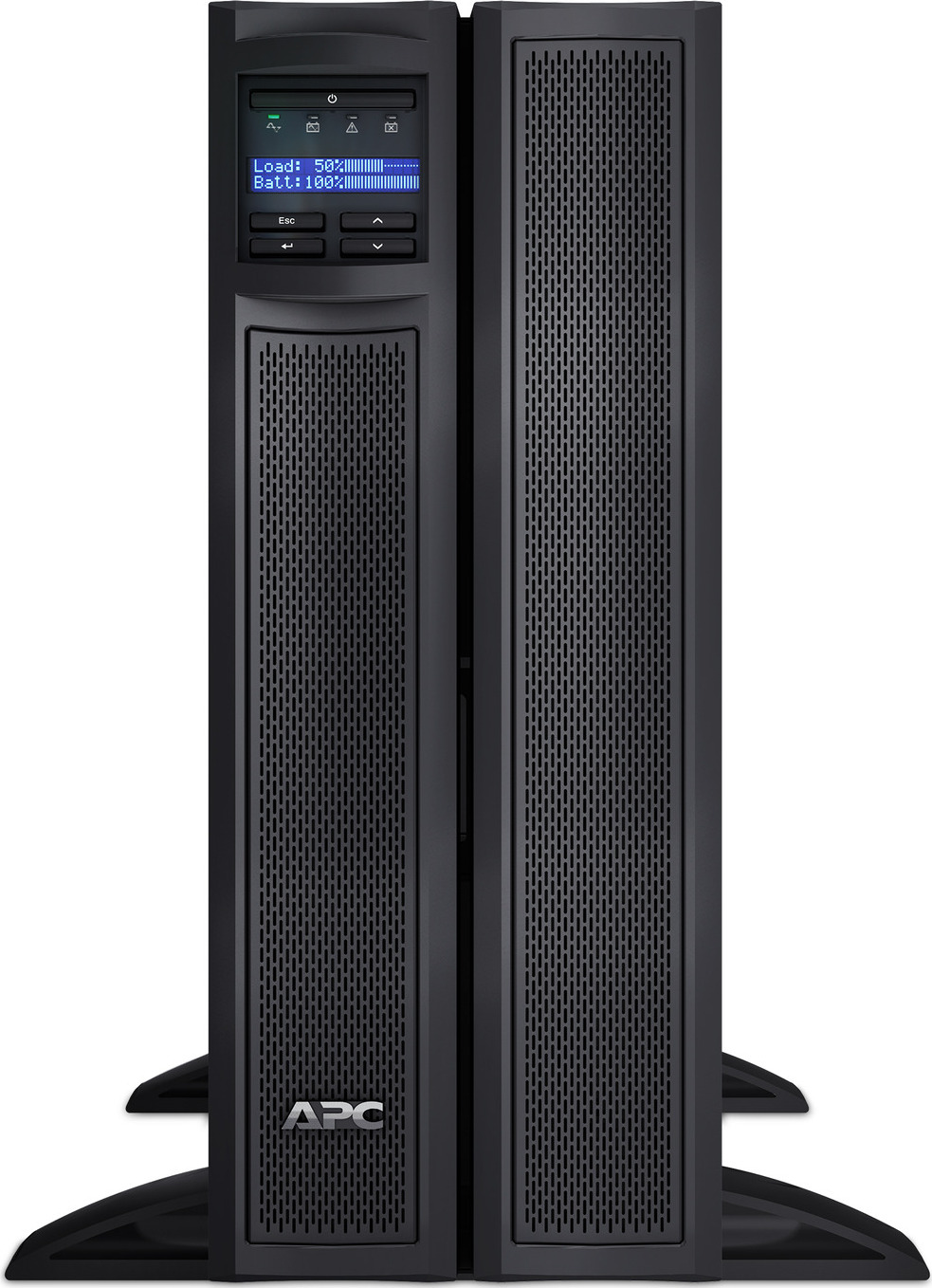

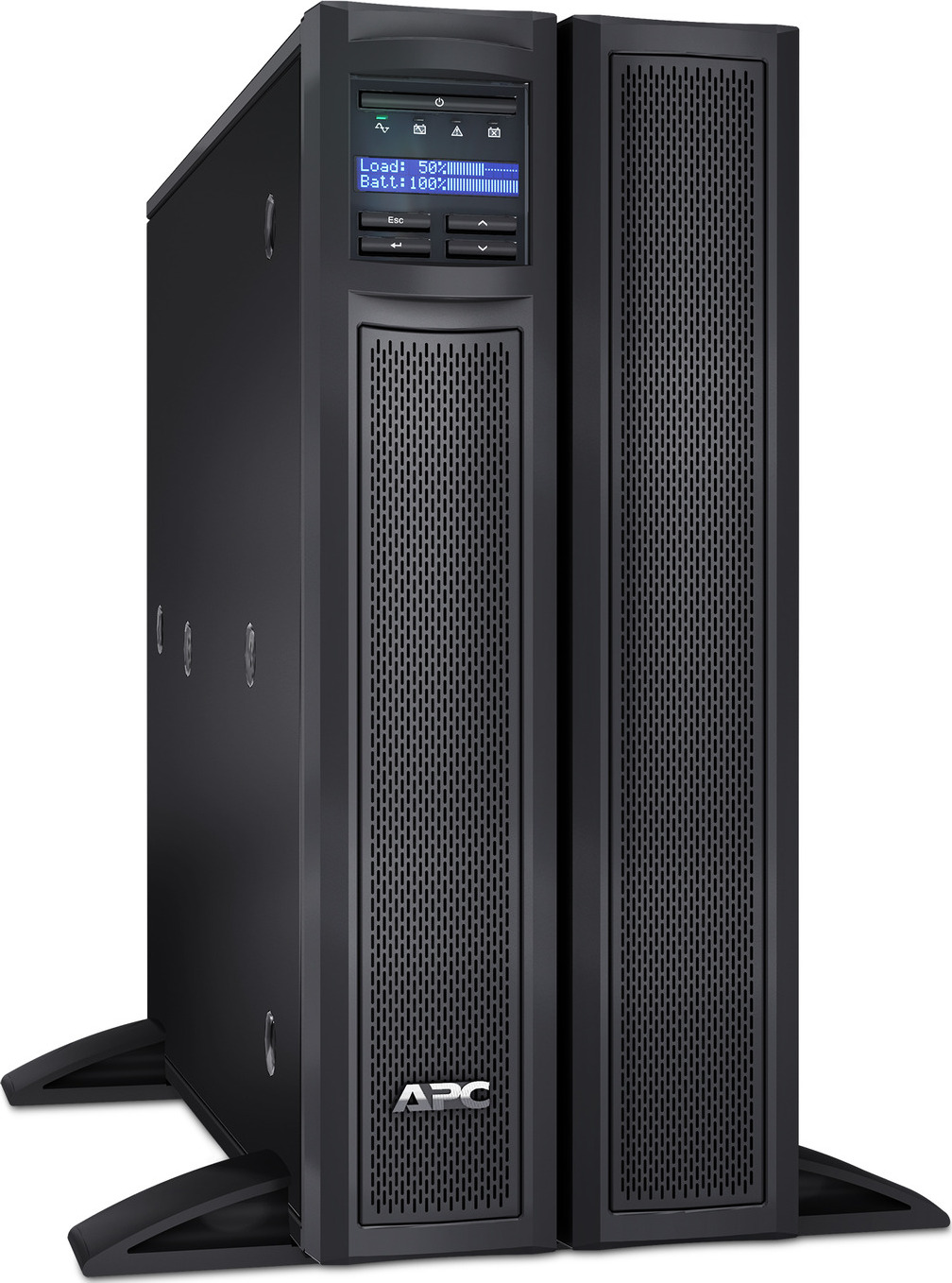

Front Stand View
Front Stand View

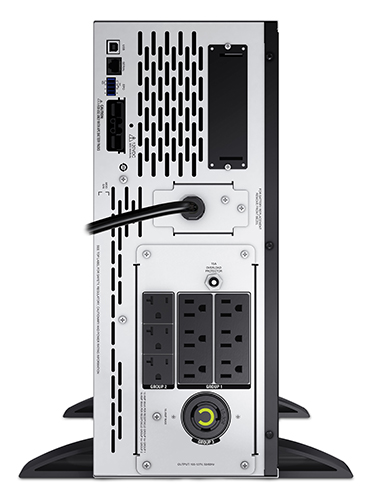

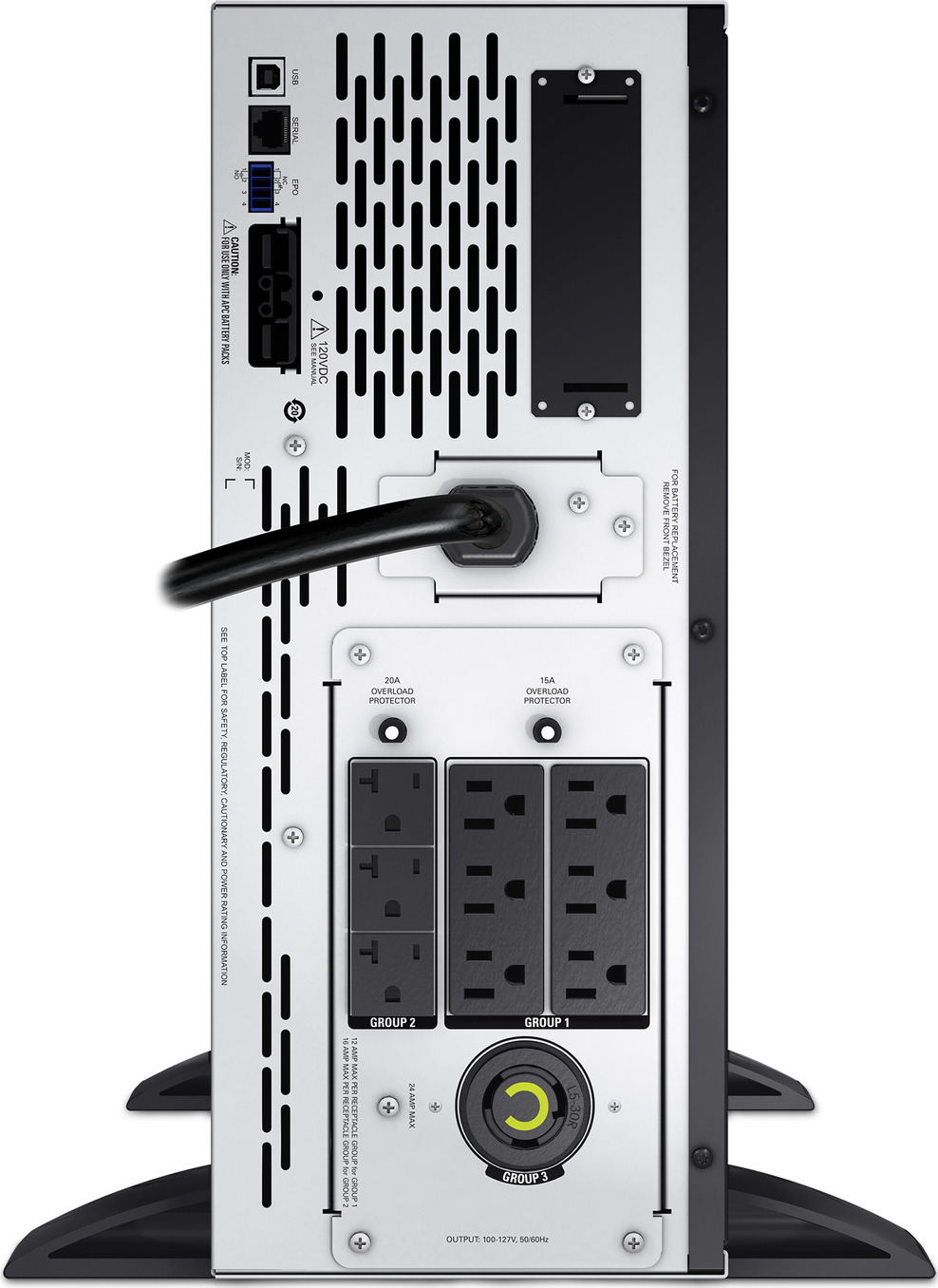

Rear Stand View
Rear Stand View

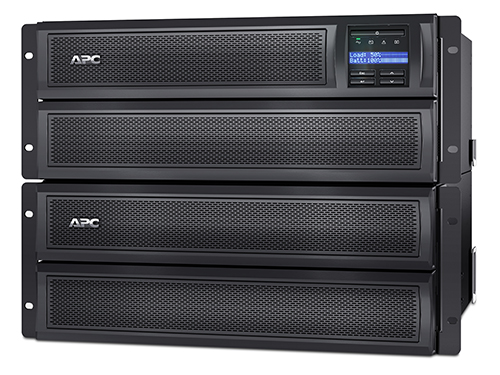

Applications
Applications

Runtime Chart:

Click here for APC Smart-Ups X Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity 2700 Watts / 2880 VA
Max Configurable Power 2700 Watts / 2880 VA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line Interactive
Waveform Type Sine wave
Output Connections NEMA 5-15R(6) NEMA 5-15R

NEMA 5-20R(3) NEMA 5-20R

NEMA L5-20R(1) NEMA L5-20R
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA L5-30PNEMA L5-30P
Cord Length 8 feet (2.44 meters)
Input voltage range for main operations 70 - 153V
Input voltage adjustable range for mains operation 75 - 154V
Transfer Time 2-4 ms
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time 3 hour(s)
RBC™ Quantity 1

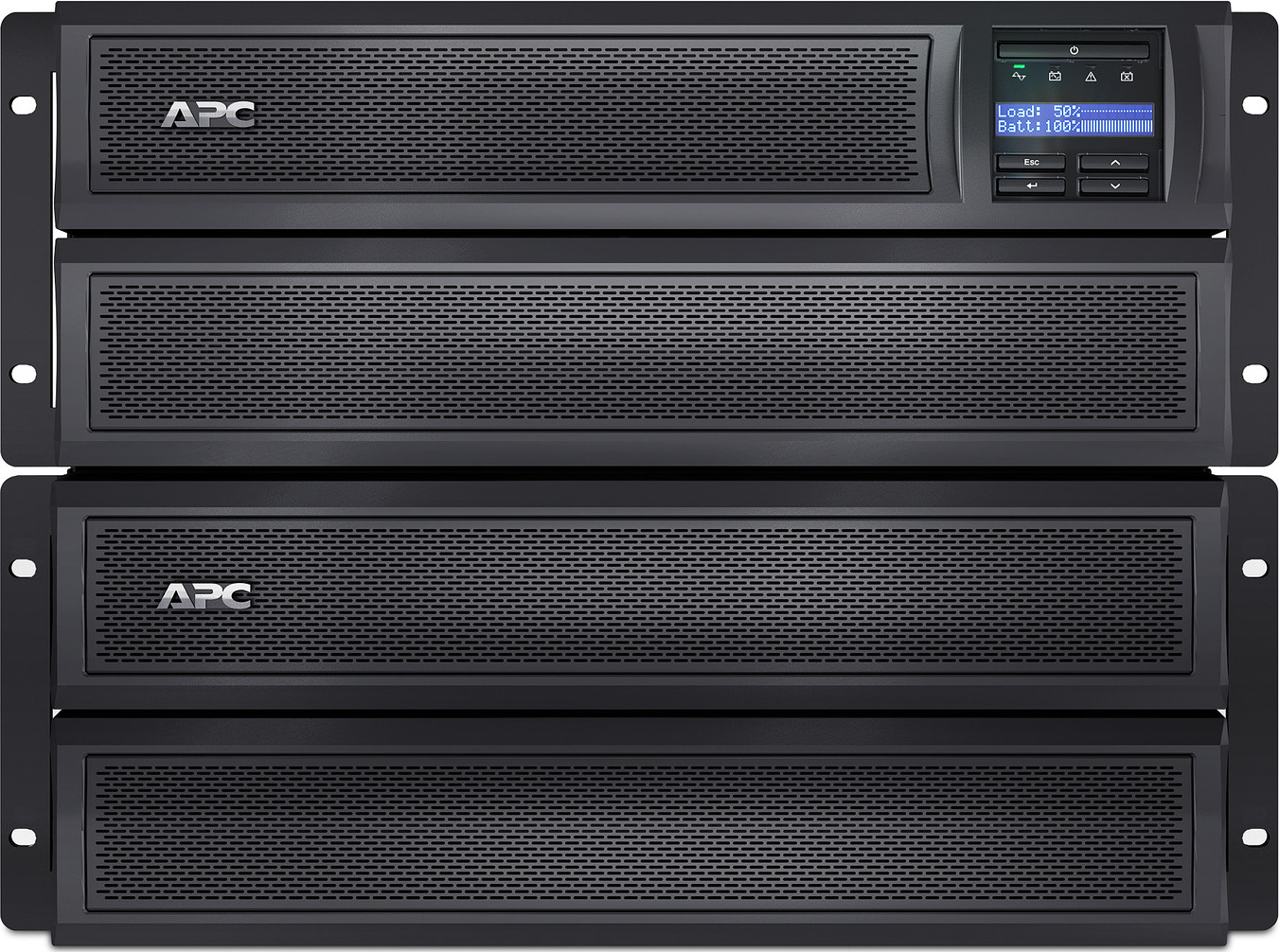

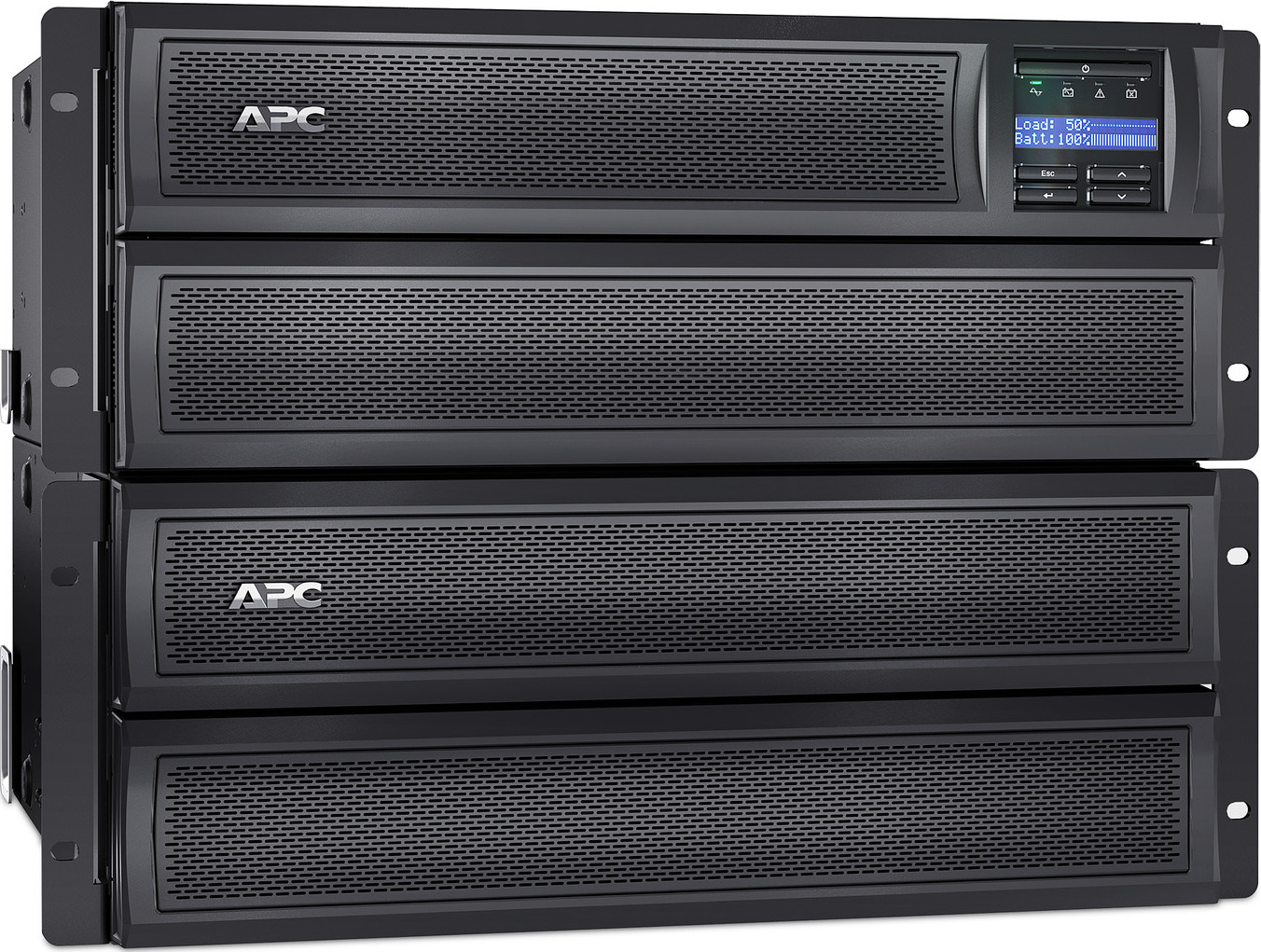

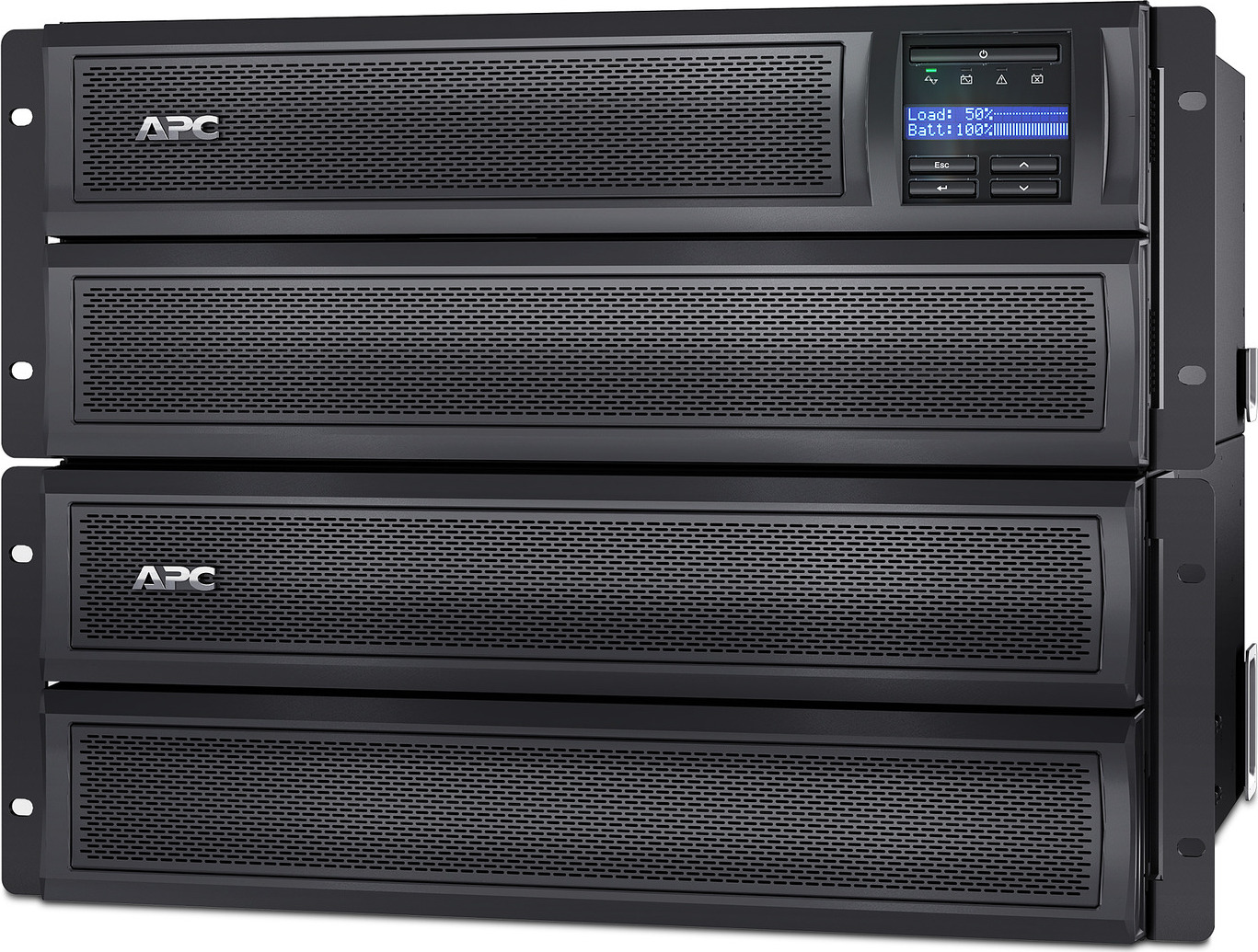

Extended Run Options APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V

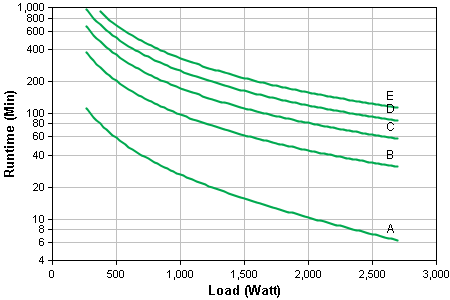

Runtime Graph

A: SMX3000LV
B: SMX3000LV + (1)SMX120BP
C: SMX3000LV + (2)SMX120BP
D: SMX3000LV + (3)SMX120BP
E: SMX3000LV + (4)SMX120BP

Runtime Graph

Hover over the line on the graph above to view the runtime at any desired load

 Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency
Load Efficiency
25% 95.6%
50% 97.4%
75% 97.7%
100% 97.7%

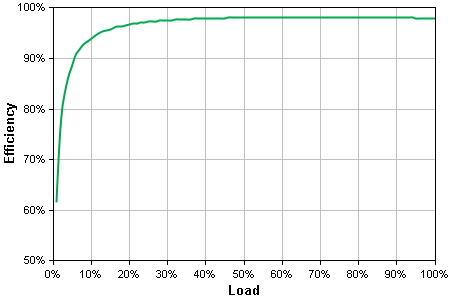

Energy Use/Efficiency

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management
Interface Port(s) SmartSlot
Available SmartSlot™ Interface Quantity 1
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) Yes
Surge Protection and Filtering
Surge Energy Rating 540 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection -
Physical
Maximum Height 17.00 inches (432 mm)
Maximum Width 7.00 inches (178 mm)
Maximum Depth 19.00 inches (483 mm)
Net Weight 85.00 lbs. (38.64 kg)
Shipping Weight 105.00 lbs. (47.73 kg)
Shipping Height 13.00 inches (330 mm)
Shipping Width 23.06 inches (586 mm)
Shipping Depth 24.94 inches (633 mm)
Color Black
Units per Pallet 6.00
Pallet Dimensions 39.37 inches
# of Layers per Pallet 4
# of Units per Layer per Pallet 2
Pallet Weight 855.12 lbs. (388.69 kg)
Rack Height 4U
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 55.00 dBA
Online Thermal Dissipation 276.00 BTU/hr
Conformance
Regulatory Approvals BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Standard Warranty 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
Equipment protection policy Lifetime: $150,000
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs

*Except where noted, all prices are Estimated Resale Price (ERP) - Without Tax/VAT. Pricing in other locations and sites may vary.
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
