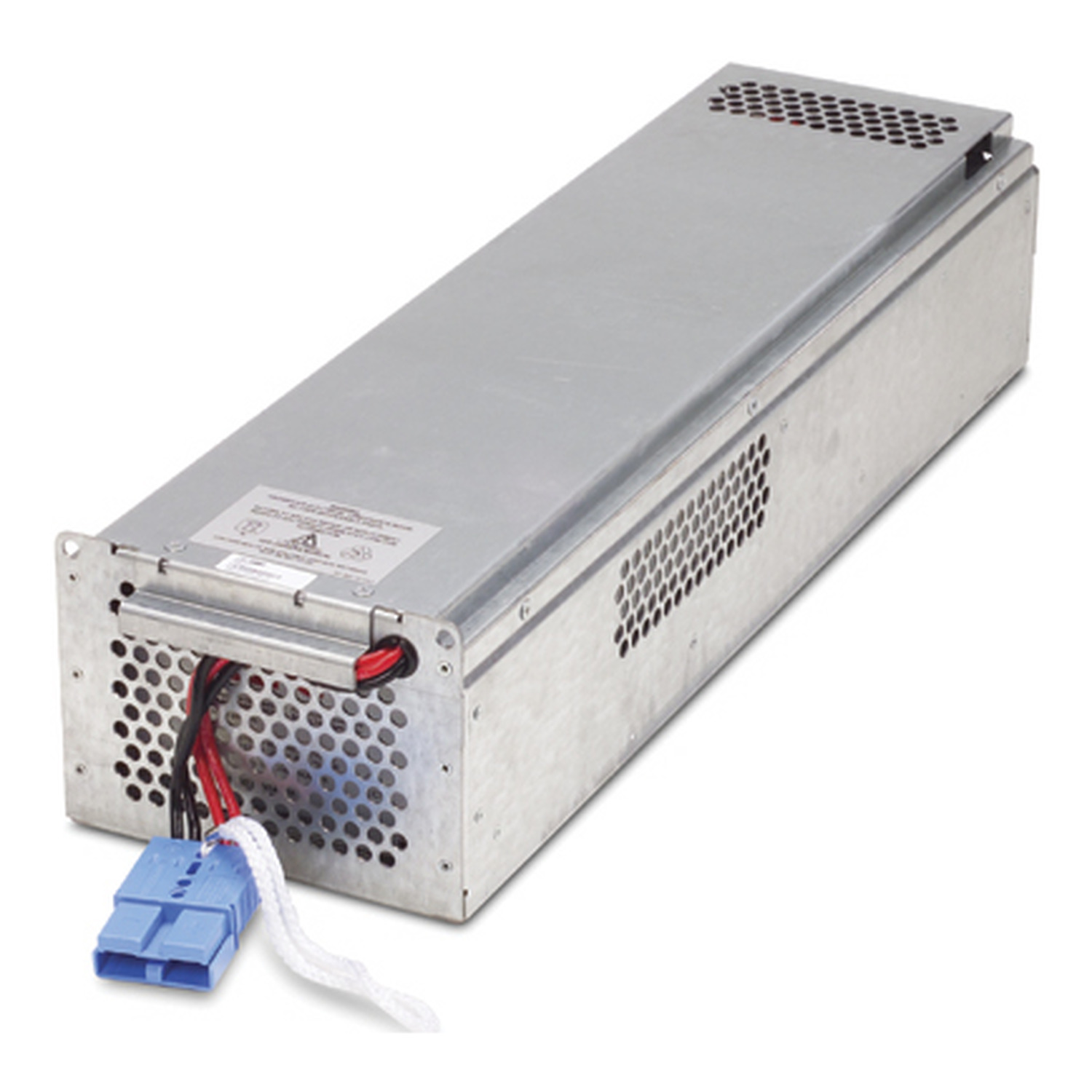

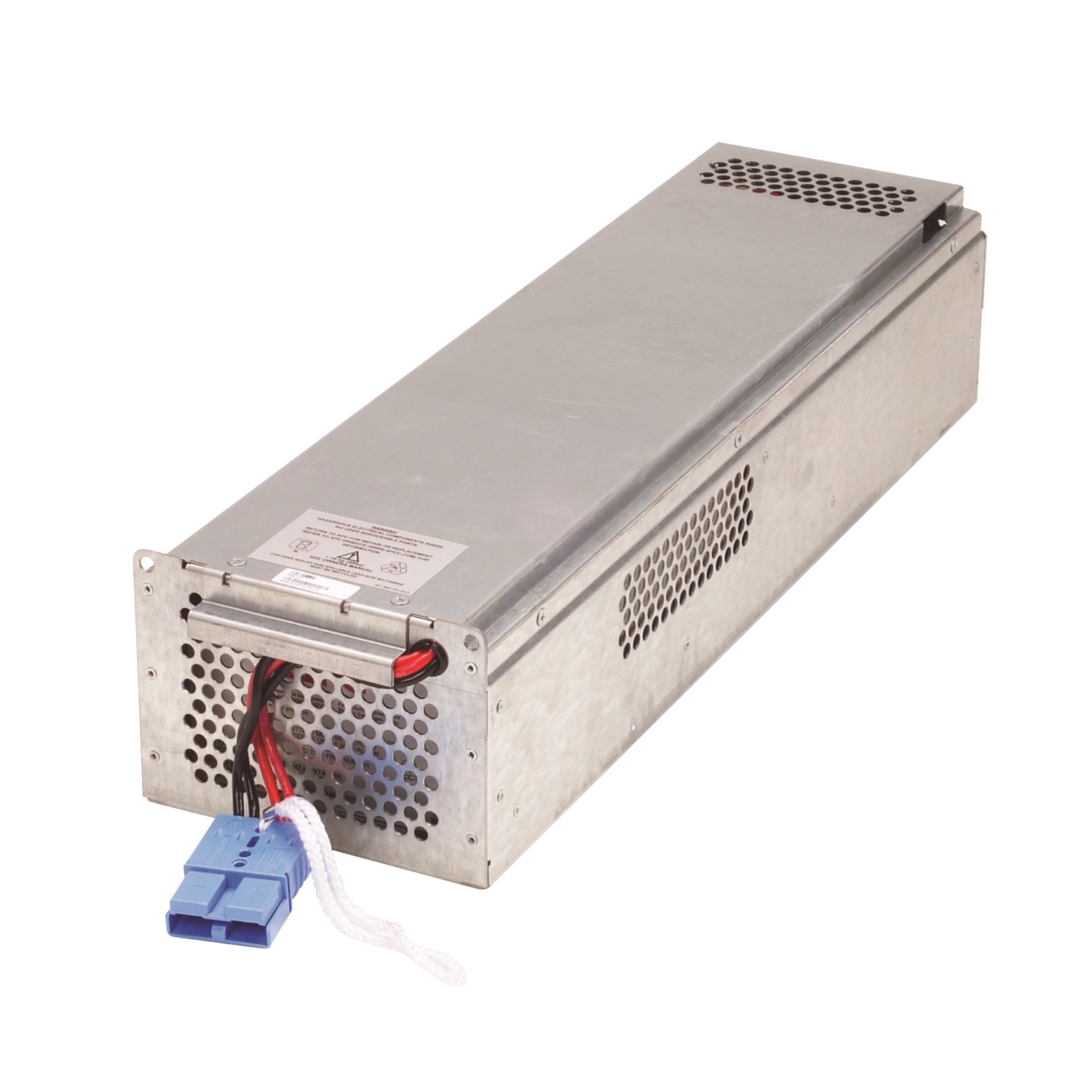

APC Replacement Battery Cartridge #27
Best Value Battery Replacements
Looking for Better Pricing? Please Contact Us for help!
APC Products
APC Replacement Battery Cartridges
Models Supported: SU2200RMXL3U, SU2200RMXLI3U, SU3000RMXL3U, SU3000RMXLI3U, SU48R3XLBP, SU48RMXLBP3U
Includes: All required connectors, Battery recycling guide, Installation guide, Metallic battery tray or enclosure, Reusable packaging
Technical Specifications:
| Batteries & Runtime | |
| Battery Volt-Amp-Hour Capacity | 864 |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Battery mounting | Enclosed battery cartridge |
| Battery manufacturer | Panasonic |
| Expected Battery Life (years) | 3 - 5 |
| RBC™ Quantity | 1 |
| Replacement battery cartridge note | The SU48R3XLBP requires two(2) RBC27's. |
| Physical | |
| Net Weight | 54.00 lbs. (24.55 kg) |
| Maximum Height | 4.25 inches (108 mm) |
| Maximum Width | 6.50 inches (165 mm) |
| Maximum Depth | 22.50 inches (572 mm) |
| Shipping Weight | 58.00 lbs. (26.36 kg) |
| Shipping Height | 11.00 inches (279 mm) |
| Shipping Width | 12.25 inches (311 mm) |
| Shipping Depth | 29.00 inches (737 mm) |
| Units per Pallet | 24.00 |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 23 - 113°F (-5 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Conformance | |
| Standard Warranty | 1 years repair or replace |
